Product

Premium Quality Replacement Part
Engine Intake & Exhaust Valve Kit
For Kawasaki Models:
ATV
KLT200A4A Duckster 1983
KLT200 1983-1984
KLT200A 1983
KLT250A 1983
KLT250 Prairie Police 1983-1985
Bayou 300 KLF300 4×4 1986-2005
Lakota 300 KEF300A 1995-2000
Lakota 300 KEF300B Sport 2001-2003
Motorcycle
KLR250 1983-1984
250 LTD KZ250W Belt 1983
Order Includes:

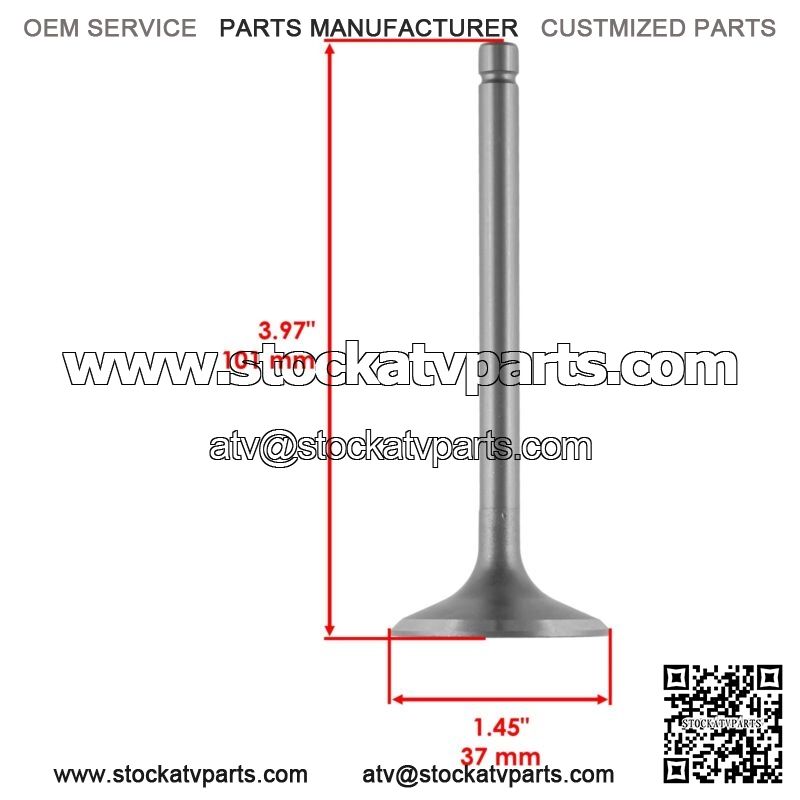

1 x Intake Valve | 12004-1123 12004-1006 120041123 120041006
Length: 101 mm | 3.97″
Diameter: 37 mm | 1.45″

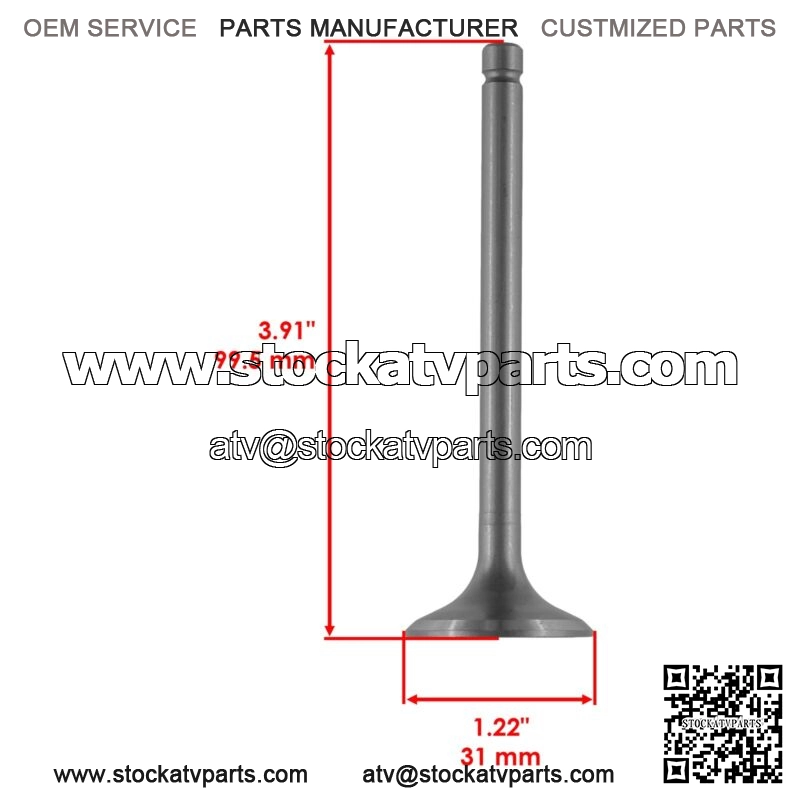

1 x Exhaust Valve | 12005-1005 120051005
Length: 99.5 mm | 3.91″
Diameter: 31 mm | 1.22″

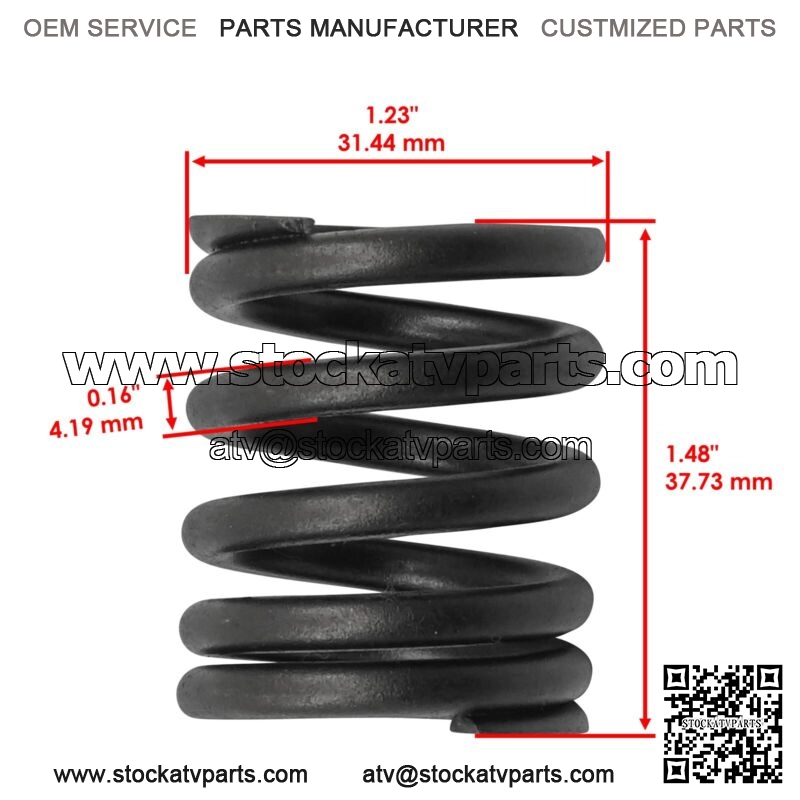

2 x Outer Valve Spring | 12007-013 12007013
Width: 31.44 mm | 1.23″
Height: 37.73 mm | 1.48″
Thickness: 4.19 mm | 0.16″
2 x Inner Valve Spring | 12007-014 12007014
Width: 22.05 mm | 0.86″
Height: 32.86 mm | 1.29″
Thickness: 3.09 mm | 0.12″
2 x Valve Stem Seal | 92049-016 92049016
Length: 14 mm | 0.55″
Width: 9 mm | 0.35″
Inner Diameter: 6.6 mm | 0.25″
Outer Diameter: 10.5 mm | 0.41″
4 x Valve Cotter | 12011-004 12011004
Width: 4.5 mm | 0.17″
Length: 10.4 mm | 0.41″
Height: 9.5 mm | 0.37″
**
