Product: 12005-0047 12004-0717 49078-0014 Exhaust & Intake Valve Kit For Kawasaki

Premium Quality Replacement Part
Engine Exhaust & Intake Valve Kit
For Kawasaki Models:
Brute Force 650 KVF650 4×4 2005-2013
KFX700 2005-2009 2006 aranc IG
Brute Force 750 KVF750 4x4i 2005-2023
Teryx 750 KRF750 4×4 2008-2013
Teryx4 750 KRT750 4×4 2012-2013
Teryx4 800 KRT800 4×4 2014-2023
Teryx 800 KRF800 2014-2023
Prairie 700 KVF700 4×4 2005-2007

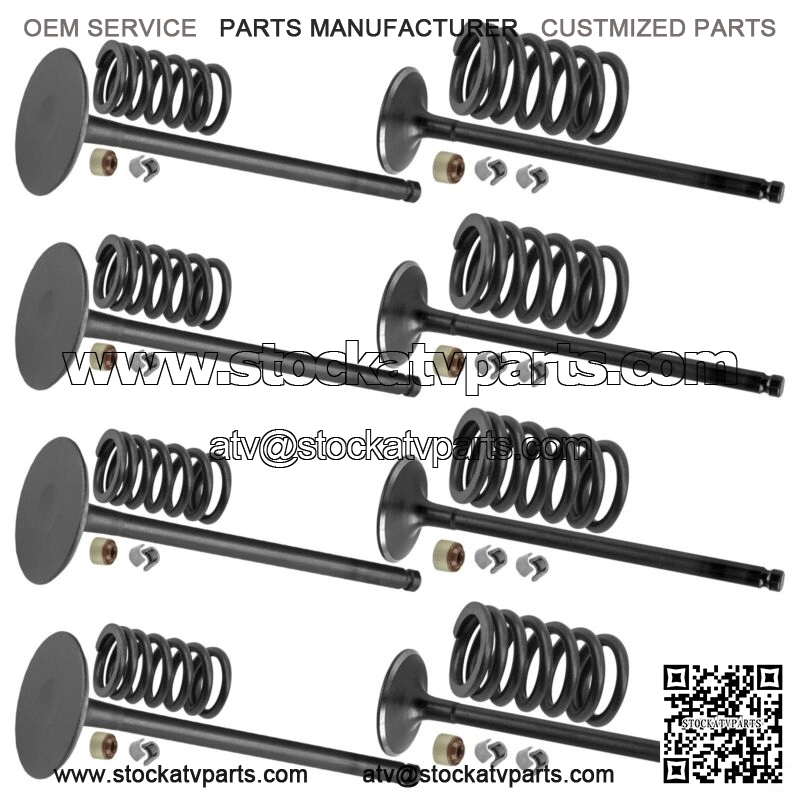

Order Includes:

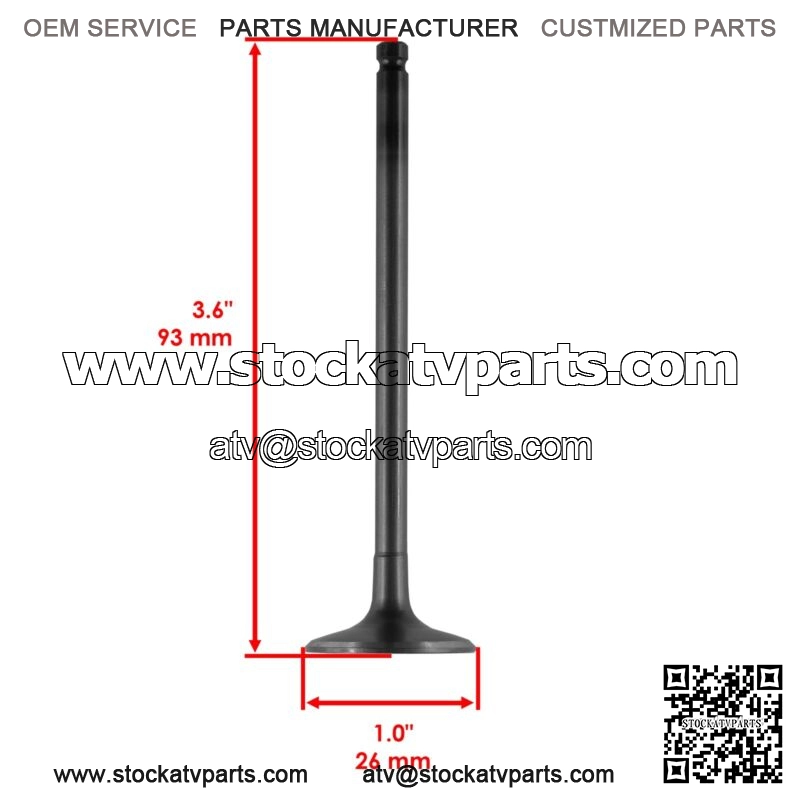

4 x Exhaust Valve | 12005-0047 12005-0016 12005-0040 12005-1298 12005-1349 120050047 120050016 120050040 120051298 120051349
Length: 93 mm | 3.6″
Diameter: 26 mm | 1.0″

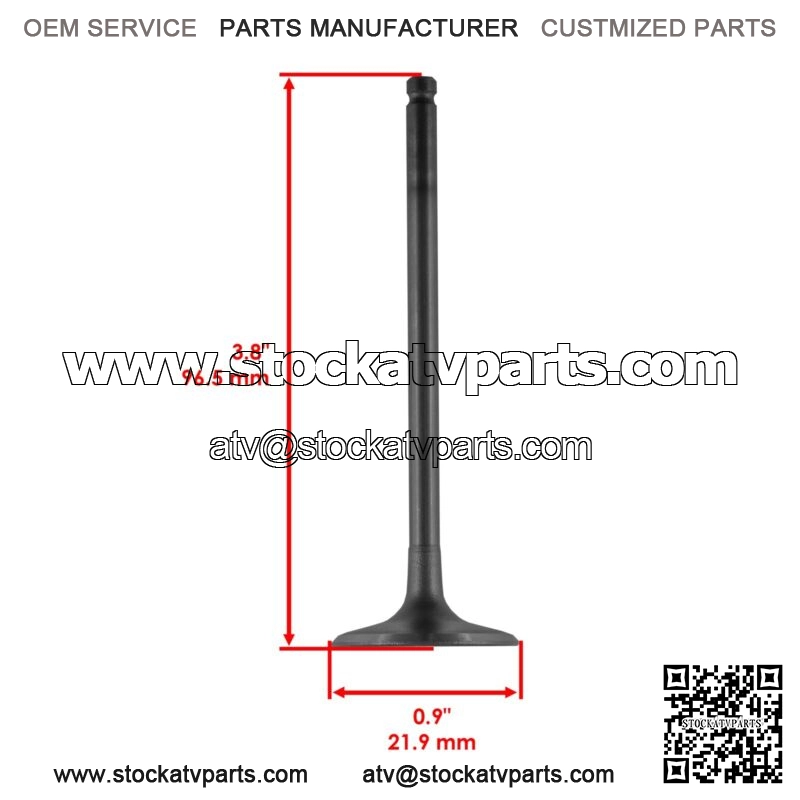

4 x Intake Valve | 12004-0717 12004-0007 12004-1146 12004-0048120040717 120040007 120041146 120040048
Length: 96.5 mm | 3.8″
Diameter: 21.9 mm | 0.9″

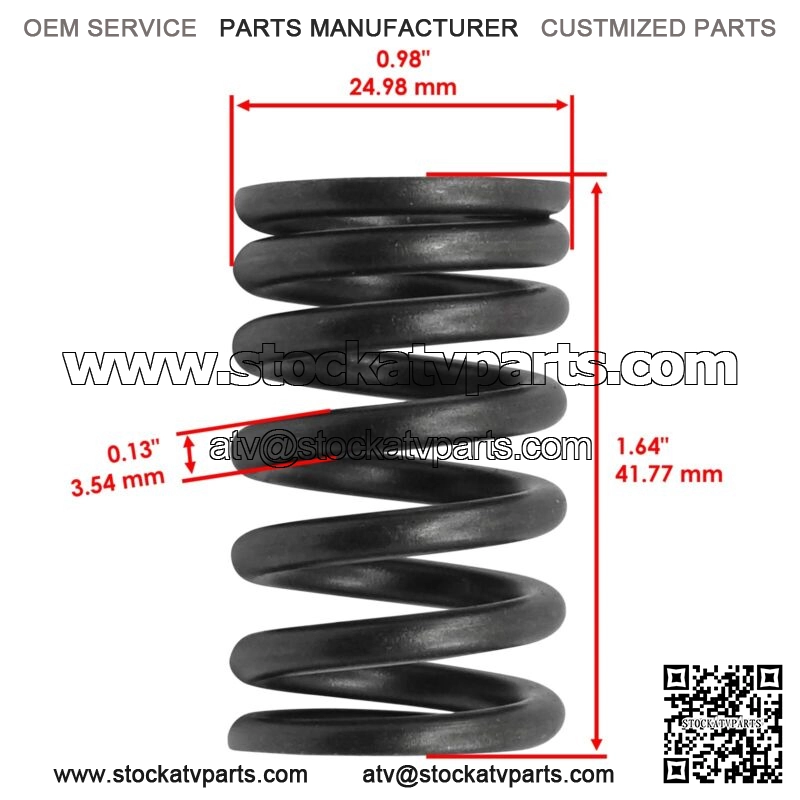

8 x Valve Spring | 49078-0014 490780014
Width: 24.98 mm | 0.98″
Height: 41.77 mm | 1.64″
Thickness: 3.54 mm | 0.13″

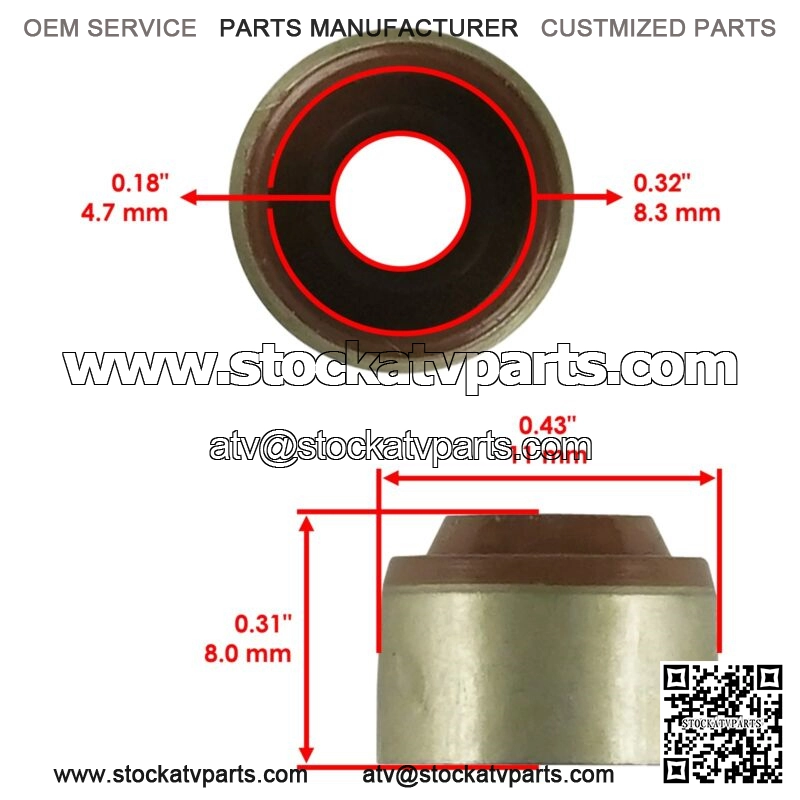

8 x Valve Stem Seal | 92049-1218 920491218
Length: 11 mm | 0.43″
Width: 8 mm | 0.31″
Inner Diameter: 4.7 mm | 0.18″
Outer Diameter: 8.3 mm | 0.32″
16 x Valve Cotter | 12011-1051 120111051
Width: 3.55 mm | 0.13″
Length: 8.16 mm | 0.32″
Height: 6.33 mm | 0.24″
**
