Product: 12005-1093 120051093 12007-1002 12011-1003 Exhaust ValveKit For Kawasaki

Premium Quality Replacement Part
Engine Exhaust Valve Kit
For Kawasaki Models:
Bayou 220 KLF220A 1988-2002
Bayou 250 KLF250A 2003-2011

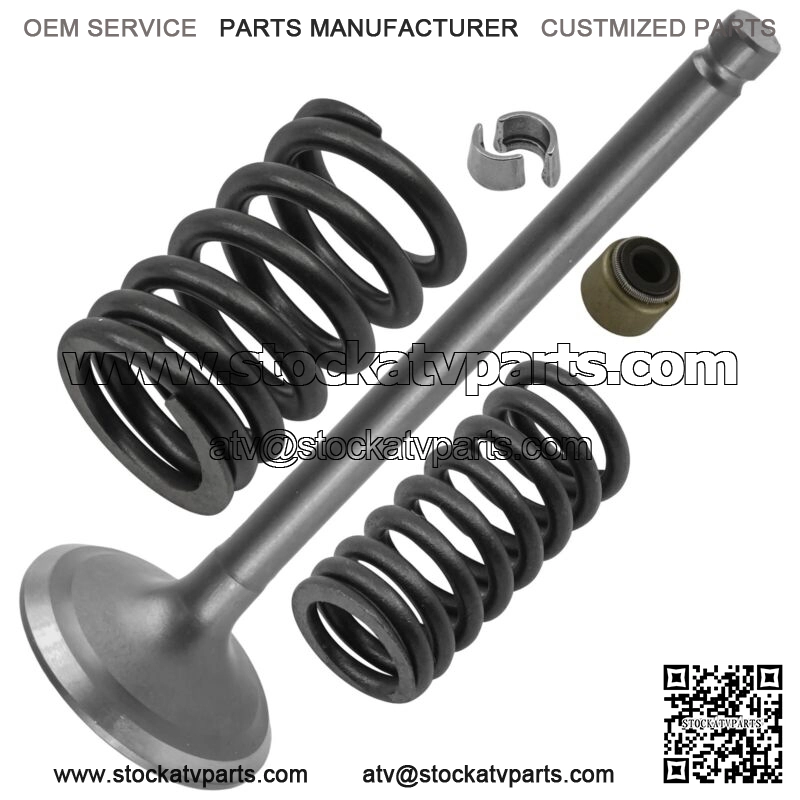

Order Includes:
1 x Exhaust Valve | 12005-1093 120051093
Length: 86 mm | 3.38″
Diameter: 28 mm | 1.10″

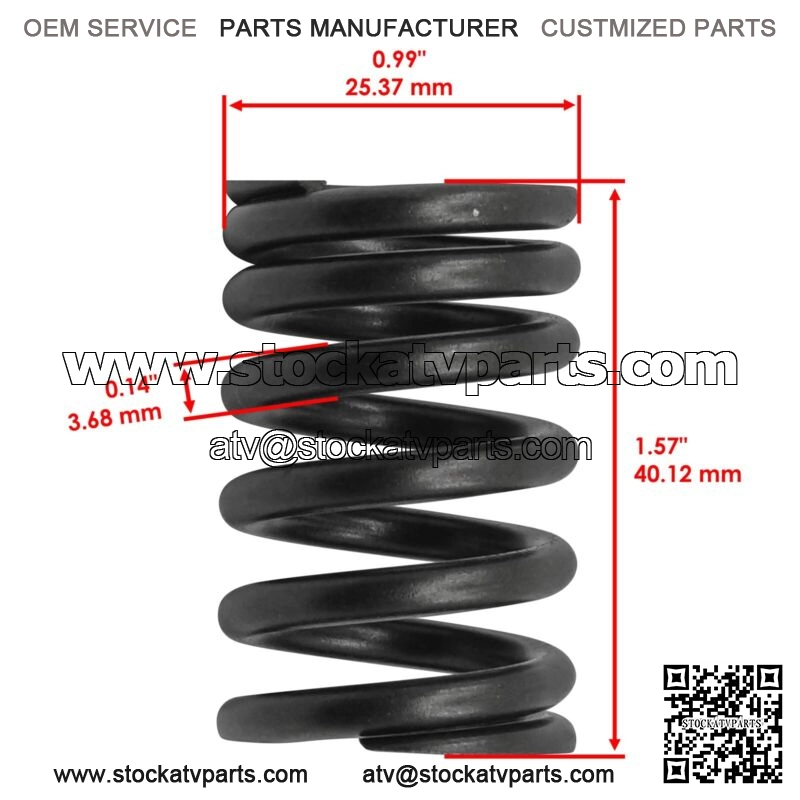

1 x Outer Valve Spring | 12007-1002 120071002
Width: 25.37 mm | 0.99″
Height: 40.12 mm | 1.57″
Thickness: 3.68 mm | 0.14″

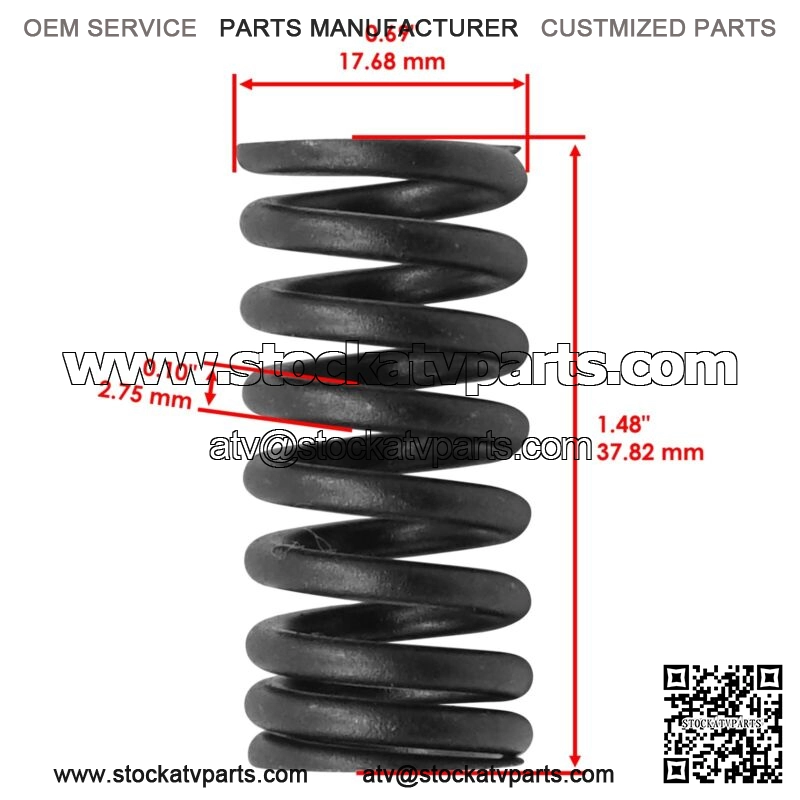

1 x Inner Valve Spring | 12007-1001 120071001
Width: 17.68 mm | 0.69″
Height: 37.82 mm | 1.48″
Thickness: 2.75 mm | 0.10″

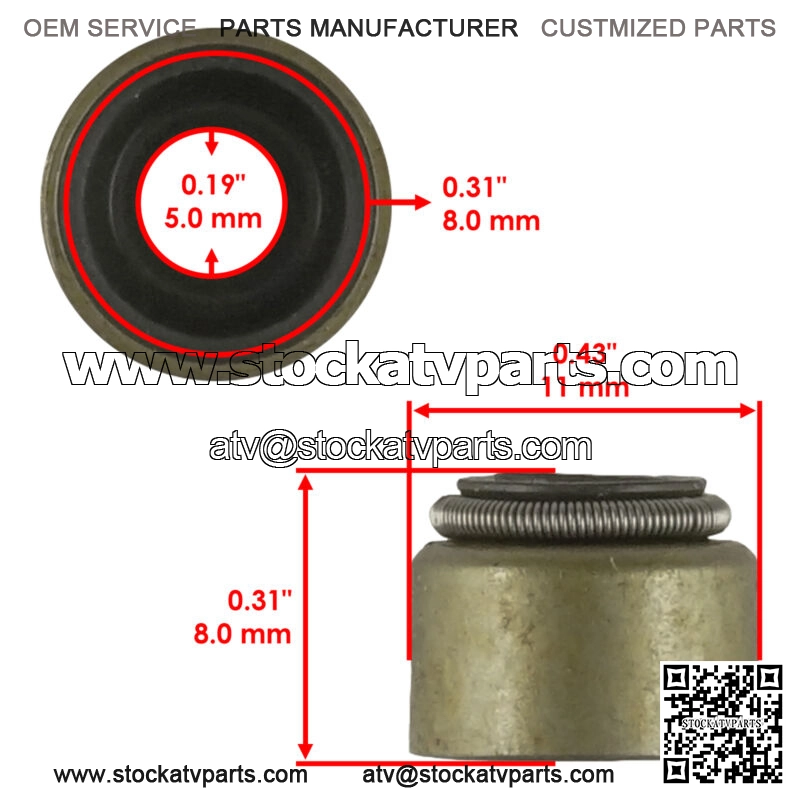

1 x Valve Stem Seal | 92049-1062 920491062
Length: 11 mm | 0.43″
Width: 8 mm | 0.31″
Inner Diameter: 5 mm | 0.19″
Outer Diameter: 8 mm | 0.31″
2 x Valve Cotter | 12011-1003 120111003
Width: 3.6 mm | 0.14″
Length: 8.49 mm | 0.33″
Height: 5.33 mm | 0.20″
**
