Premium Quality Replacement Part
Engine Intake Valve Kit
For Suzuki Models:
RM-Z250 2007-2015
Order Includes:
2 x Intake Valve | 12911-49H00 12911-10H00 1291149H00 1291110H00
Length: 80 mm | 3.14″
Diameter: 31 mm | 1.22″

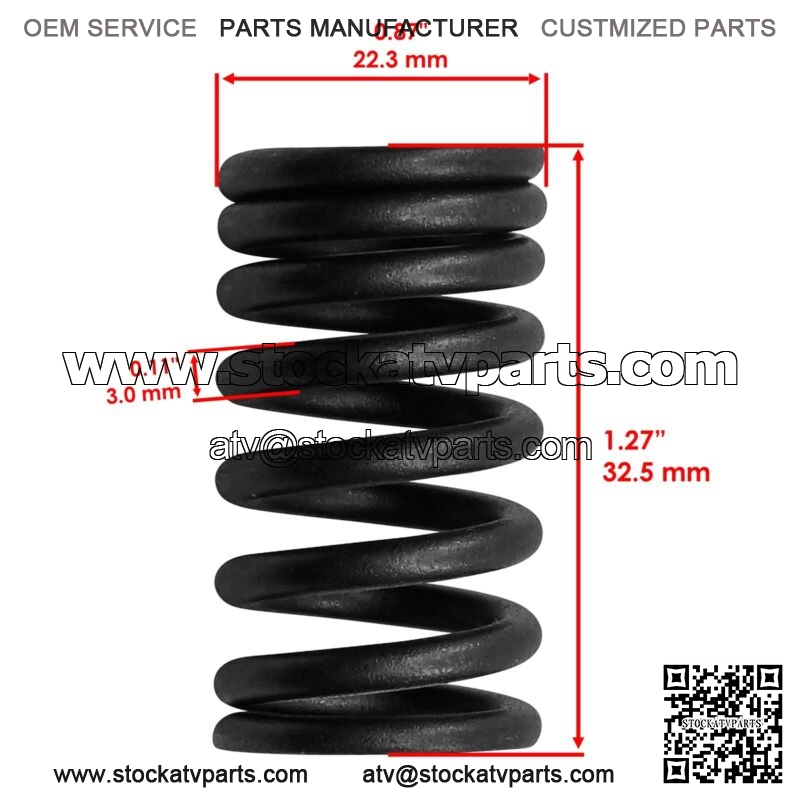

2 x Valve Spring | 12921-02H01 12921-02H00 1292102H01 1292102H00
Width: 22.3 mm | 0.87″
Height: 32.5 mm | 1.27″
Thickness: 3 mm | 0.11″

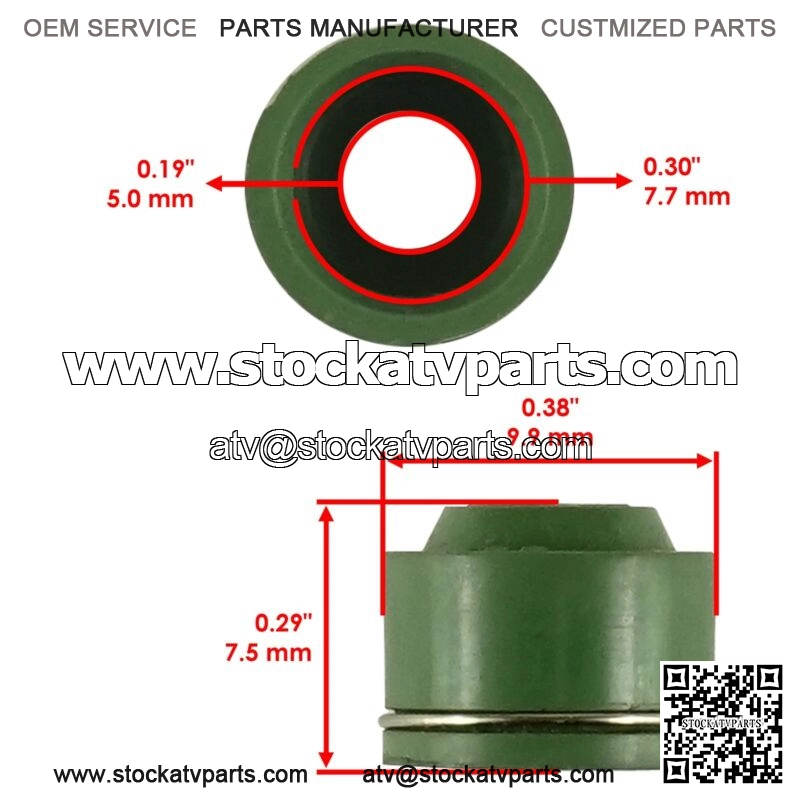

2 x Valve Stem Seal | 09289-04002 0928904002
Length: 9.9 mm | 0.38″
Width: 7.5 mm | 0.29″
Inner Diameter: 5 mm | 0.19″
Outer Diameter: 7.7 mm | 0.3″
4 x Valve Cotter | 12932-32C00 1293232C00
Width: 2.7 mm | 0.10″
Length: 6.28 mm | 0.24″
Height: 5.32 mm | 0.20″
2 x Valve Tappet | 12891-17E00 12891-47H00 1289117E00 1289147H00
Width: 19.5 mm | 0.76″
Inner Diameter: 26 mm | 1″
Outer Diameter: 28 mm | 1.1″
**
