Product: 1323035 1323103 1323193 Primary Drive Clutch Rebuild Kit for Polaris

Premium Quality Replacement Part
Primary Drive Clutch Rebuild Kit
For Polaris Models:
Ranger 900 XP 2013-2014Ranger Crew 900 2014-2015
Order Includes:

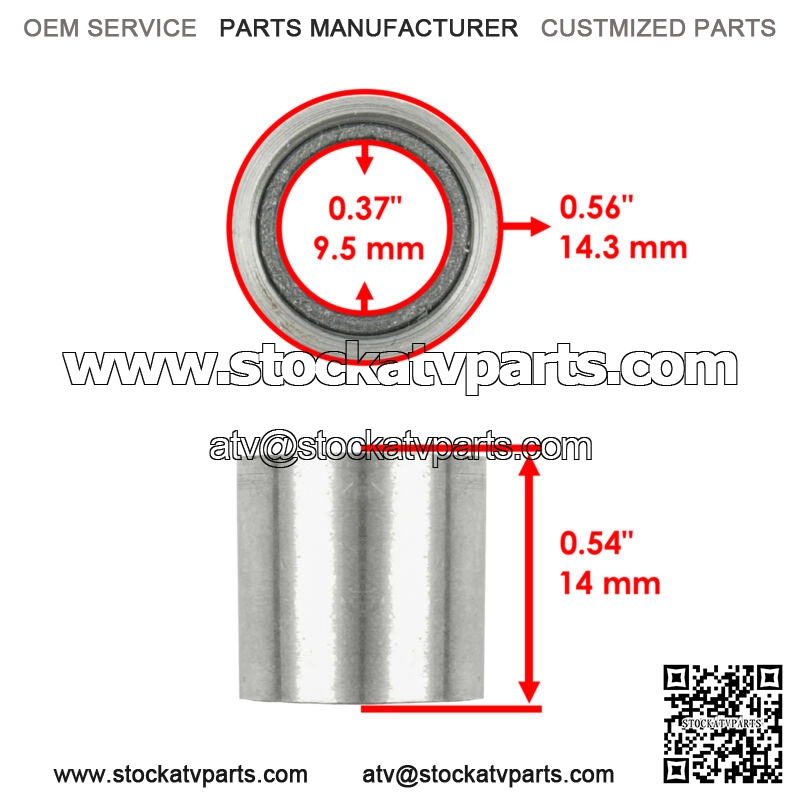

3 x Roller | 1321622Width: 14.0 mm | 0.54″Outer Diameter: 14.3 mm | 0.56″Inner Diameter: 9.5 mm | 0.37″
3 x Roller Pin I 5020422
Length: 25 mm | 0.98″Width: 9.5 mm | 0.37″
6 x Roller Washer | 5438247 5430702 5430945Outer Diameter: 14.6 mm | 0.57″Inner Diameter: 9.6 mm | 0.37″Thickness: 1.5 mm | 0.059″
6 x Button | 5439254 5431936Outer Diameter: | 14 mm | 0.55″
Height: 6.5 mm | 0.25″
3 x Shoulder Bolt (Socket Head Cap Screw) | 7512266
Length: 63.8 mm | 2.51″ | M5 x 1.0
3 x Flexloc Nut | 7541906 3235320Inner Diameter: 4 mm | 0.15″ | M X 1.0Height: 6.1 mm | 024″
**
