Product: 5137346 5139929 7556153 5436973 Front A Arm Bushing Kit For Polaris

Premium QualityReplacement Part
Front Upper Lower Outer
Left & Right A Arm Bushing Kit
For Polaris Models:
Sportsman SP 570 EPS 2016

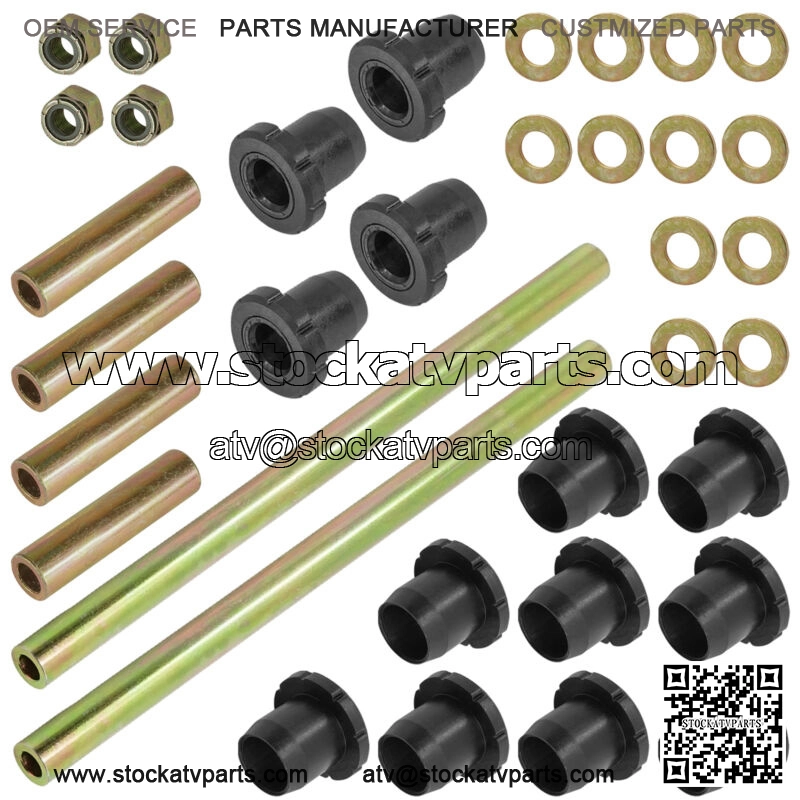

Order Includes:

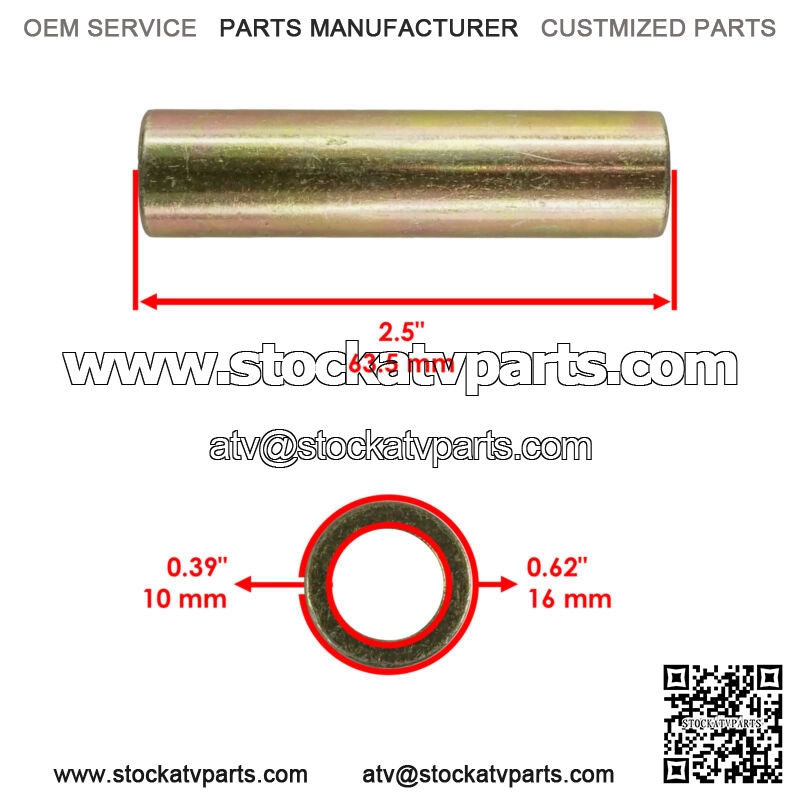

4 x Pivot Shaft: 5137346
Length: 63 5mm
Inner Diameter: 10mm
Outer Diameter: 16mm

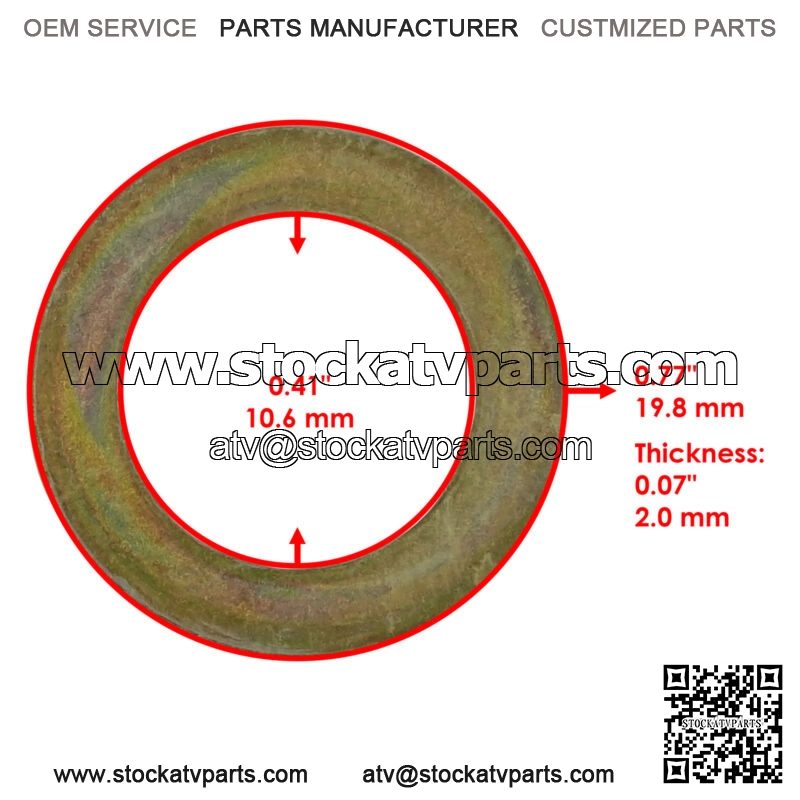

12 x Flange Washer: 7556153
Thickness: 2mm
Inner Diameter: 10 6mm
Outer Diameter: 19 8mm

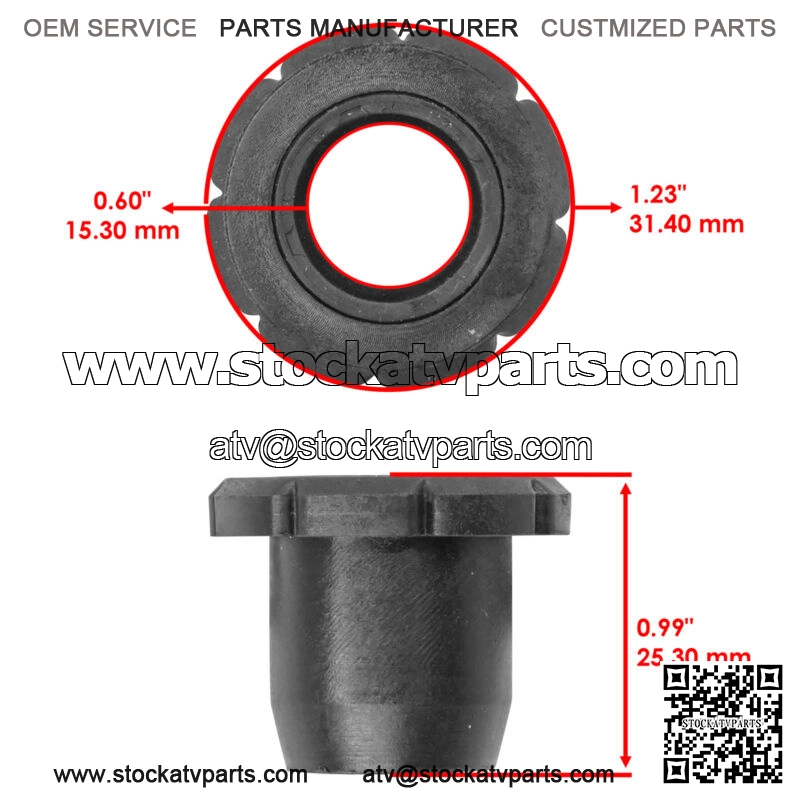

8 x Bushing: 1543367 1543152
Length: 25 3mm
Inner Diameter: 15 3mm
Outer Diameter: 31 4mm

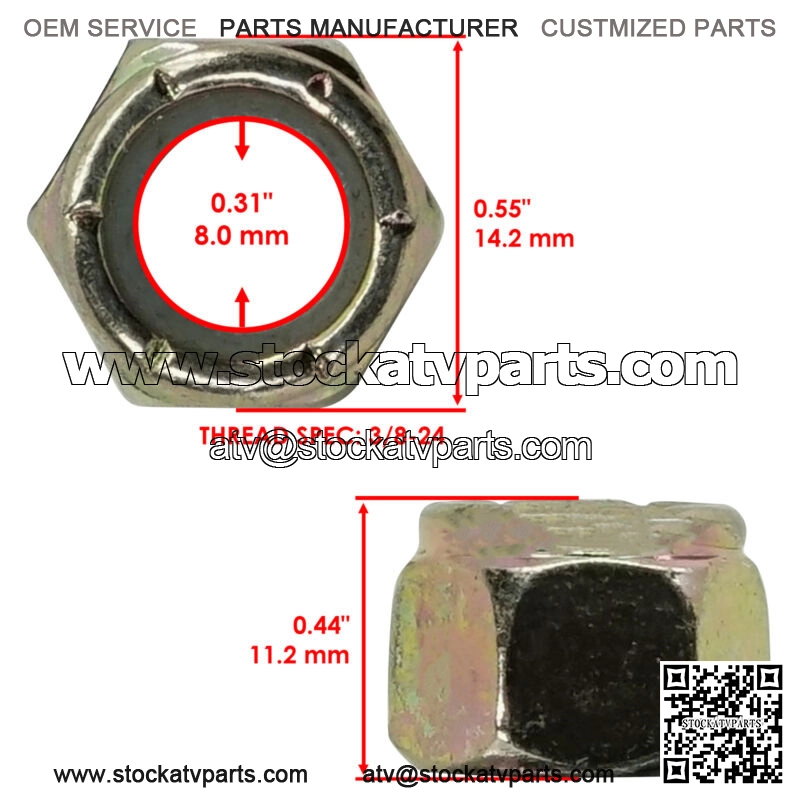

4 x Nylock Nut : 7542439 7542453
Width: 11.2mm
Inner Diameter: 8 mm
Outer Diameter: 14.2 mm
2 x Long Pivot Shaft: 5139929
Length: 282.6mm
Inner Diameter: 8.2mm
Outer Diameter: 16mm
4 x Long Bushing: 5436973
Length: 102mm
Tube Diameter: 21mm
Front Upper A Arm Part Number
Left:
1020527-067
Right: 1020528-067
Front Lower A Arm Part Number
Left: 1020987-458
Right: 1020988-458
