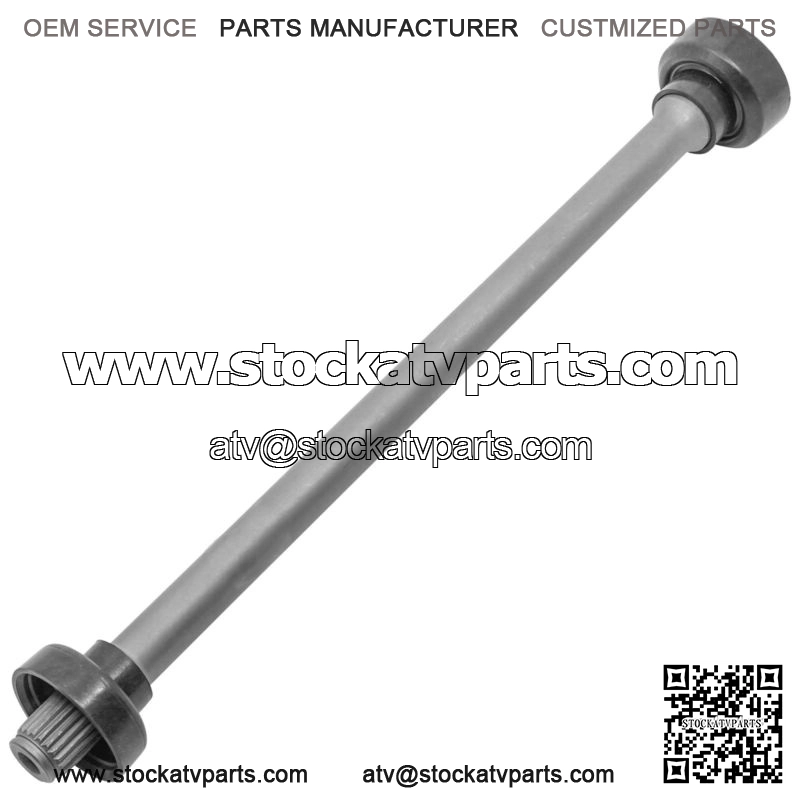

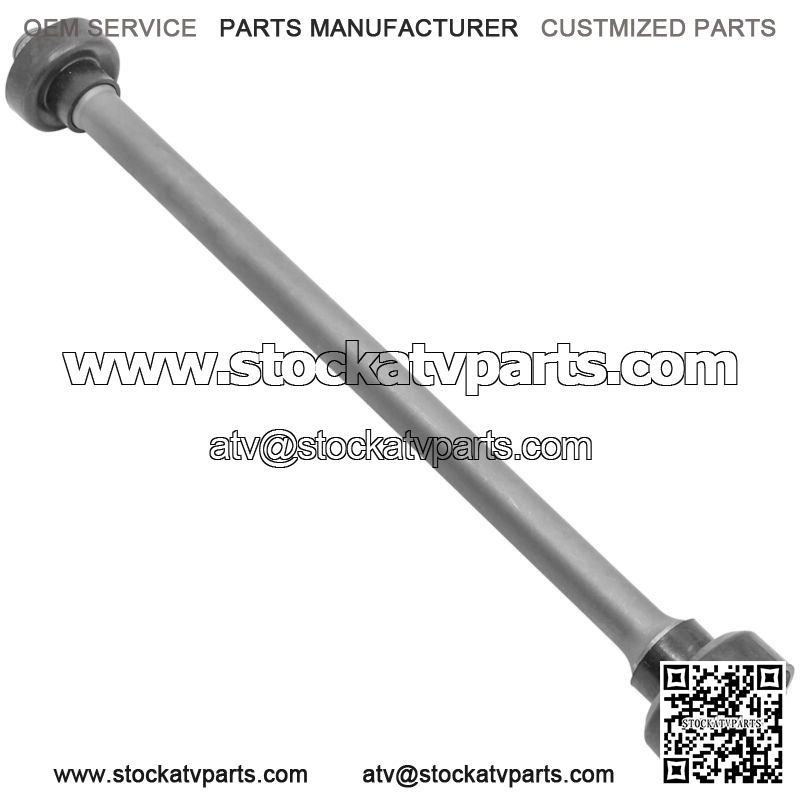

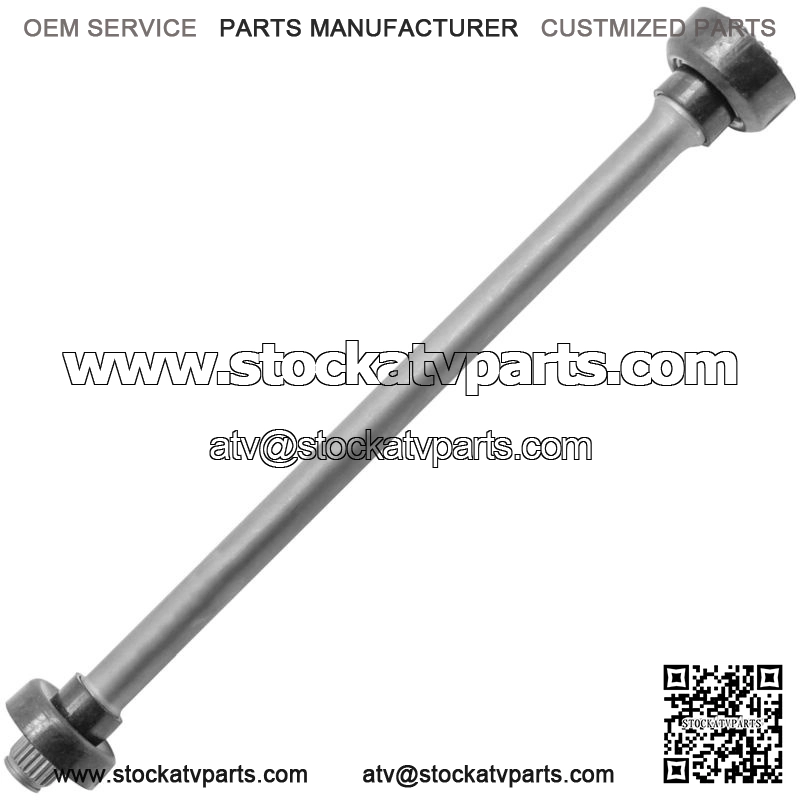

5UG-G6172-00-00 Rear Propeller Drive Shaft For Yamaha Length 16.3"

5UG-G6172-00-00 Rear Propeller Drive Shaft For Yamaha Length 16.3" - Image 2

5UG-G6172-00-00 Rear Propeller Drive Shaft For Yamaha Length 16.3" - Image 3

5UG-G6172-00-00 Rear Propeller Drive Shaft For Yamaha Length 16.3″

SKU Z.15955 5UG-G6172-00-00 5UGG61720000 Category ATV Axles Tags axle, shaft

Premium Quality Replacement Part
Rear Propeller Drive Shaft
For Yamaha Models:
Rhino 450 YXR450FA 4×4 2006-2009
Rhino 660 YXR660 4×4 2004-2007
Order Includes:
1 x Driveshaft | 5UG-G6172-00-00 5UGG61720000
Length: 414 mm | 16.3″

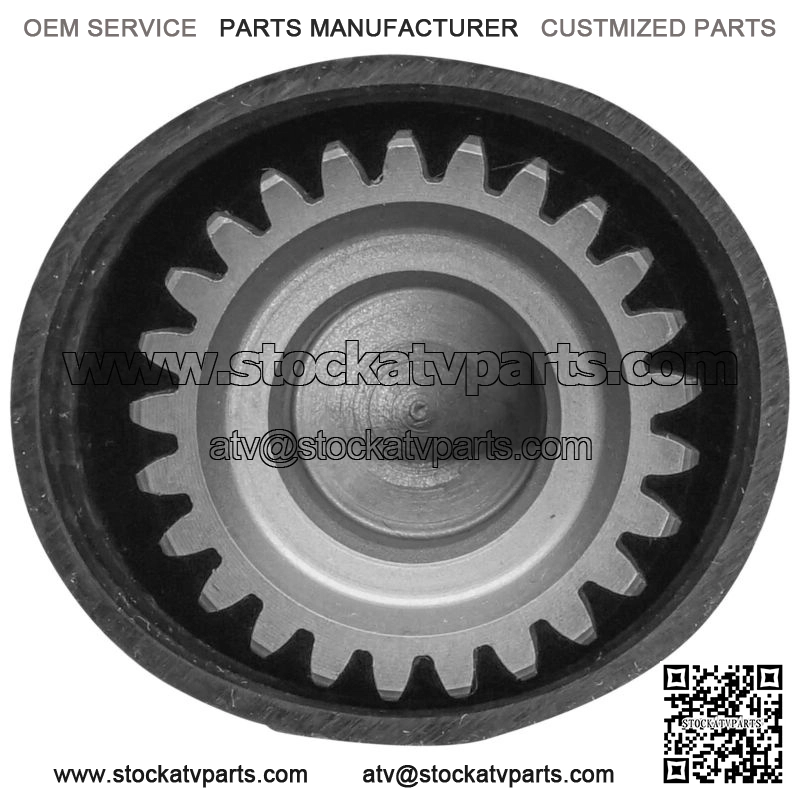

Gear Diameter 1: 40.2 mm | 1.58″ ooth: 25
Gear Diameter 2: 21.8 mm | 0.85″ Tooth: 21
Tube Outer Diameter: 19.6 mm | 0.77″
Weight: 8.2oz
1 x Seal 1 | 5KM-46136-00-00
1 x Seal 2 | 5KM-46137-00-00
**
