Back & Bottom Seat Assembly For Yamaha 1XD-F4700-01-00 1XD-F4790-01-00 QTY 2

Back & Bottom Seat Assembly For Yamaha 1XD-F4700-01-00 1XD-F4790-01-00 QTY 2 - Image 2

Back & Bottom Seat Assembly For Yamaha 1XD-F4700-01-00 1XD-F4790-01-00 QTY 2 - Image 3

Back & Bottom Seat Assembly For Yamaha 1XD-F4700-01-00 1XD-F4790-01-00 QTY 2

SKU ZY.03294 Category ATV Seats & Covers Tag seat

Premium Quality Replacement Part
Complete Seat Assembly QTY 2
For Yamaha Models:
Order Includes:

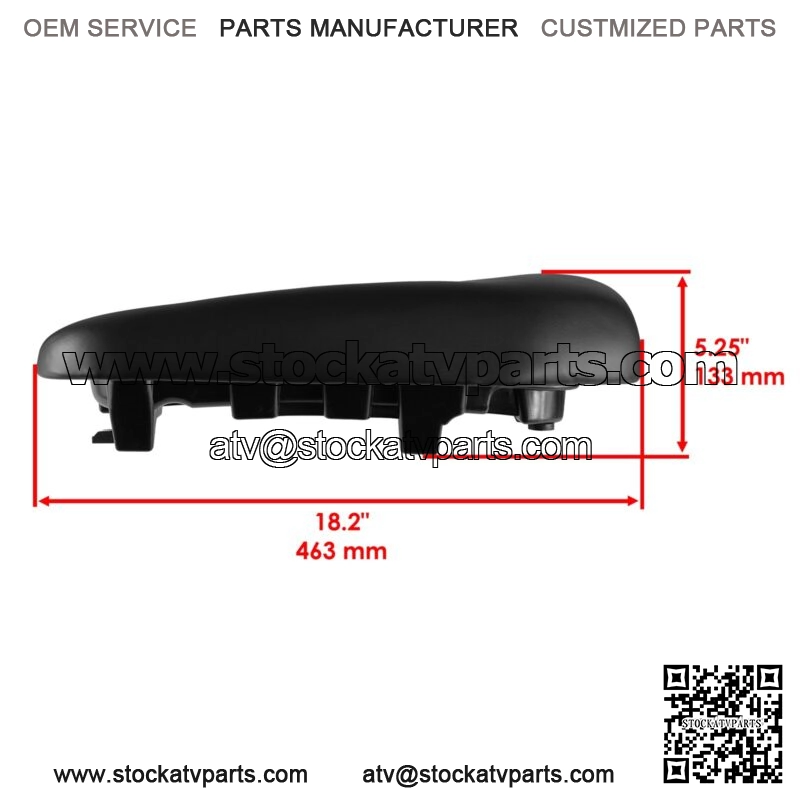

1 x Bottom Seat: 1XD-F4700-01-00 1XD-F4700-00-00
Width: 16.6″ | 422.0mm
Length: 18.2″ | 463.0mm
Height: 5.25″ | 133.0mm
Rear Mounting Hole Distance: 10.3″ | 263.0 mm
Front Mounting Hole Distance: 5.5″ | 140.0 mm

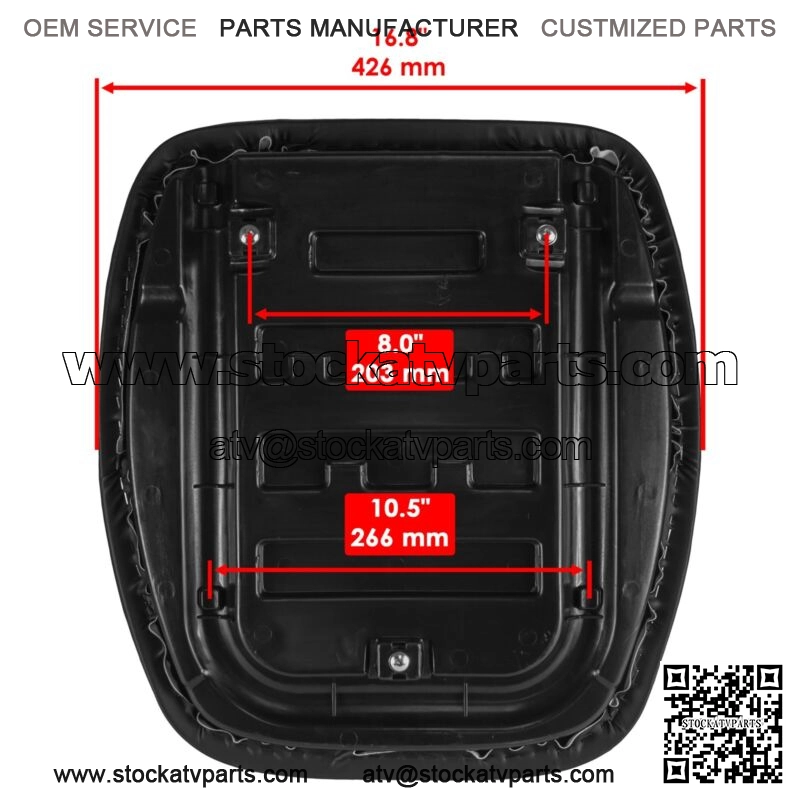

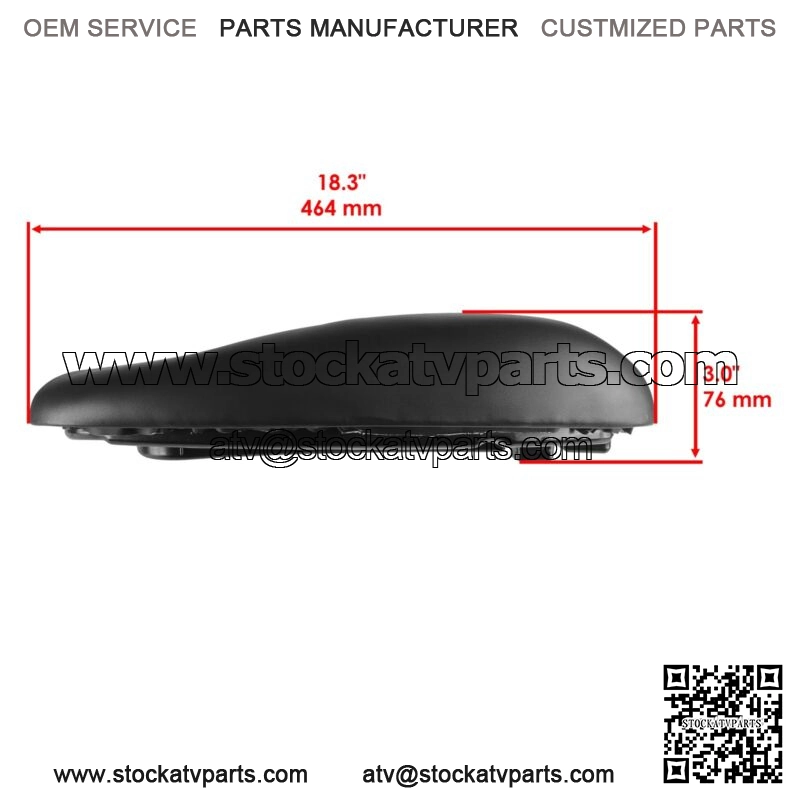

1 x Back Seat: 1XD-F4790-01-00 1XD-F4790-00-00
Width: 16.8″ | 426.0 mm
Length: 18.3″ | 464.0 mm
Height: 3.0″ | 76.0 mm
Upper Mounting Hole Distance: 8.0″ | 203.0 mm
Lower Mounting Hole Distance: 10.5″ | 266.0 mm
**
