Clutch Friction Plate Spring Kit for Suzuki 21441-37400 21451-28C31 09440-20019

Clutch Friction Plate Spring Kit for Suzuki 21441-37400 21451-28C31 09440-20019 - Image 2

Clutch Friction Plate Spring Kit for Suzuki 21441-37400 21451-28C31 09440-20019

SKU MCP.01628 Category ATV Brakes Tags brake pad, friction disc

Premium Quality Replacement Part
Clutch Friction Plate Spring Kit for Suzuki 21441-37400 21451-28C31 09440-20019
For Suzuki Models:
GS500E 1989-2000
GS500 2001-2002
GS500F 2004-2009

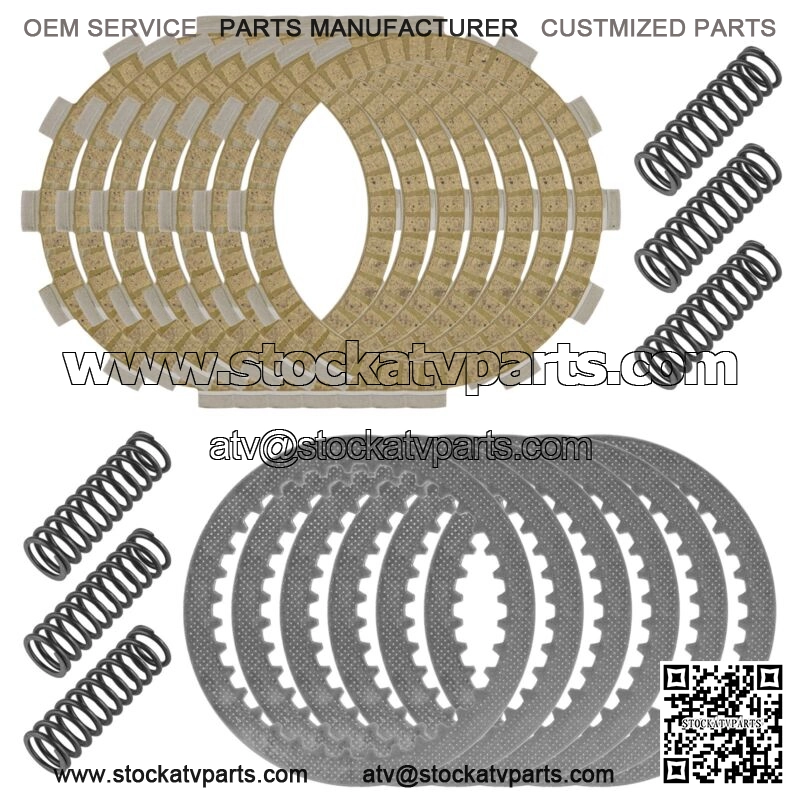

Order Includes:

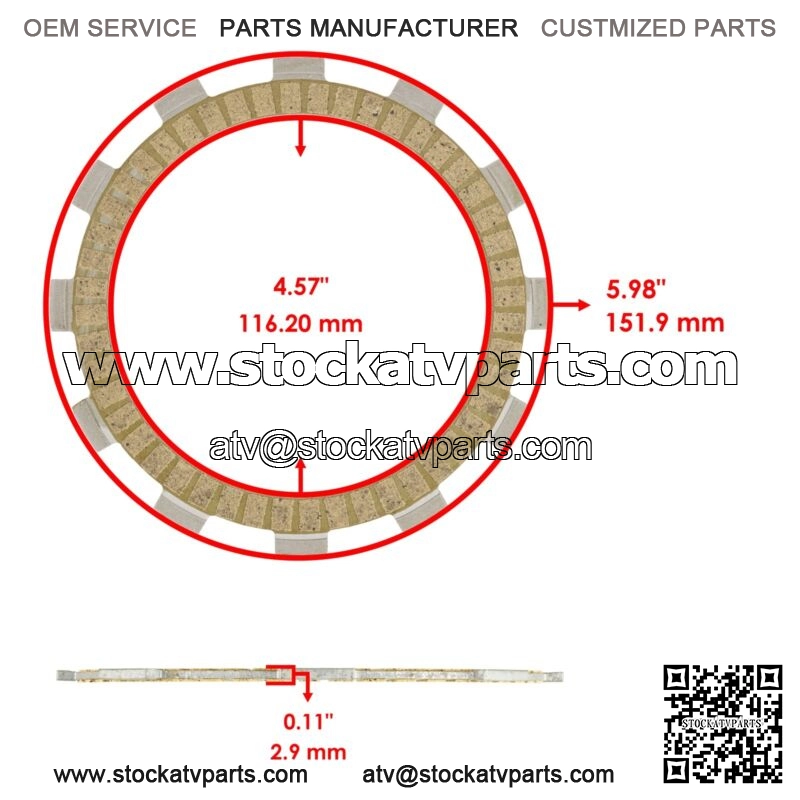

7 x Clutch Friction Plate: 21441-37400
Width: 0.11″ | 2.9 mm
Inner Diameter: 4.57″ | 116.20 mm
Outer Diameter: 5.98″ | 151.9 mm
6 x Clutch Plate: 21451-28C31 21451-45000
Width: 0.06″ | 1.6 mm
Inner Diameter: 4.52″ | 115.0 mm
Outer Diameter: 5.43″ | 138.0 mm

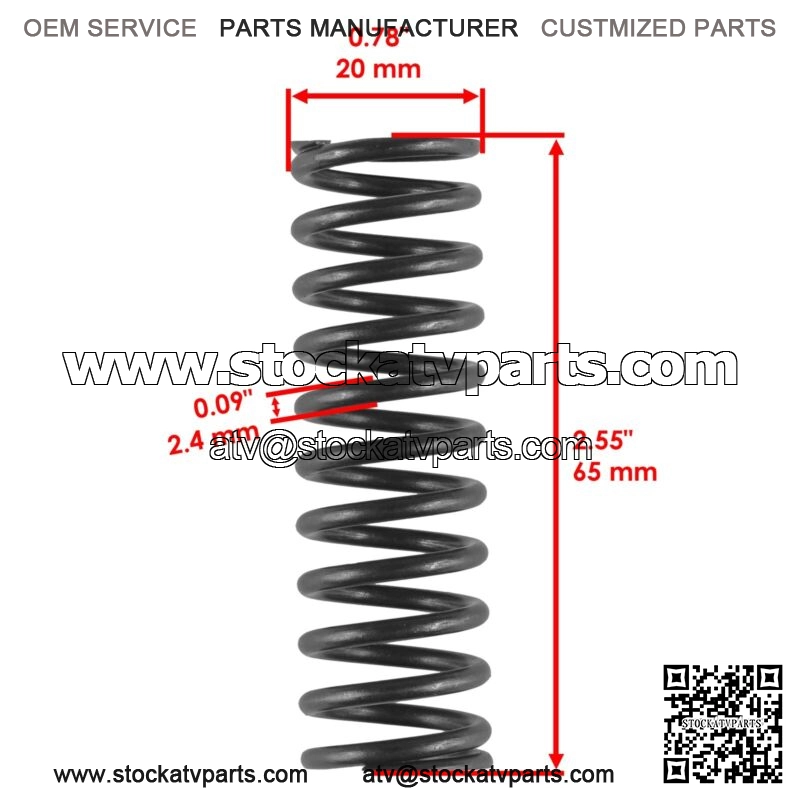

6 x Clutch Spring: 09440-20019
Width: 0.78″ | 20.0 mm
Height: 2.55″ | 65.0 mm
Thickness: 0.09″ | 2.4 mm
**
