Product: Clutch Friction Plates and Steel Plates Kit for Yamaha XSR900 2022 – 2023

PremiumQuality Replacement Part
Clutch Friction Plates and Steel Plates
For Yamaha Models:
XSR900 2022-2023

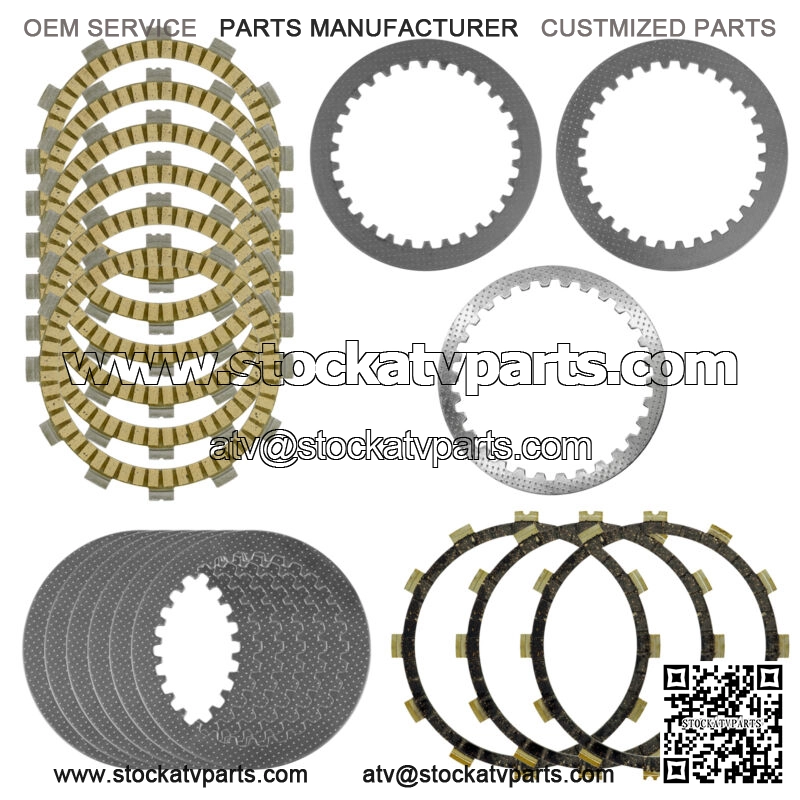

Order Includes:

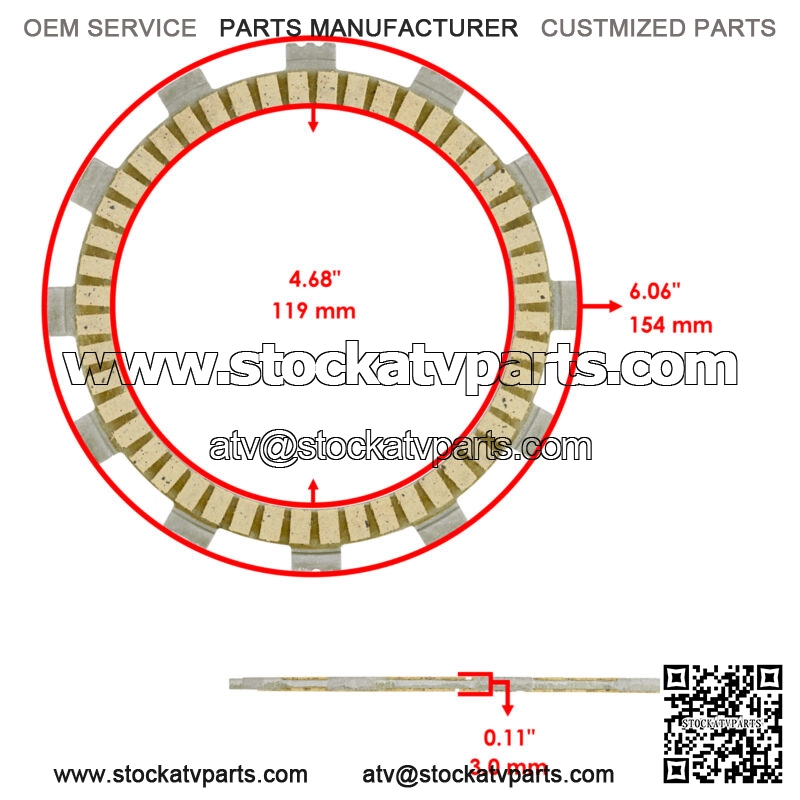

6 x Clutch Friction Plates | 5TA-16321-00-00 5VY-16321-00-00Clutch Friction Plate Thickness: 3.0 mm | 0.11
Clutch Friction Plate Inner Diameter: 119 mm | 4.68″
Clutch Friction Plate Outer Diameter: 154 mm | 6.06″

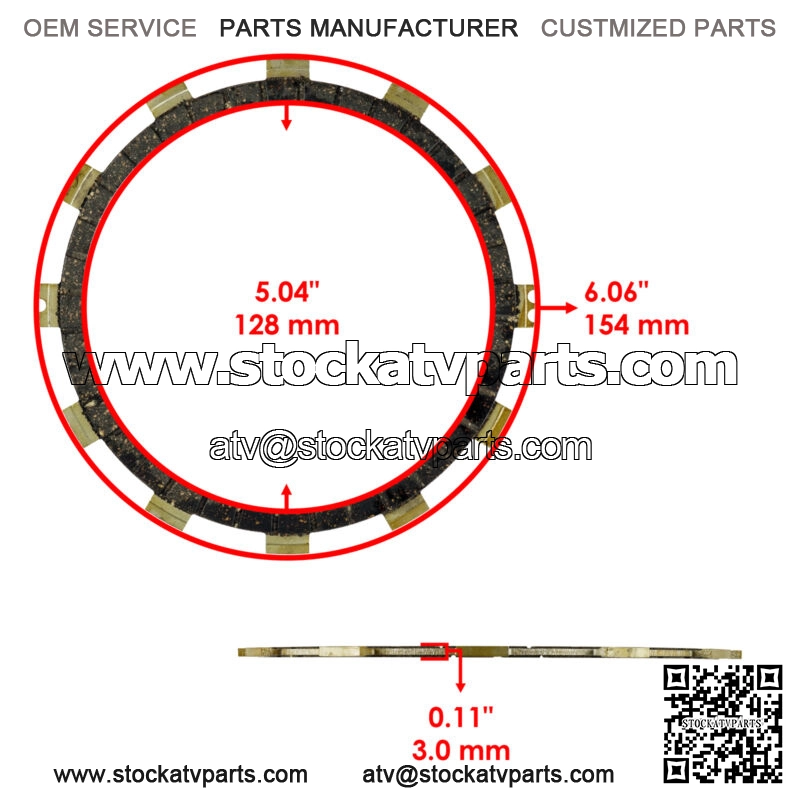

3 x Clutch Friction Plates | B90-16331-00-00Clutch Friction Plate Thickness: 3.0 mm | 0.11″
Clutch Friction Plate Inner Diameter: 128 mm | 5.04″
Clutch Friction Plate Outer Diameter: 154 mm | 6.06″
6 x Clutch Steel Plates | 5VY-16325-00-00
Clutch Steel Plate Thickness: 2.0 mm | 0.078″
Clutch Steel Plate Inner Diameter: 115 mm | 4.52″
Clutch Steel Plate Outer Diameter: 142 mm | 5.59″
1 x Clutch Steel Plates | 1TD-16324-00-00
Clutch Steel Plate Thickness: 125.5 mm | 4.94″
Clutch Steel Plate Inner Diameter: 125.5 mm | 4.94″
Clutch Steel Plate Outer Diameter: 142 mm | 5.59″
1 x Clutch Steel Plates | BR9-16324-00-00
Clutch Steel Plate Thickness: 1.6 mm | 0.063″
Clutch Steel Plate Inner Diameter: 115 mm | 4.52″
Clutch Steel Plate Outer Diameter: 142 mm | 5.59″

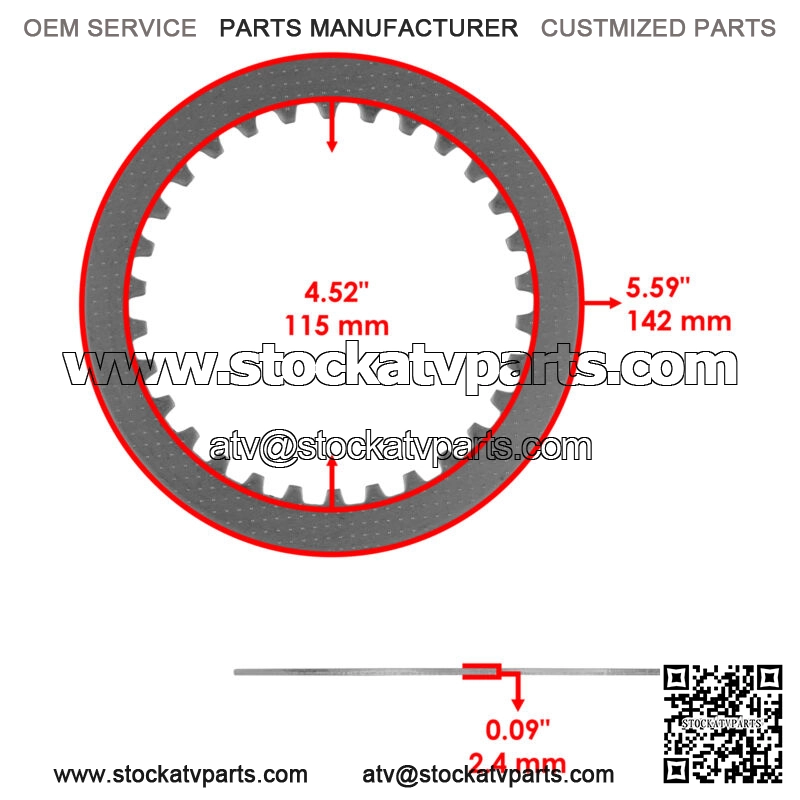

1 x Clutch Steel Plates | 4B1-16325-00-00
Clutch Steel Plate Thickness: 2.4 mm | 0.09″
Clutch Steel Plate Inner Diameter: 115 mm | 4.52″
Clutch Steel Plate Outer Diameter: 142 mm | 5.59″
**
