Product

PremiumQuality Replacement Part
Clutch Friction and Steel Plates Kit
For Yamaha Models:
Star Venture 1900 XV1900F 2018-2021

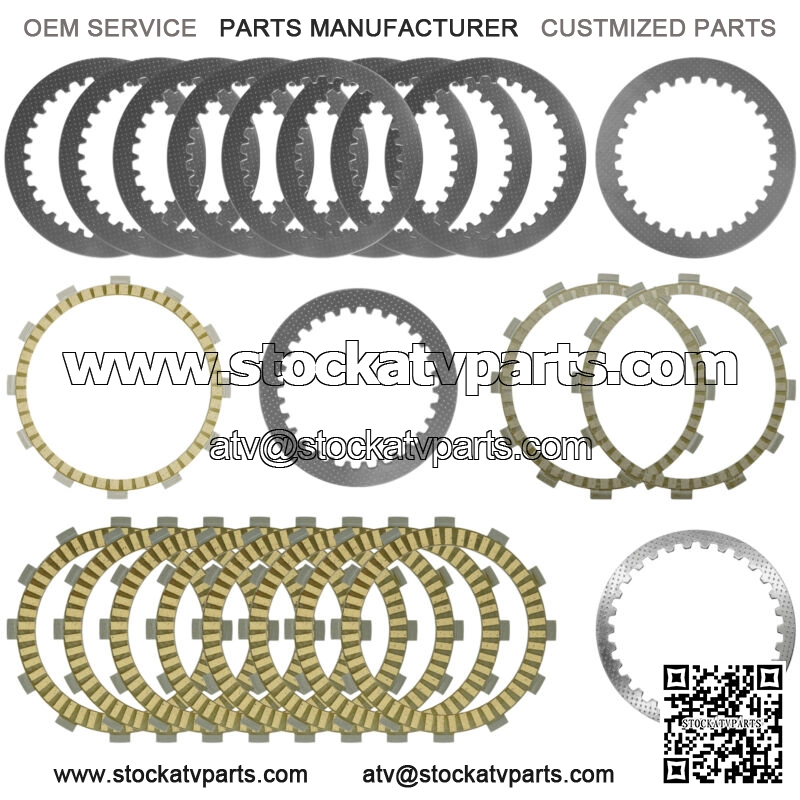

Order Includes:

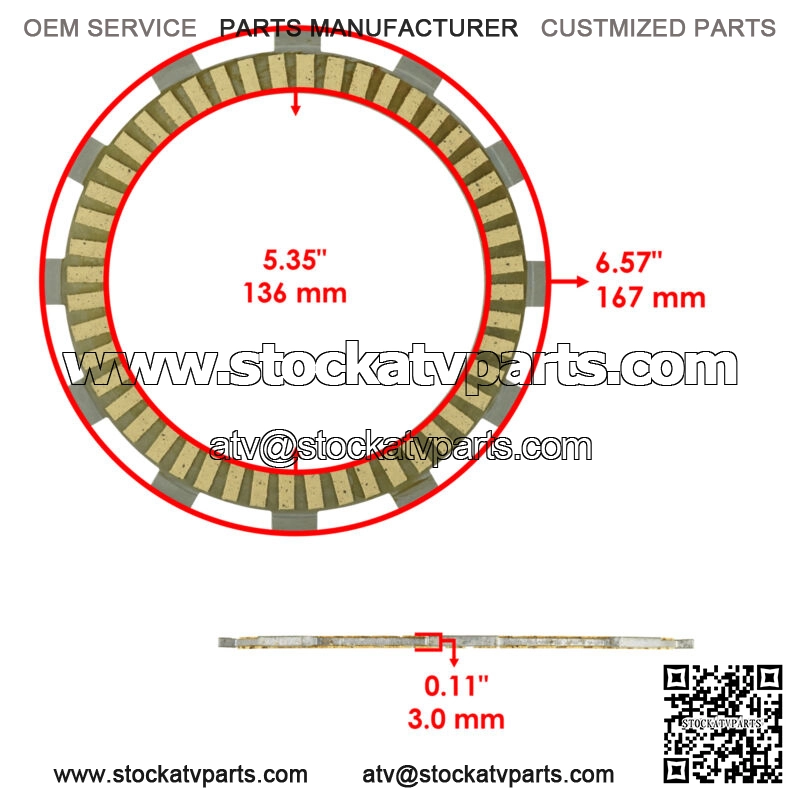

8 x Clutch Friction Plate | 1D7-16321-00-00
Width : 3.0 mm | 0.11″
Inner Diameter : 136 mm | 5.35″
Outer Diameter : 167 mm | 6.57″

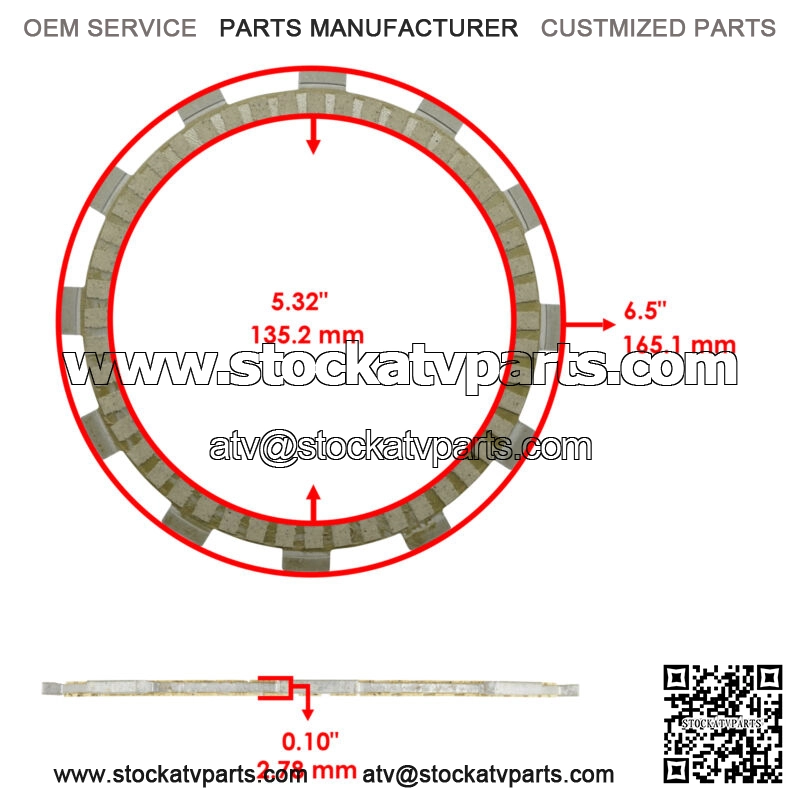

2 x Clutch Friction Plate | 27D-16331-00-00
Width : 2.78 mm | 0.10″
Inner Diameter : 135.2 mm | 5.32″
Outer Diameter : 167.1 mm | 6.5″

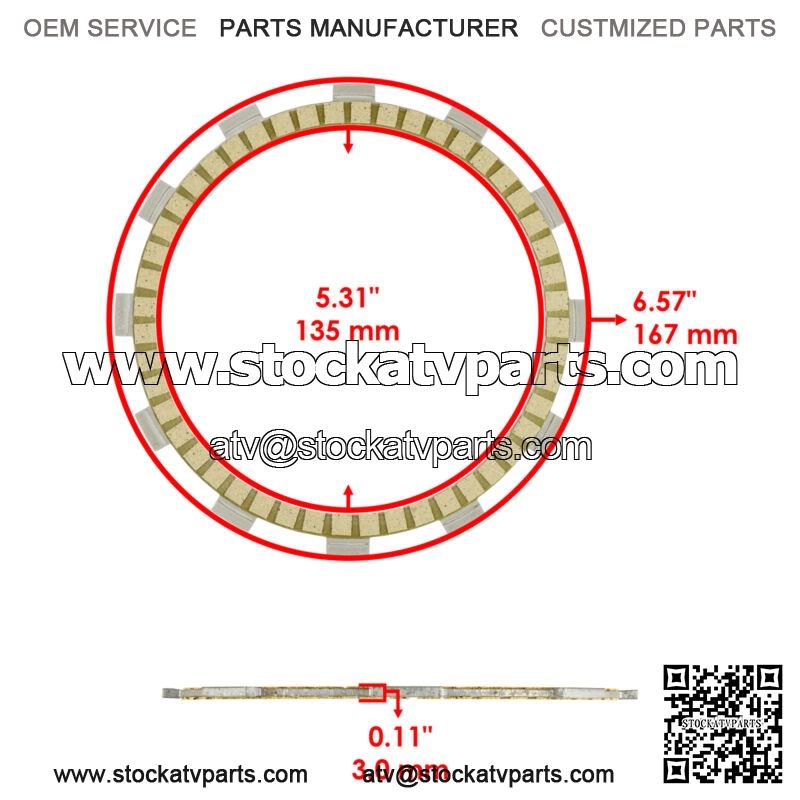

1 x Clutch Friction Plate | 4XV-16331-00-00
Width : 3.0 mm | 0.11″
Inner Diameter : 135 mm | 5.31″
Outer Diameter : 167 mm | 6.57″

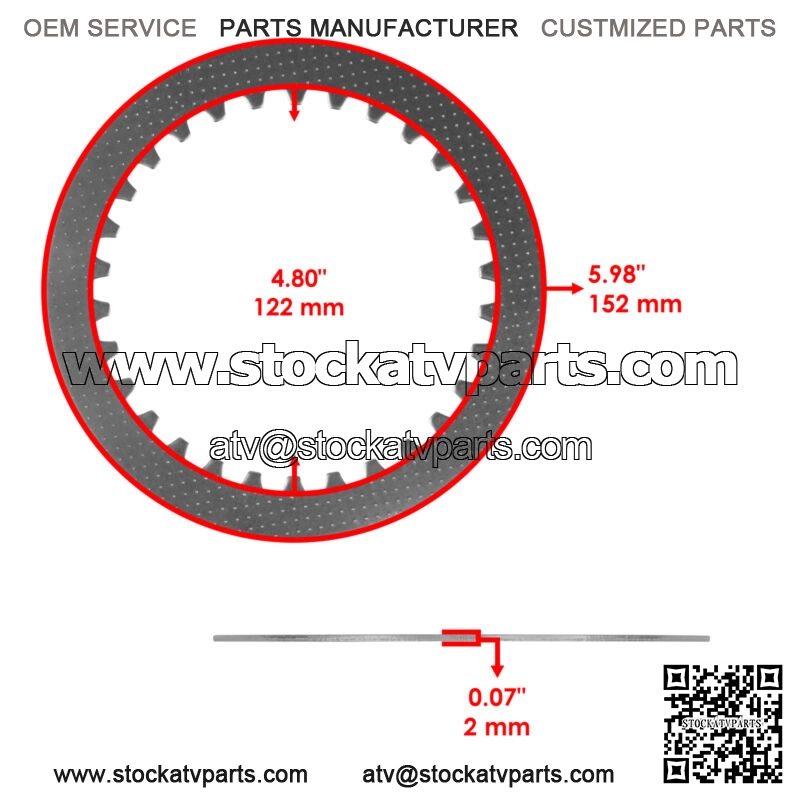

8 x Clutch Steel Plate | 2H7-16325-00-00
Width : 2.0 mm | 0.07″
Inner Diameter : 122 mm | 4.80″
Outer Diameter : 152 mm | 5.98″
1 x Clutch Steel Plate | 2H7-16324-00-00
Width : 3.0 mm | 0.10″
Inner Diameter : 122 mm | 4.80″
Outer Diameter : 152 mm | 5.98″
1 x Clutch Steel Plate | 47X-16324-00-00
Width : 2.0 mm | 0.06″
Inner Diameter : 122 mm | 4.80″
Outer Diameter : 152 mm | 5.98″
1 x Clutch Steel Plate | 1D7-16325-00-00
Width : 2.6 mm | 0.10″
Inner Diameter : 135.1 mm | 5.3″
Outer Diameter : 150.5 mm | 5.92″
**
