Product: Clutch Friction Steel Plates Kit for Yamaha YXZ1000R SS XTR YXZ10Y 2020 – 2023

Premium Quality Replacement Part
Clutch Friction
with
Steel Plates and Gasket Kit
For Yamaha Models:
YXZ1000R SS YXZ10Y EPS 2017-2023YXZ1000R SS YXZ10Y EPS Special Edition 2017-2023YXZ1000R SS XTR YXZ10Y EPS 2020-2023

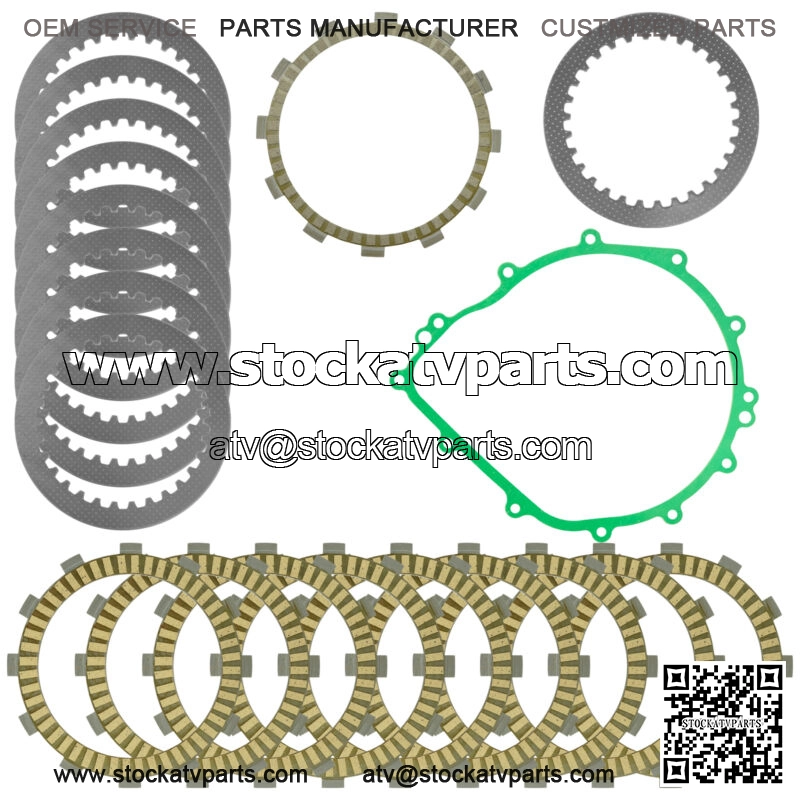

Order Includes:
1 x Clutch Friction Plate | 1PK-16331-00-00
Width : 2.6 mm | 0.10″
Inner Diameter : 135.3 mm | 5.32″
Outer Diameter : 165.8 mm | 6.52″

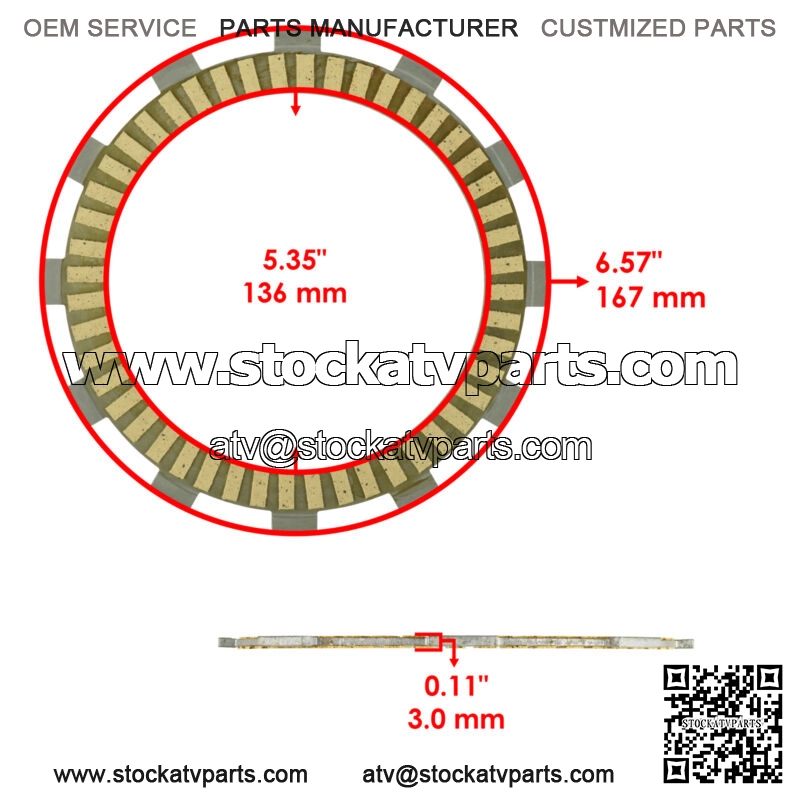

9 x Clutch Friction Plate | 5YU-16321-00-00
Width : 3.0 mm | 0.11″
Inner Diameter : 136 mm | 5.35″
Outer Diameter : 167 mm | 6.57″
1 x Clutch Steel Plate | 2H7-16325-00-00Width : 2.0 mm | 0.07″
Inner Diameter : 122 mm | 4.80″
Outer Diameter : 152 mm | 5.98″

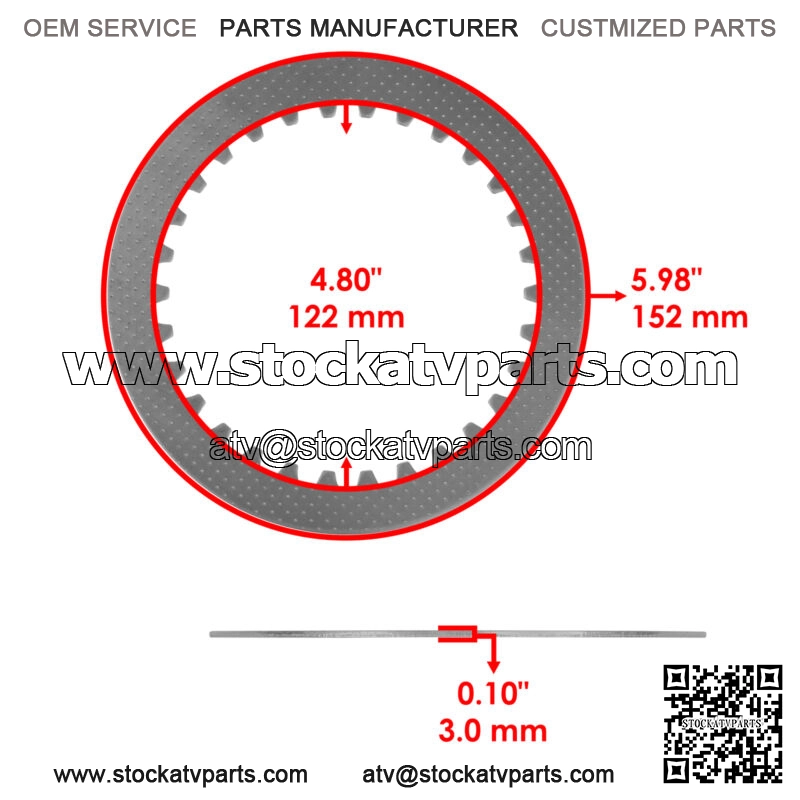

8 x Clutch Steel Plate | 2H7-16324-00-00Width : 3.0 mm | 0.010″
Inner Diameter : 122 mm | 4.80″
Outer Diameter : 152 mm | 5.98″
1 x Clutch Cover Gasket | 2HC-15453-00-00
**
