Product: Clutch Friction Steel Plates with Springs O-Ring Kit for Yamaha YZ450F 2014-2017

PremiumQuality Replacement Part
Clutch Friction Steel Plates with Springs and O-Ring
For Yamaha Models:
YZ450F 2014-2017

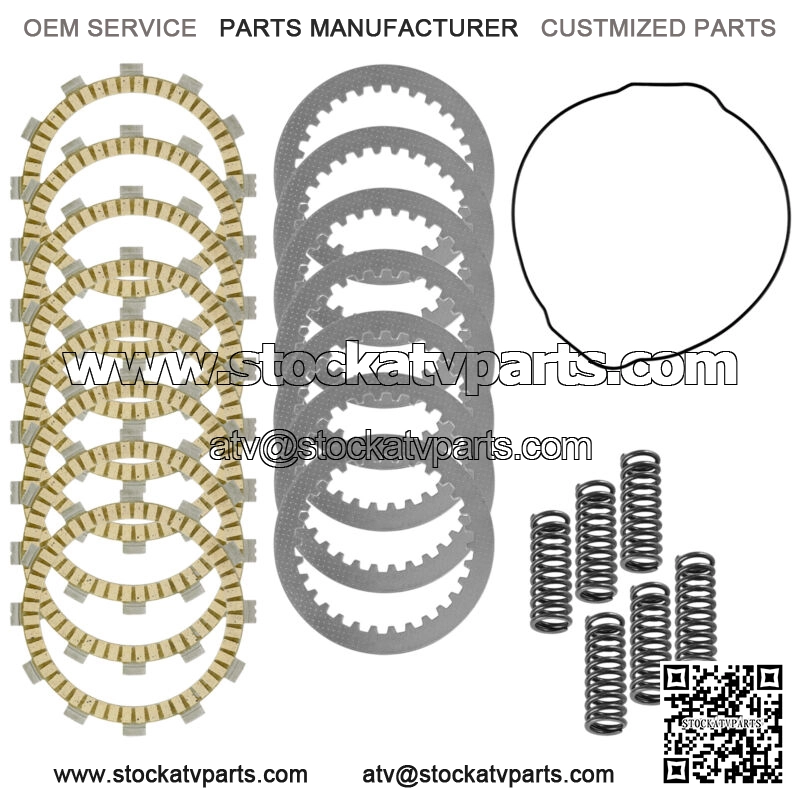

Order Includes:

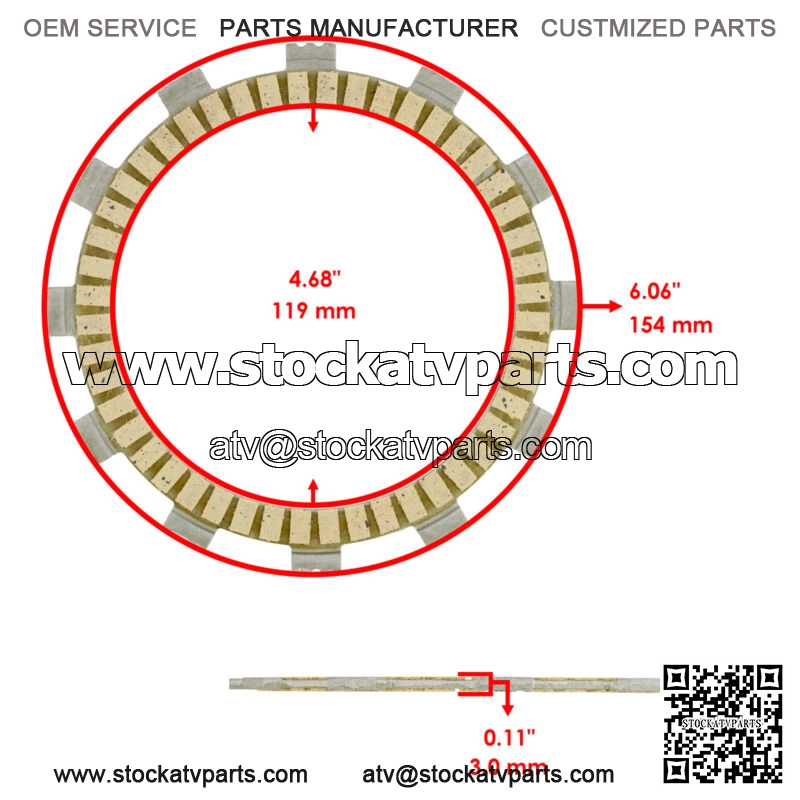

8 x Clutch Friction Plates | 5TA-16321-00-00 5VY-16321-00-00Clutch Friction Plate Thickness: 3 mm | 0.11″
Clutch Friction Plate Inner Diameter: 119 mm | 4.68″
Clutch Friction Plate Outer Diameter: 154 mm | 6.06″

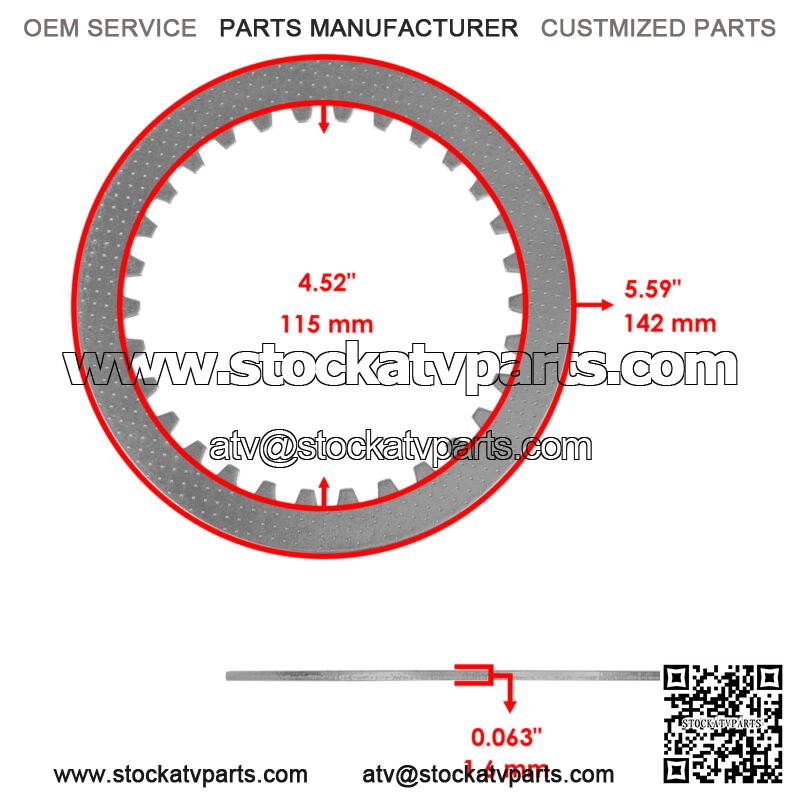

7 x Clutch Steel Plates | 4B1-16324-00-00 BR9-16324-00-00
Clutch Steel Plate Thickness: 1.6 mm | 0.063″
Clutch Steel Plate Inner Diameter: 115 mm | 4.52″
Clutch Steel Plate Outer Diameter: 142 mm | 5.59″

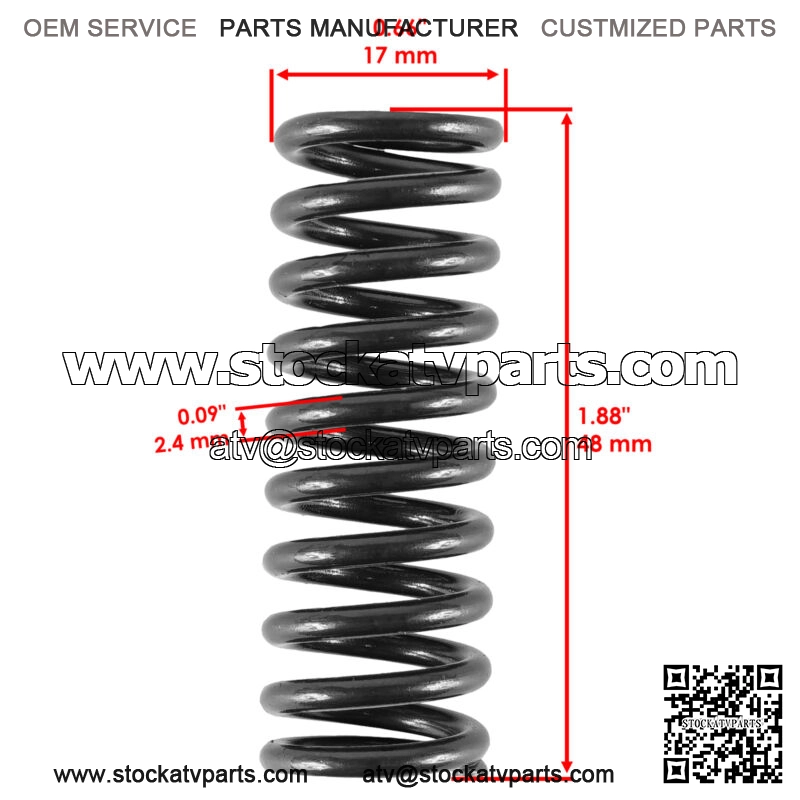

6 x Clutch Springs | 90501-240A3
Clutch spring Length: 48 mm | 1.88″
Clutch spring Width: 17 mm | 0.66″
Clutch spring Thickness: 2.4 mm | 0.09″
1 x O-Ring | 33D-15453-00-00
**
