CV Axles For Arctic Cat Wildcat Sport 4x4 LTD XT SE 2015-2019 Front And Rear

SKU Z.15803 2502-354, 2502354, 2502-151, 2502151, 2502-355, 2502355, 2502-152, 2502152 Category Tags ,
Spread the love
Share on facebook
Share on twitter
Share on linkedin
Share on whatsapp
Share on telegram
Share on tumblr
Share on pinterest

Premium Quality Replacement Part

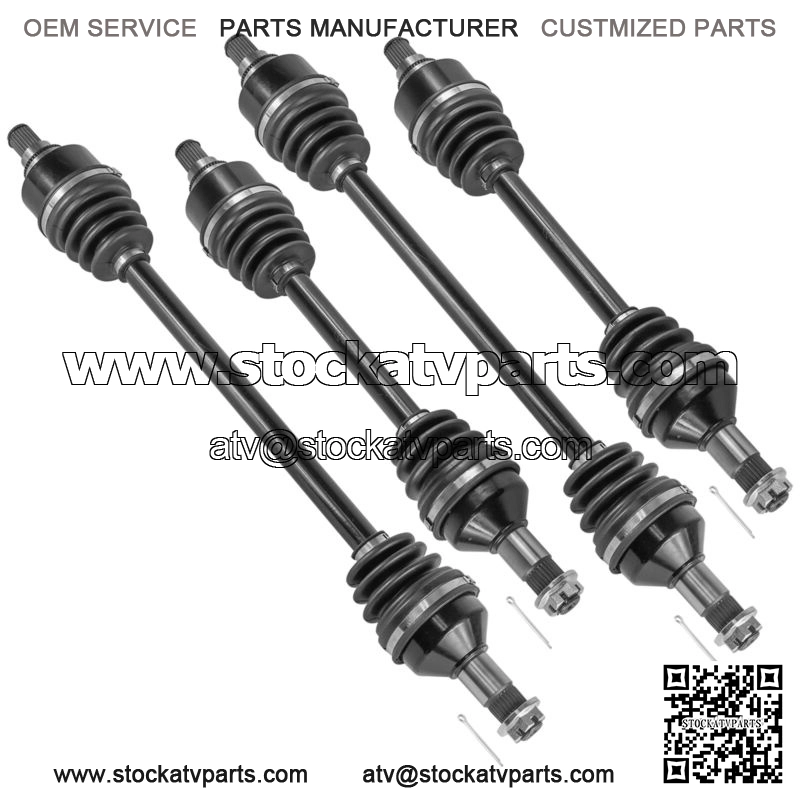

Front And Rear CV AxlesFor Arctic Cat Models:Wildcat Sport 4×4 LTD XT SE 2015-2019Order Includes:2x Front Left Or Right CV Axles : 2502-354 2502-151

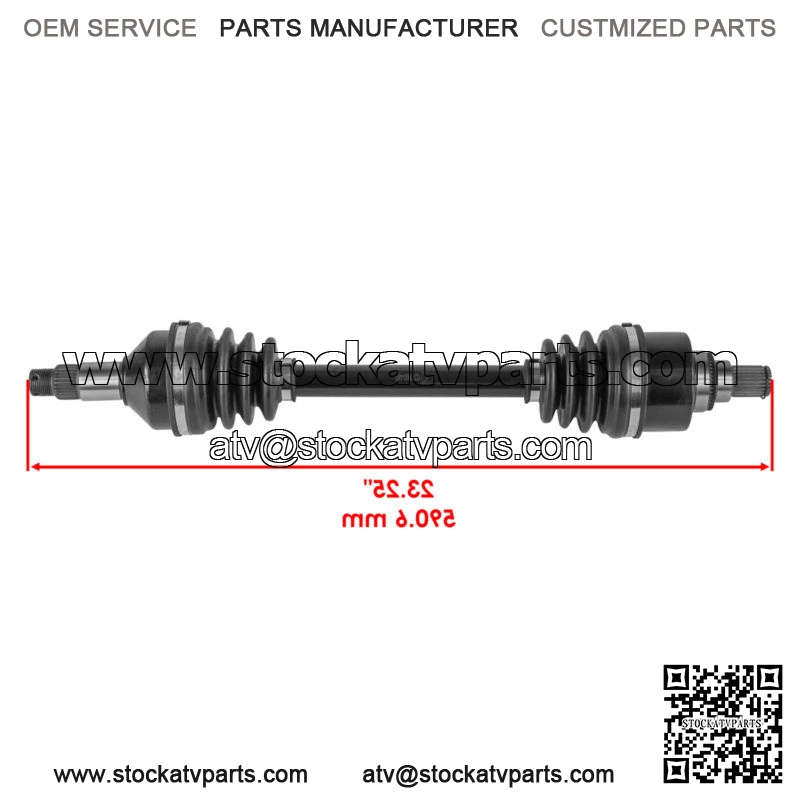

Length : 590.6 mm | 23.25 ”

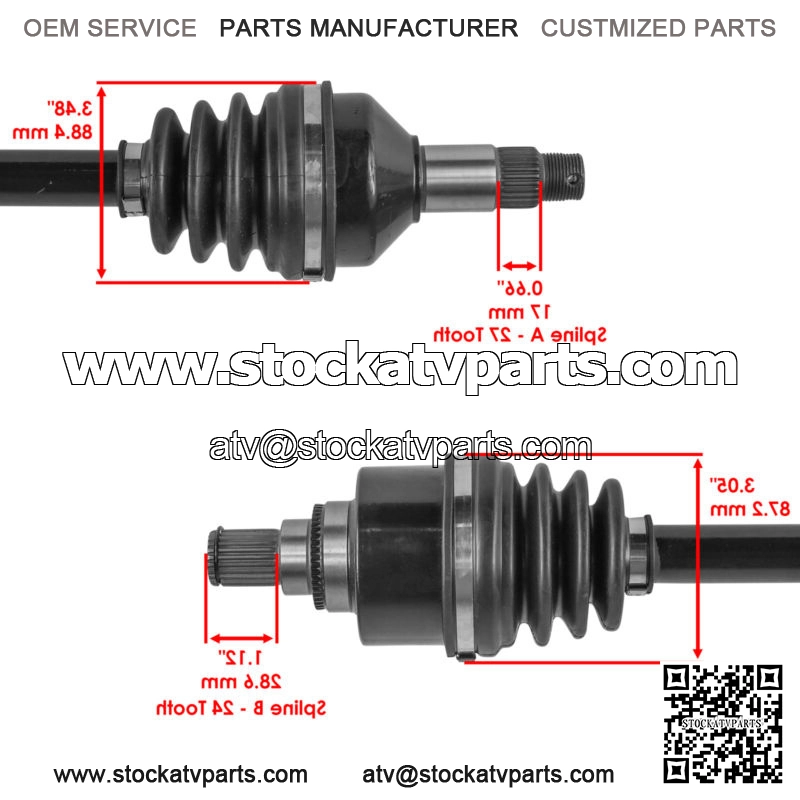

Spline A Length : 17 mm | 0.66 ”
Spline A Boot Width : 88.4 mm | 3.48 ”
Spline A – 27 Tooth
Spline B Length : 28.6 mm | 1.12 ”
Spline B Boot Width : 87.2 mm | 3.05 ”
Spline B – 24 Tooth

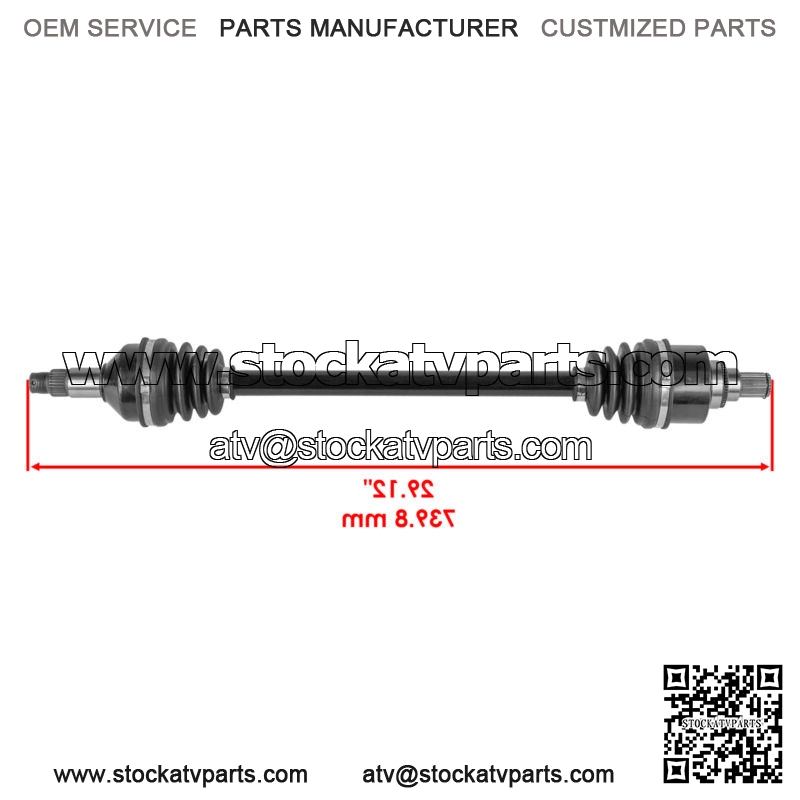

2x Rear Left Or Right CV Axles : 2502-355 2502-152Length : 739.8 mm | 29.12 ”

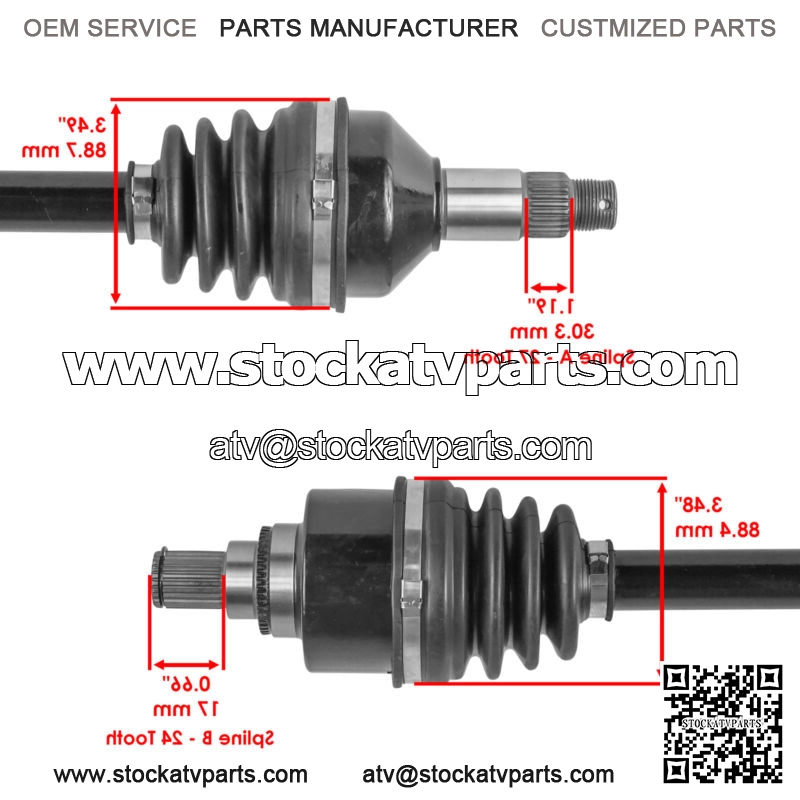

Spline A Length : 30.3 mm | 1.19 ”
Spline A Boot Width : 88.7 mm | 3.49 ”
Spline A – 27 Tooth
Spline B Length : 17mm | 0.66 ”
Spline B Boot Width : 88.4 mm | 3.48 ”
Spline B – 24 Tooth
**
