Product: CV Axles For Honda Foreman Rubicon DCT EPS TRX500FA 2019 Rear And Front

Premium Quality Replacement Part

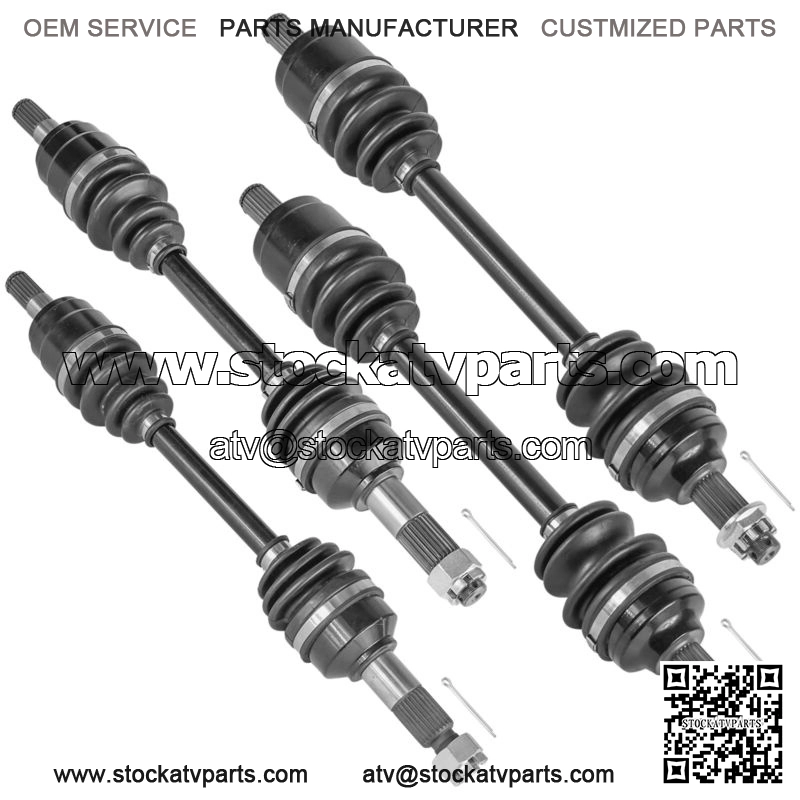

Rear And Front CV AxlesFor Honda Models:Foreman Rubicon DCT EPS TRX500FA 2019Order Includes:2x Rear Left Or Right CV Axles : 42250-HR6-A62 , 42250-HR6-A61

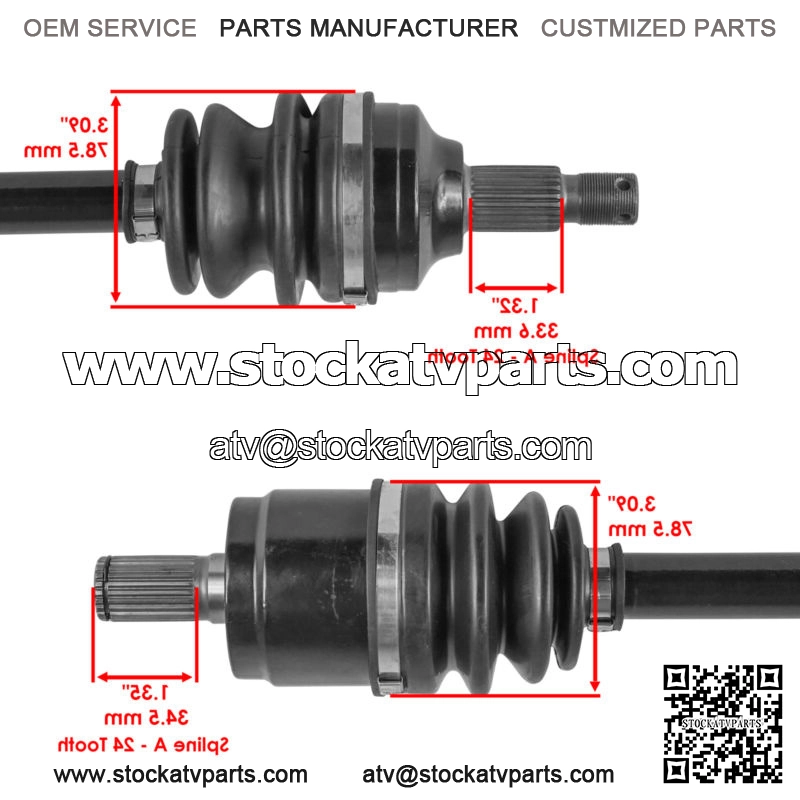

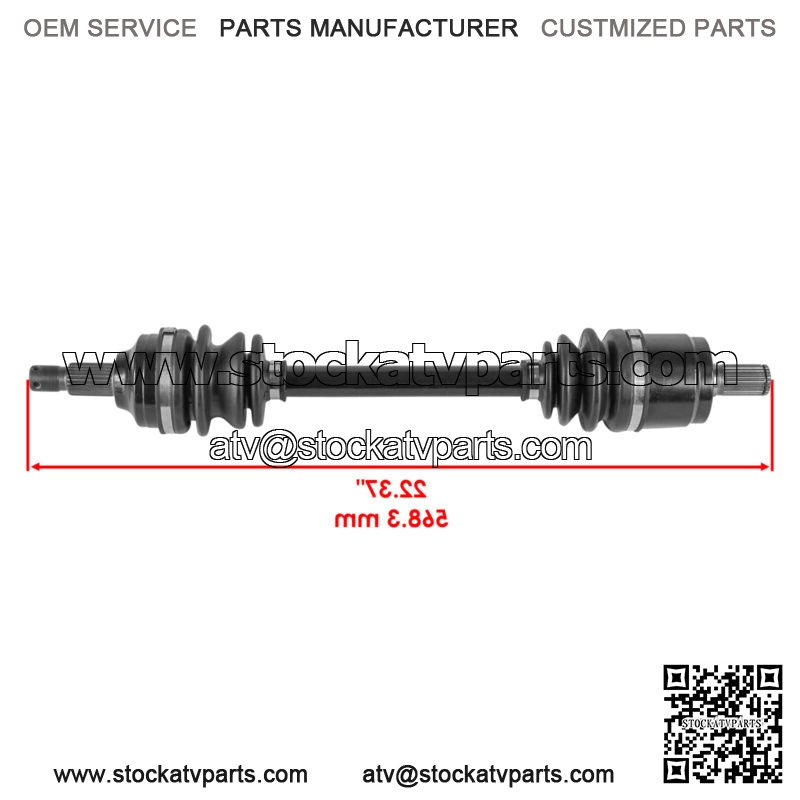

Length : 568.3 mm | 22.37 ”
Spline A Length : 33.6 mm | 1.32 ”
Spline A Boot Width : 78.5 mm | 3.09 ”
Spline A – 24 Tooth
Spline B Length : 34.5 mm | 1.35 ”
Spline B Boot Width : 78.5 mm | 3.09 ”
Spline B – 24 Tooth

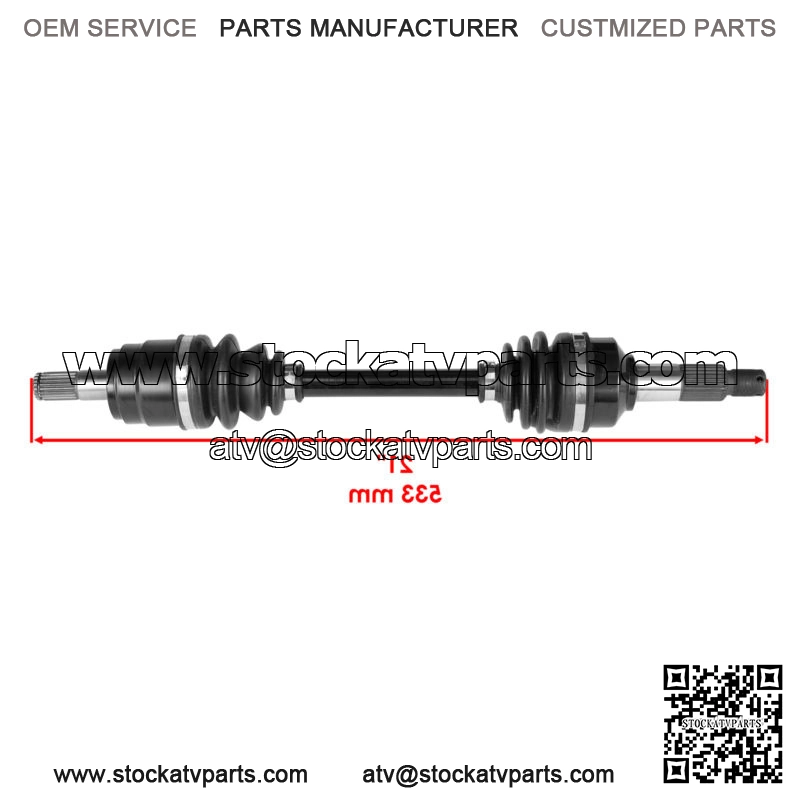

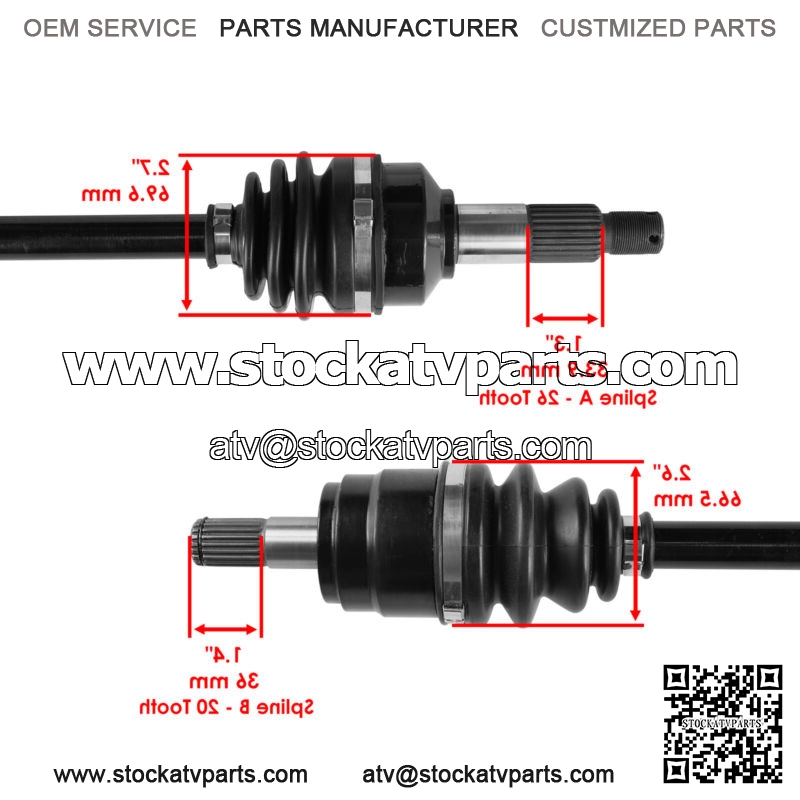

1x Front Right Axle : 44250-HR7-A81, 44250-HR4-A22Length : 533 mm | 21 ”
Spline A Length : 33.9 mm | 1.3 ”
Spline A Boot Width : 69.6 mm | 2.7 ”
Spline A – 26 Tooth
Spline B Length : 36 mm | 1.4 ”
Spline B Boot Width : 66.5 mm | 2.6 ”
Spline B – 20 Tooth
1x Front Left Axle : 44350-HR4-A22, 42250-HR6-A61Length : 520.7 mm | 20.5 ”
Spline A Length : 69.7 mm | 2.7 ”
Spline A Boot Width : 69.3 mm | 2.7 ”
Spline A – 26 Tooth
Spline B Length : 31 mm | 1.2 ”
Spline B Boot Width : 67.1 mm | 2.6 ”
Spline B – 20 Tooth
**
