CV Axles For John Deere Gator XUV UTV 865E 865M 835E 835M 835R 865R Rear/Front

SKU Z.15808 AUC13791, AM148111 Category Tags ,
Spread the love
Share on facebook
Share on twitter
Share on linkedin
Share on whatsapp
Share on telegram
Share on tumblr
Share on pinterest

Premium Quality Replacement Part
Front And Rear CV AxlesFor John Deere Models:Gator XUV UTV 865E 865M 835E 835M 835R 865ROrder Includes:
2x Front Left Or Right CV Joint Axles : AUC13791

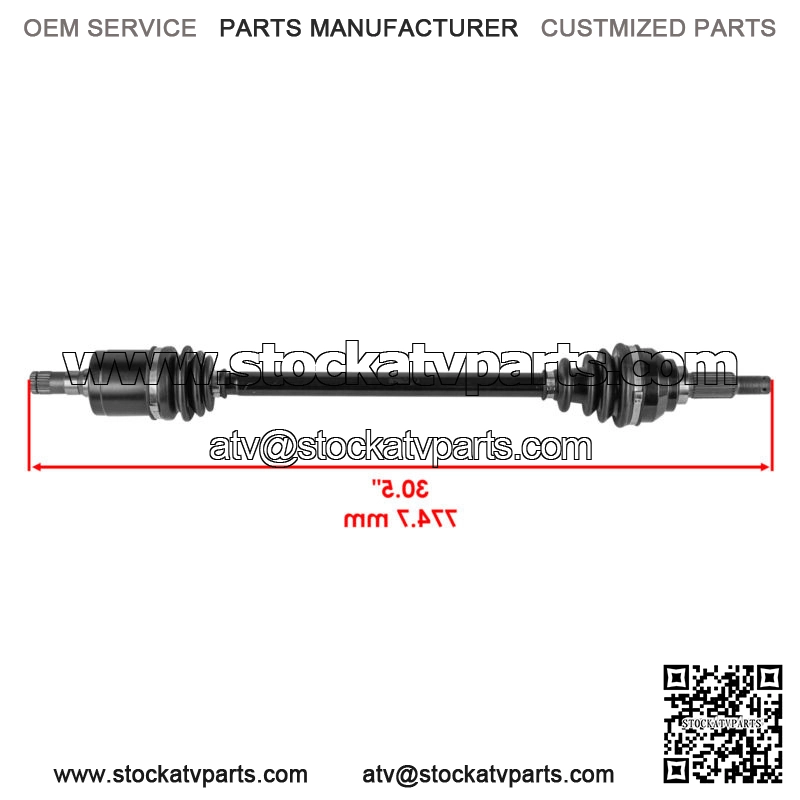

Length : 774.7 mm | 30.5 ”

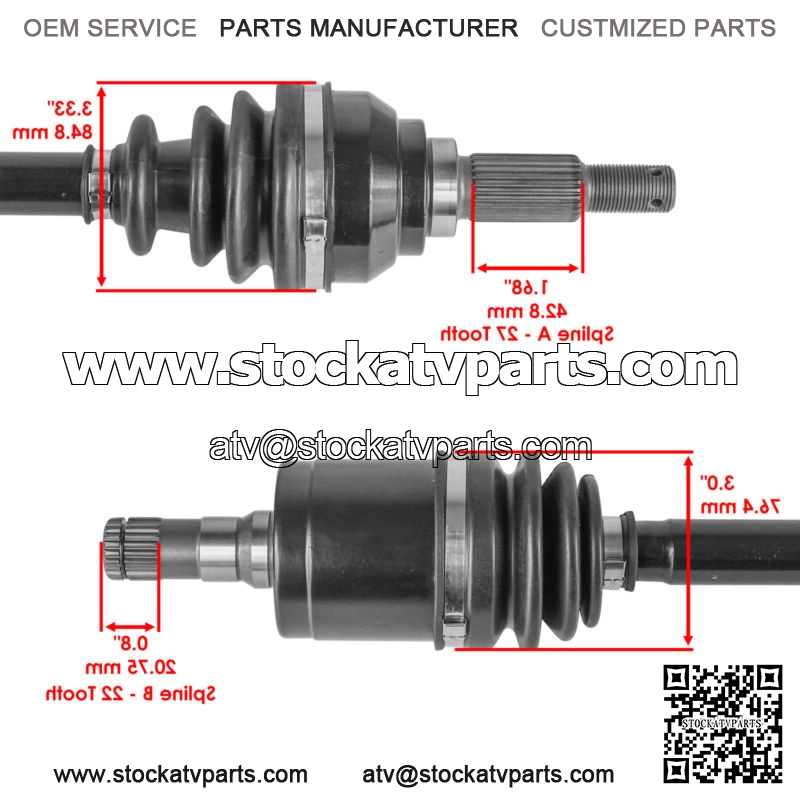

Spline A Length : 42.8 mm | 1.68 ”
Spline A Boot Width : 84.8 mm | 3.33 ”
Spline A – 27 Tooth
Spline B Length : 20.75 mm | 0.8 ”
Spline B Boot Width : 76.4 mm | 3.0 ”
Spline B – 22 Tooth
2x Rear Left Or Right CV Axles : AM148111Length : 787.4 mm | 31 ”
Spline A Length : 44.3 mm | 1.7 ”
Spline A Boot Width : 87 mm | 3.4 ”
Spline A – 27 Tooth
Spline B Length : 25 mm | 0.98 ”
Spline B Boot Width : 91 mm | 3.5 ”
Spline B – 28 Tooth
**
