Exhaust Pipe Muffler Gaskets w/Spring for Yamaha Grizzly 700 2007 / 3YF146130100

Exhaust Pipe Muffler Gaskets w/Spring for Yamaha Grizzly 700 2007 / 3YF146130100 - Image 2

Exhaust Pipe Muffler Gaskets w/Spring for Yamaha Grizzly 700 2007 / 3YF146130100 - Image 3

Exhaust Pipe Muffler Gaskets w/Spring for Yamaha Grizzly 700 2007 / 3YF146130100

SKU TH.04911 Category ATV Springs Tag spring

Premium Quality Replacement Part
Exhaust Pipe Muffler Gaskets w/Spring for Yamaha Grizzly 700 2007 / 3YF146130100
For Yamaha Models:
Grizzly 700 2007

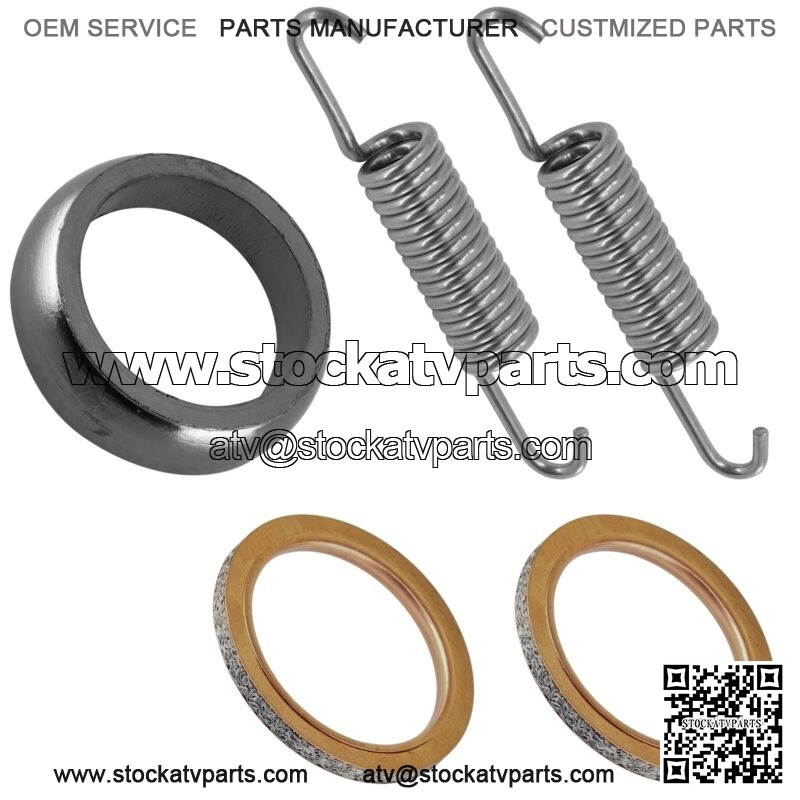

Order Includes:

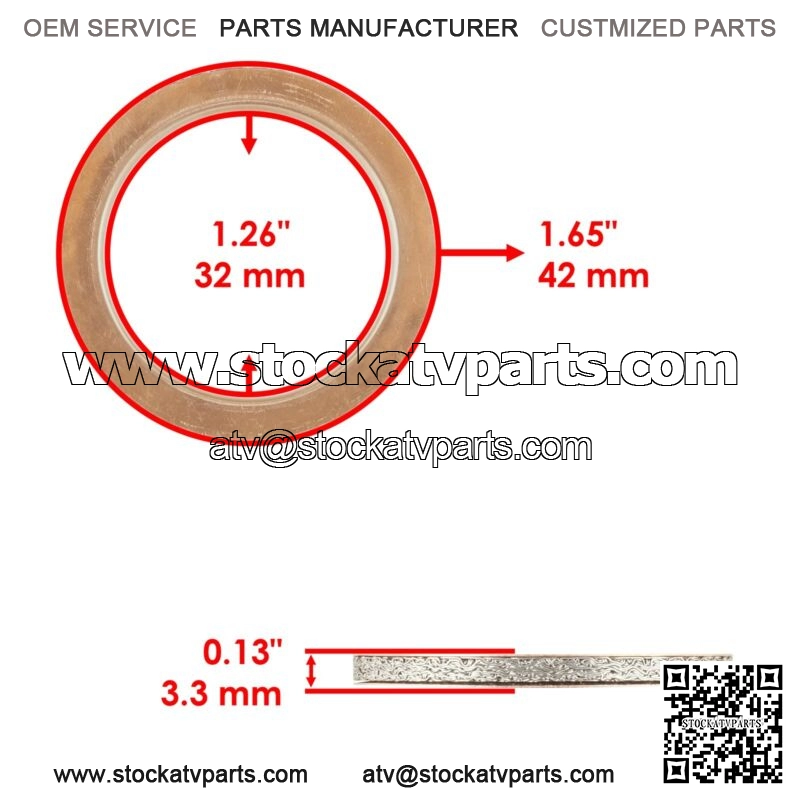

2 x Exhaust Head Pipe Gasket: 3YF-14613-01-00 5Y1-14613-00-00
Width: 0.13″ | 3.3 mm
Inner Diameter: 1.26″ | 32.0 mm
Outer Diameter: 1.65″ | 42.0 mm

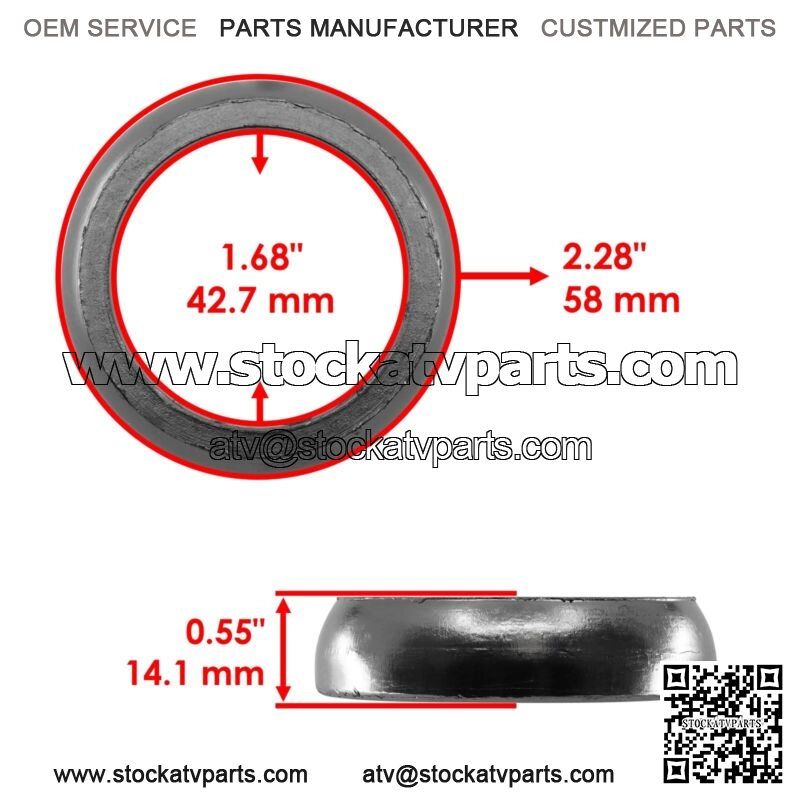

1 x Muffler Gasket: 3B4-14714-00-00
Width: 0.55″ | 14.1 mm
Inner Diameter: 1.68″ | 42.7 mm
Outer Diameter: 2.28″ | 58.0 mm

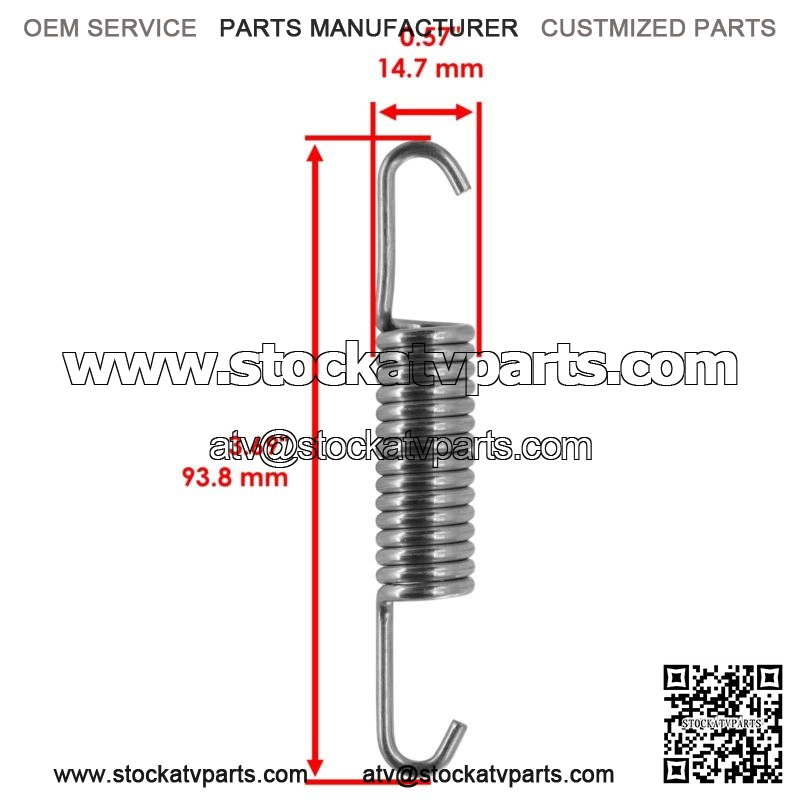

2 x Exhaust Tension Spring: 90506-26010-00
Length: 3.69″ | 93.8 mm
Diameter: 0.57″ | 14.7 mm
**
