Premium Quality Replacement Part
Exhaust Valve Kit for Kawasaki 12005-2093 49078-2082 92049-2109 12011-2056
For Kawasaki Models:
Mule 3000 KAF620G 2007-2008
Mule 3010 KAF620 4×4 2007-2008
Mule 4000 KAF620 4×4 2009-2023
Mule 4000 Trans KAF620 2018-2021
Mule 4010 4×4 2009-2023
Mule 4010 Trans KAF620 4×4 2015-2023

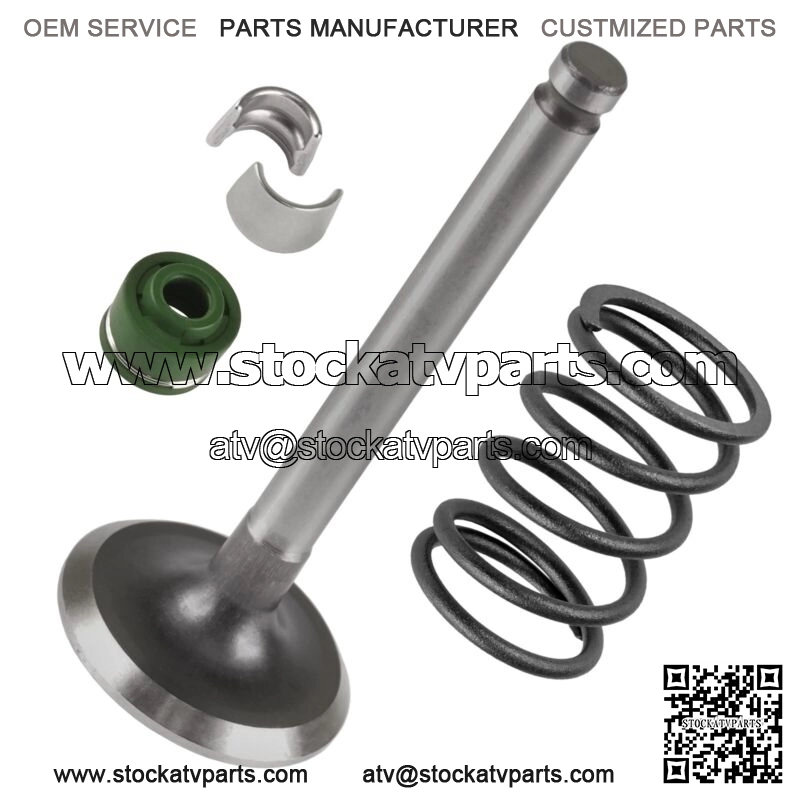

Order Includes:

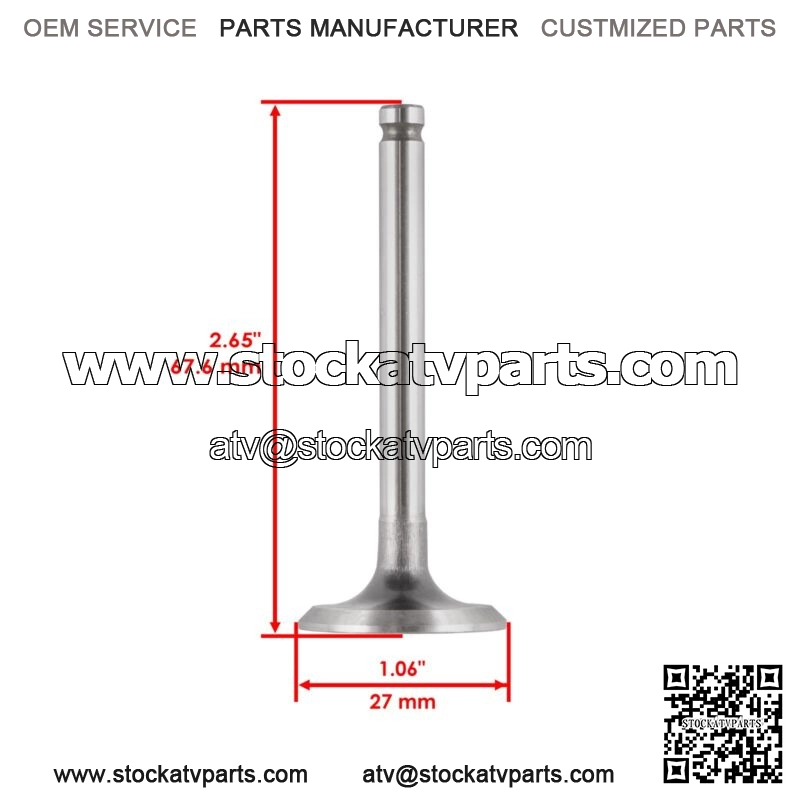

1 x Exhaust Valve: 12005-2093
Length: 1.06″ | 27.0 mm
Diameter: 2.65″ | 67.6 mm

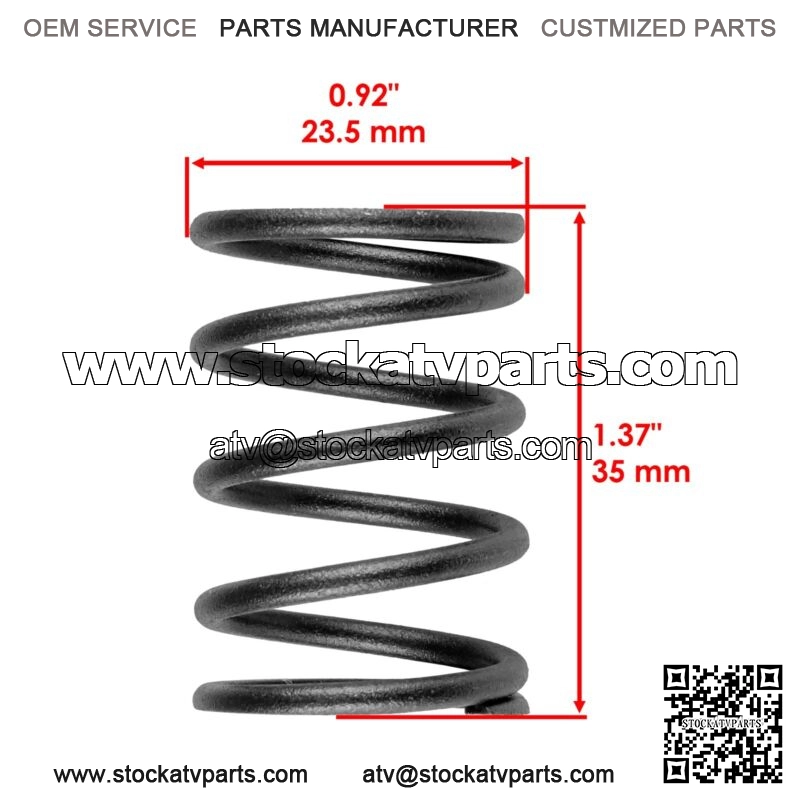

1 x Valve Spring: 49078-2082
Width: 0.92″ | 23.5 mm
Height: 1.37″ | 35.0 mm

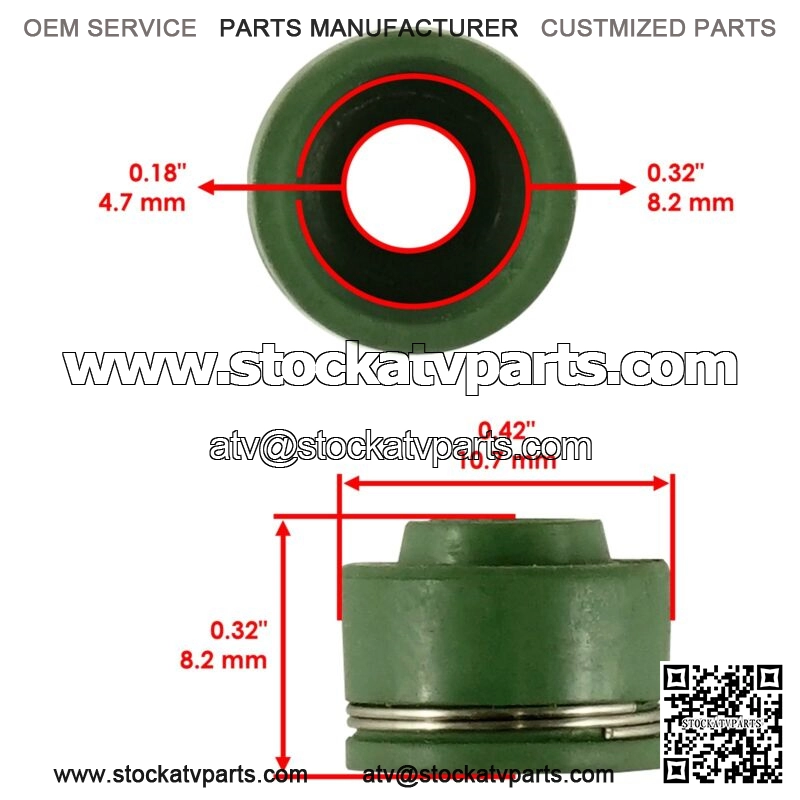

1 x Valve Stem Seal: 92049-2109
Length: 0.42″ | 10.7 mm
Width: 0.32″ | 8.2 mm
Inner Diameter: 0.18″ | 4.7 mm
Outer Diameter: 0.32″ | 8.2 mm

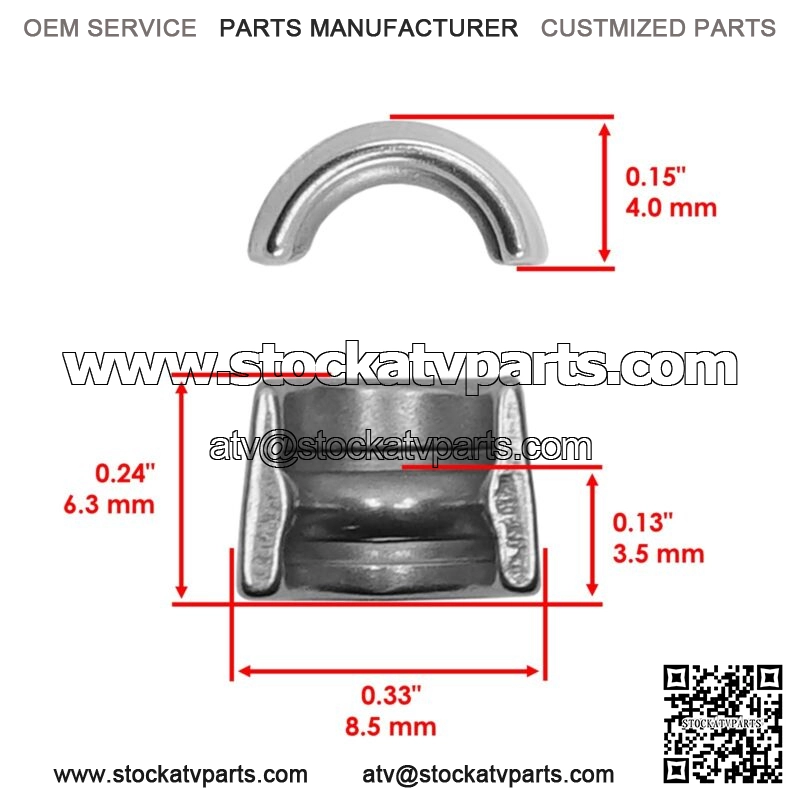

2 x Valve Cotter: 12011-2056
Width: 0.15 ” | 4.0 mm
Length: 0.33 ” | 8.5 mm
Height: 0.24 ” | 6.3 mm
**
