Premium Quality Replacement Part
Exhaust Valve kit for Yamaha Grizzly 400 YFM400 4×4 2007-2008 / 5GH-12121-00-00
For Yamaha Models:
Grizzly 400 YFM400 4×4 2007-2008
Order Includes:
1 x Exhaust Valve: 5GH-12121-00-00
Exhaust Valve Length: 1.33″ | 34.0 mm
Exhaust Valve Diameter: 3.93″ | 100.0 mm
1 x Inner Valve Spring: 22U-12113-00-00
Width: 0.84″ | 21.4 mm
Height: 1.55″ | 39.6 mm
Thickness: 0.11″ | 2.9 mm

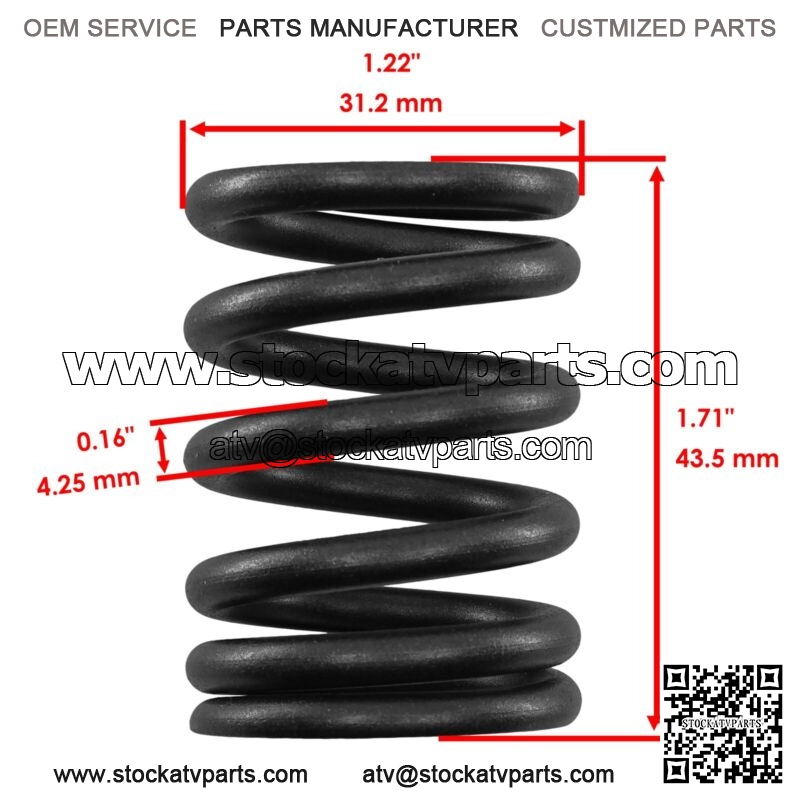

1 x Outer Valve Spring: 1UY-12114-01-00
Width: 1.22″ | 31.2 mm
Height: 1.71″ | 43.5 mm
Thickness: 0.16″ | 4.25 mm
1 x Valve Stem Seal: M01-12129-00-00
Length: 0.47″ | 12.0 mm
Width: 0.35″ | 9.0 mm
Inner Diameter: 0.18″ | 4.7 mm
Outer Diameter: 0.37″ | 9.4 mm
2 x Valve Cotter: 1J7-12118-00-00
Width: 0.16 ” | 4.2 mm
Length: 0.37 ” | 9.5 mm
Height: 0.27 ” | 7.0 mm
**
