Product: Front A-Arm Bushing Ball Joint Kit For Polaris Sportsman XP 550 / XP 850 2009

Premium Quality Replacement Part
Front Upper & Lower Left Right A-Arm Bushing Ball Joint Kit
For Polaris Models:
Sportsman XP 550 Touring 2009
Sportsman XP 850 EFI EPS 2009

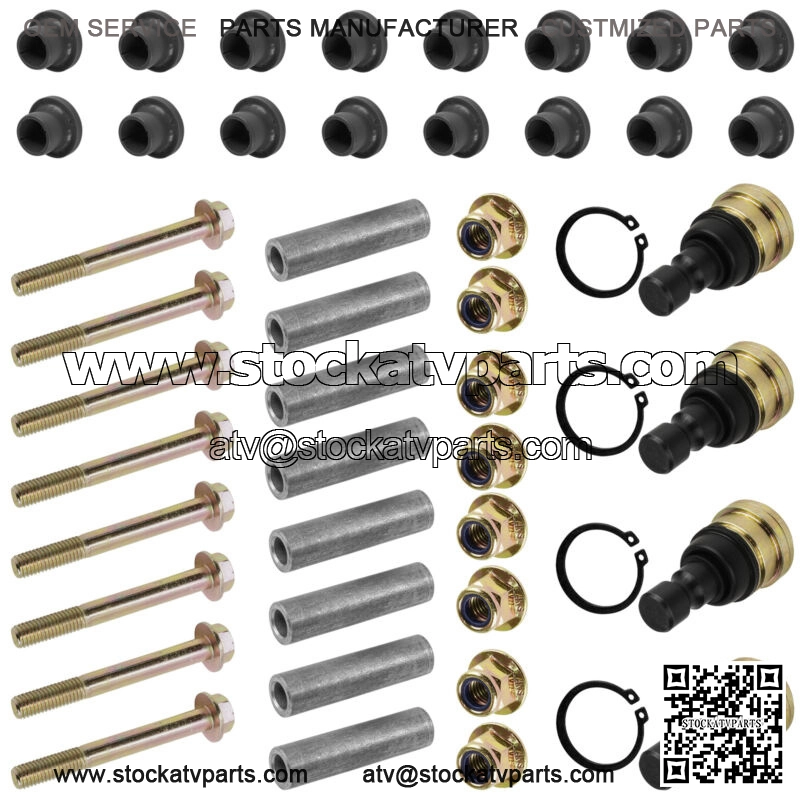

Order Includes:

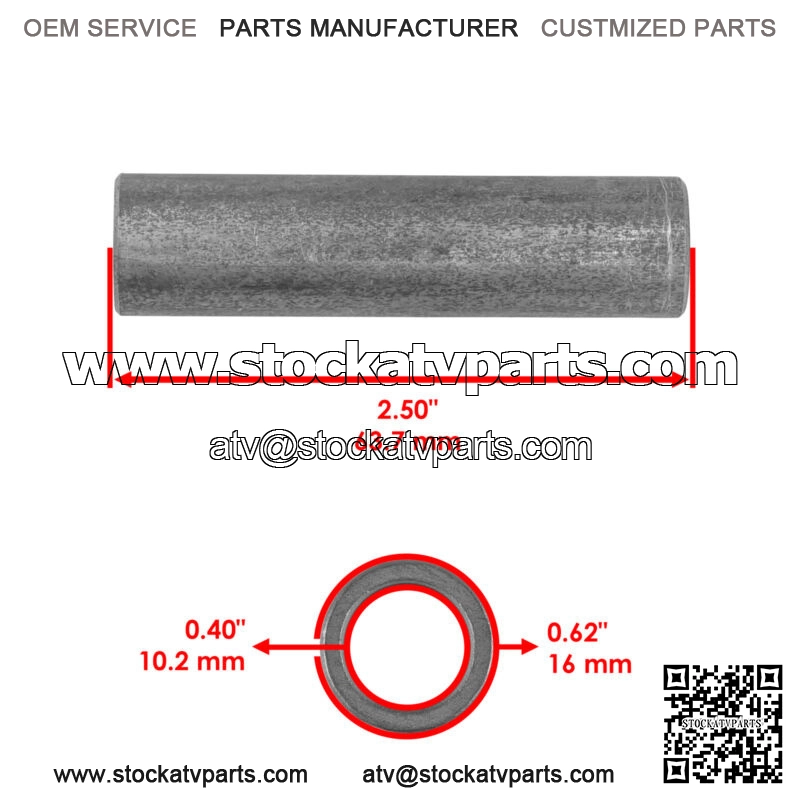

8 x Pivot Shaft | 5135270
Length : 63.7mm | 2.50″
Inner Diameter: 10.2mm | 0.40″
Outer Daimeter: 16mm | 0.62″

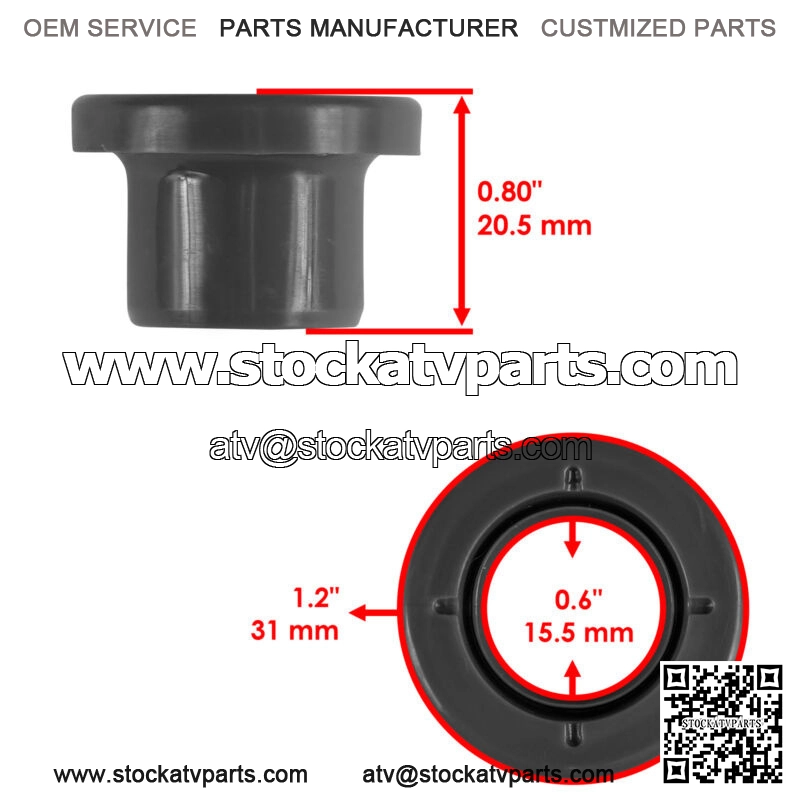

16 x Short Bushing | 5436798
Length: 20.5mm | 0.8″
Inner Diameter: 15.5mm | 0.6″
Outer Daimeter: 31mm | 1.2″

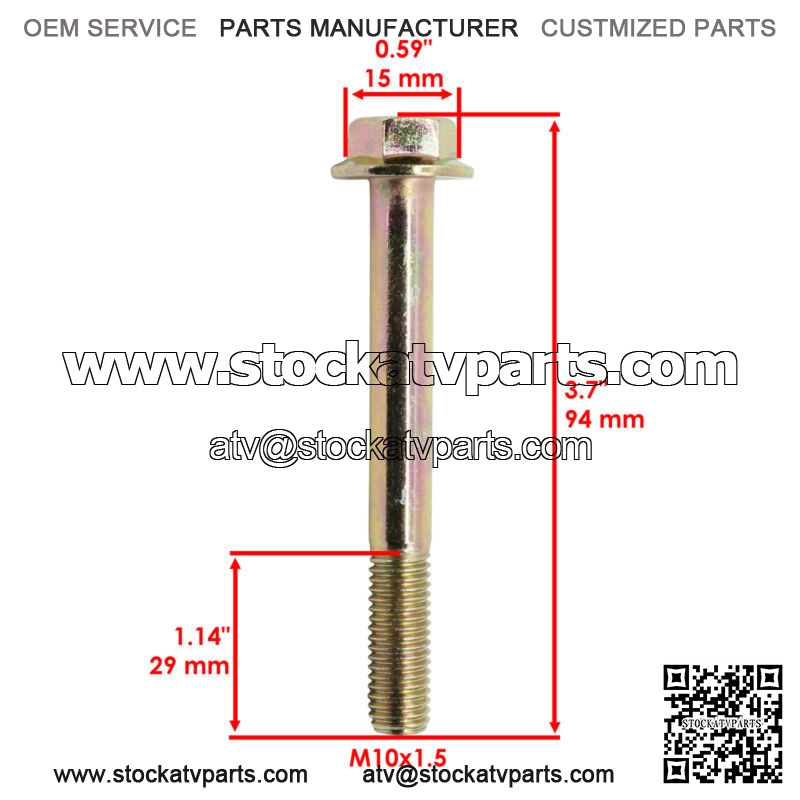

8 x Bolt | 7518466
Length: 94 mm | 3.7″
Across Corners: 15 mm | 0.59″
Thread Length: 29 mm | 1.14″
Thread Size: M10x1.5
8 x Nut | 7547313
Height: 13mm | 0.51″
Inner Diameter : 8.5mm | 0.33″
Outer Diameter : 21.5mm | 0.84″
Thread Size : M10X1.5
4x Ball Joints | 7061220 7082507 7081924 7081665 7081859 7081991 7061187 7081505 7081580 7081666
Height: 65.5mm | 2.57″
Upper Diameter: 16 mm | 0.63″
Lower Diameter: 31 mm | 1.22″
Note: Installs On Location (A) (B) (C) (D) In Second Picture
A-Arm Part Number
Front Upper Left: 1015125-067 1025617-067 1017260-067
Front Upper Right: 1015126-067 1025618-067 1017261-067
Front Lower Left: 1016737-067 1019810-067 1017156-067
Front Lower Right: 1016738-067 1019811-067 1017157-067
Knuckle Left: 2204254 Right: 2204255
