Product: Front and Rear Brake Disc Rotor and Pads For Yamaha Kodiak 450 YFM450F 2005-2006

Premium Quality Replacement Part
FRONT and REAR BRAKE DISC ROTOR and BRAKE PADS
Compatible with Following YAMAHA Models:Kodiak 450 YFM450 4X4 2005-2006
Part Number:

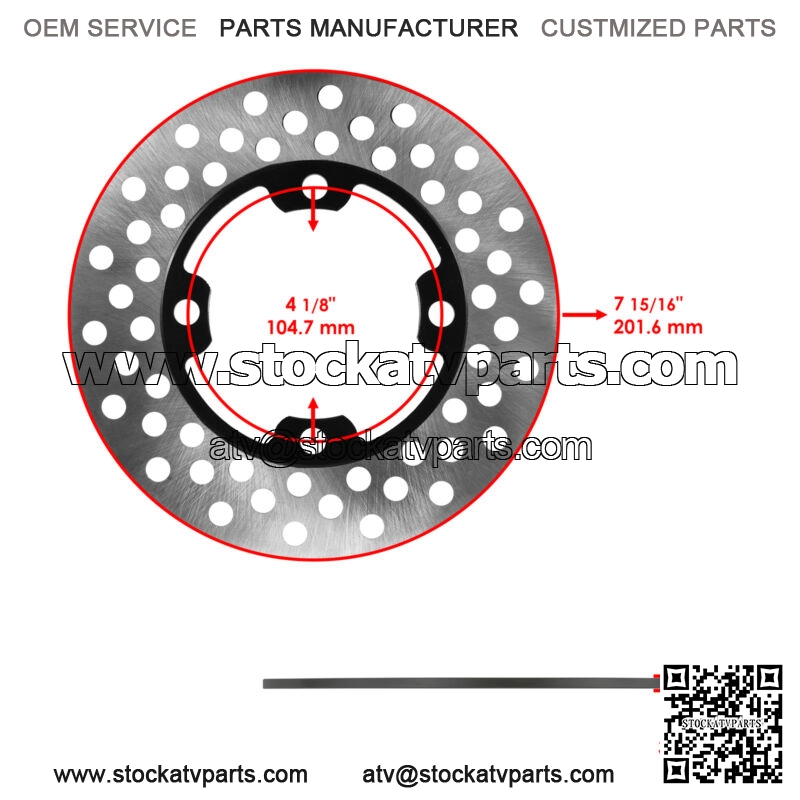

Brake Disc Rotor
1D9-F5831-00-00 (Rear)5ND-F582T-00-00 (Front)

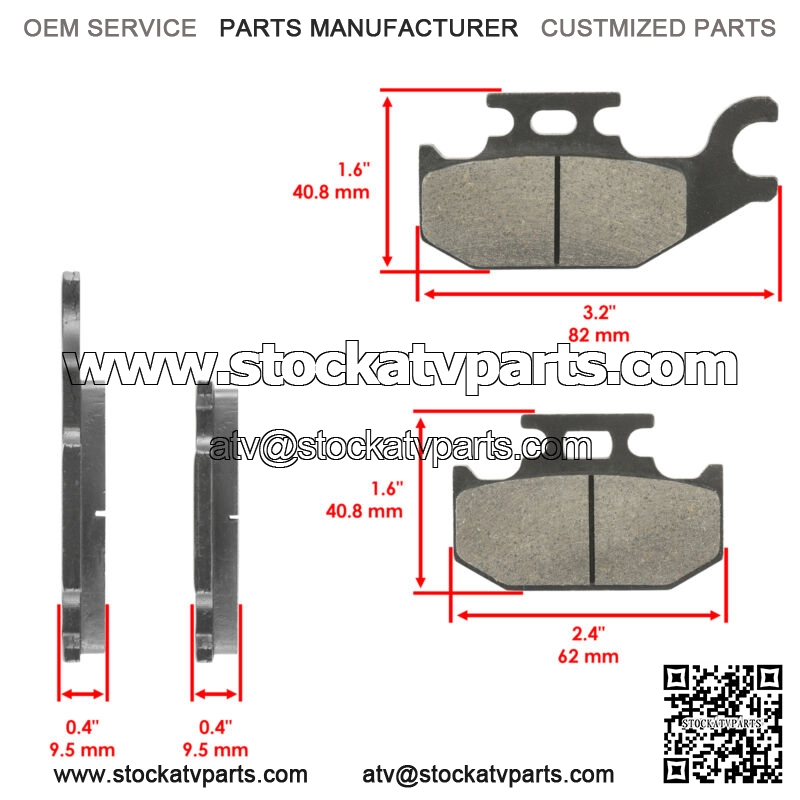

Brake Pad
1D9-W0046-00-00 (Rear)3GD-W0045-00-00 3GD-W0045-01-00 (Front)
Dimensions:
Front Inner Diameter: 4 1/8″ | 104.7mmFront Ourer Diameter: 7 15/16″ | 201.6mmRear Inner Diameter: 4.96″ | 126mmRear Outer Diameter: 8 5/8″ | 219mmFront Disc Thickness 0.15″ | 3.9mmRear Disc Thickness 0.13″ | 3.45Front Brake Pad Thickness 0.3″ | 7mmRear Brake Pad Thickness 0.4″ | 9.5mm Order Includes:2x Front Brake Rotor Disc
1x Rear Brake Rotor Disc3x Brake Pads Set
**
