Product: Ignition Charging Coil Stator Plate for Cub Cadet Kawasaki 59031-7009

Premium Quality Replacement Part
Ignition Charging Coil Stator Plate for Cub Cadet Kawasaki 59031-7009
For Lawn Mower Models:
Cub Cadet 1525 with Kawasaki FH430V Engine
Cub Cadet 1527 with Kawasaki FH500V
Cub Cadet 1529 Kawasaki FH580V
ENFORCER 44 with Kawasaki FH580V Engine
ENFORCER 48 with Kawasaki FH641V
ENFORCER 54 with Kawasaki FH680V
H1748 WAM with Kawasaki FH541V Engine
H1952 WAM with Kawasaki FH580V Engine
HF1748 WAM with Kawasaki FH500V Engine
HF1954 WAM with Kawasaki FR6500V Engine
M48-KW Tank with Kawasaki FH601V Engine
M54-KW Tank with FH680V Engine
M60-KW Tank with kawasaki FH721 Engine
M72-KW Tank with Kawasaki FX1000V Engine
RZT-54 Kawasaki FR691 & FH721 Engines
S6031-KW LP Tank S with Kawasaki FX850V Engine
S6031-KW Tank S with Kawasaki FX850V Engine
S7237-KW LP Tank S with Kawasaki FX1000V Engine
S7237-KW Tank S with Kawasaki FX1000V Engine
Order Includes:
1x Ignition Charging Coil Stator
Replaces OEM
KM-59031-7009
59031-7009
KM-59031-7014
59031-7014

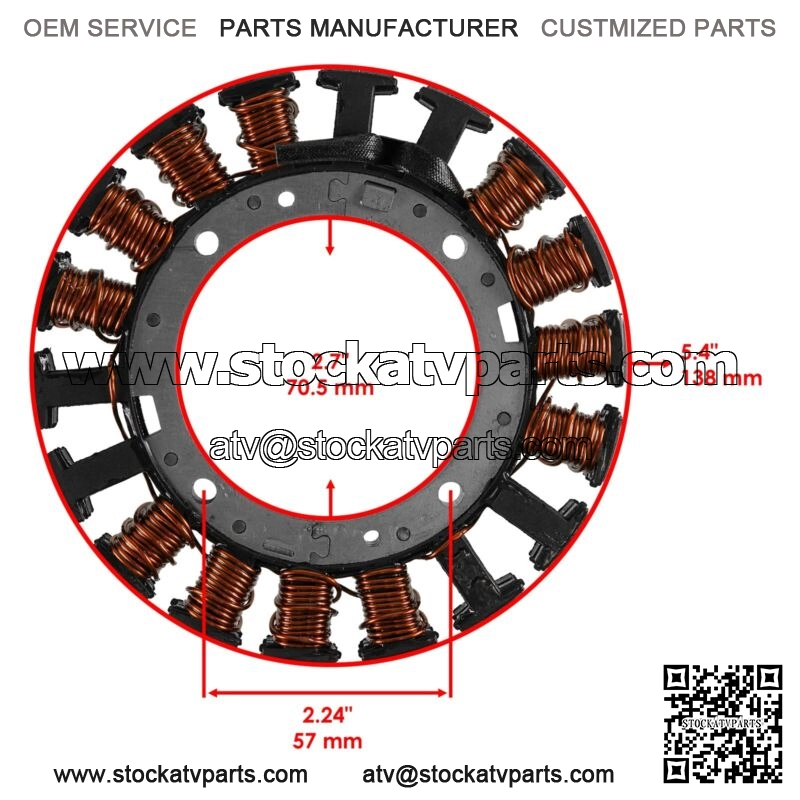

Specs & Dimensions:
138mm OD x 70.5mm ID
12 Pole 2 Wire Stator Plate
57mm Bolt Hole Spacing
Four (4) Bolt Holes
**
