Product

Premium Quality Replacement Part
Intake Valve Kit for Can-Am CanAm Outlander Max 1000 2014-2015 2021-2022
For Can-Am Models:
Outlander Max 1000 2014-2015 2021-2022

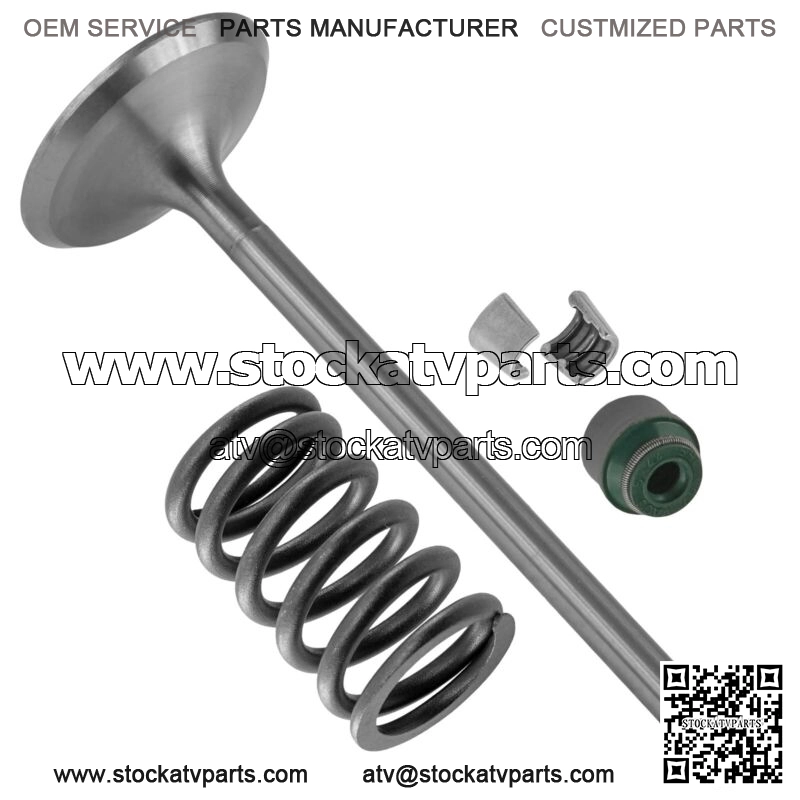

Order Includes:

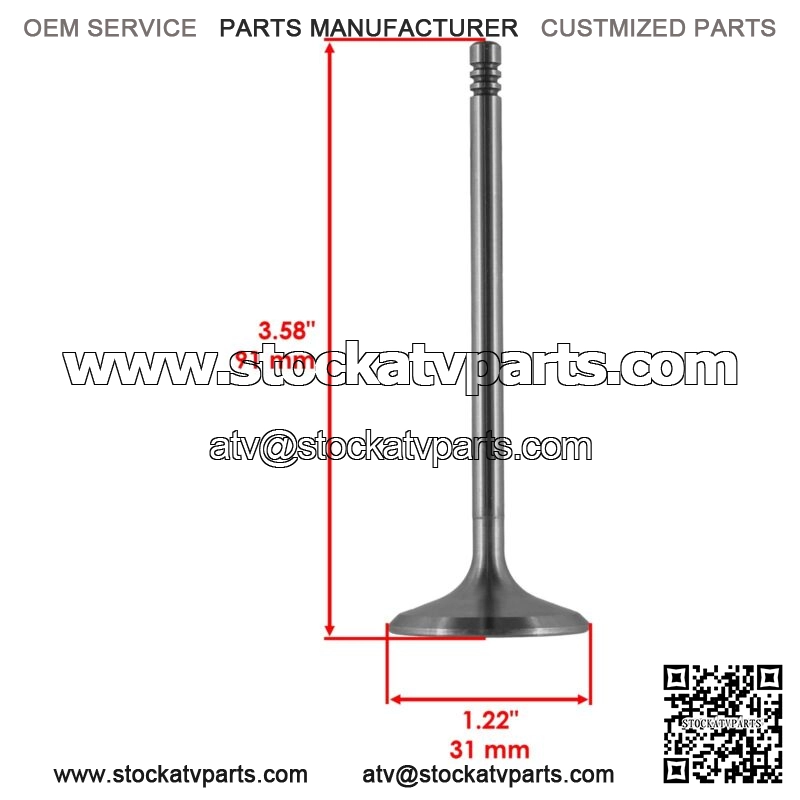

1 x Intake Valve: 420254359 420254354
Intake Valve Length: 1.22″ | 31.0 mm
Intake Valve Diameter: 3.58″ | 91.0 mm

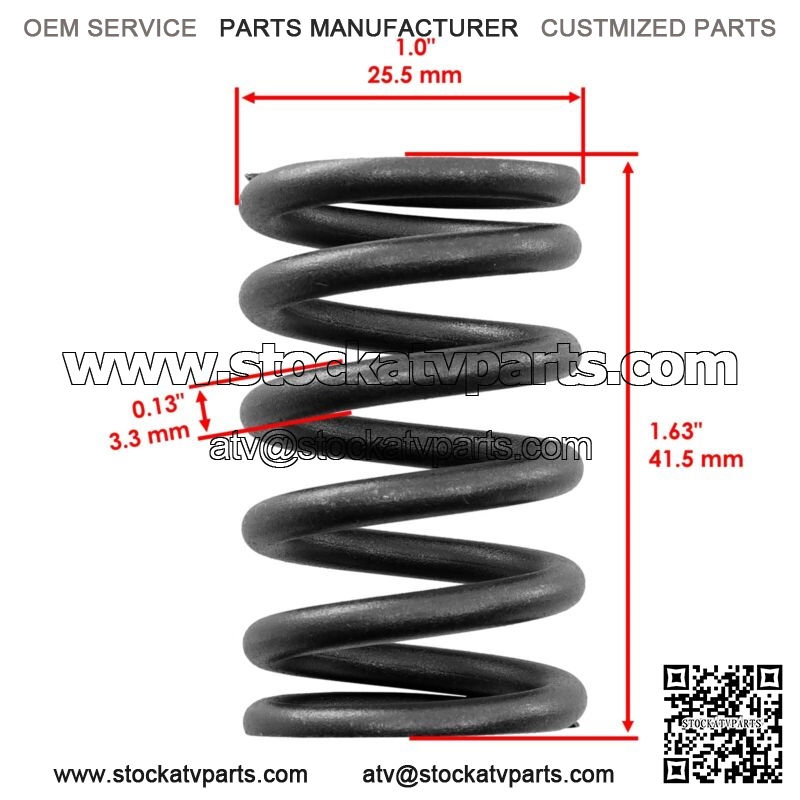

1 x Valve Spring: 420239295
Width: 1.0″ | 25.5 mm
Height: 1.63″ | 41.5 mm
Thickness: 0.13″ | 3.3 mm

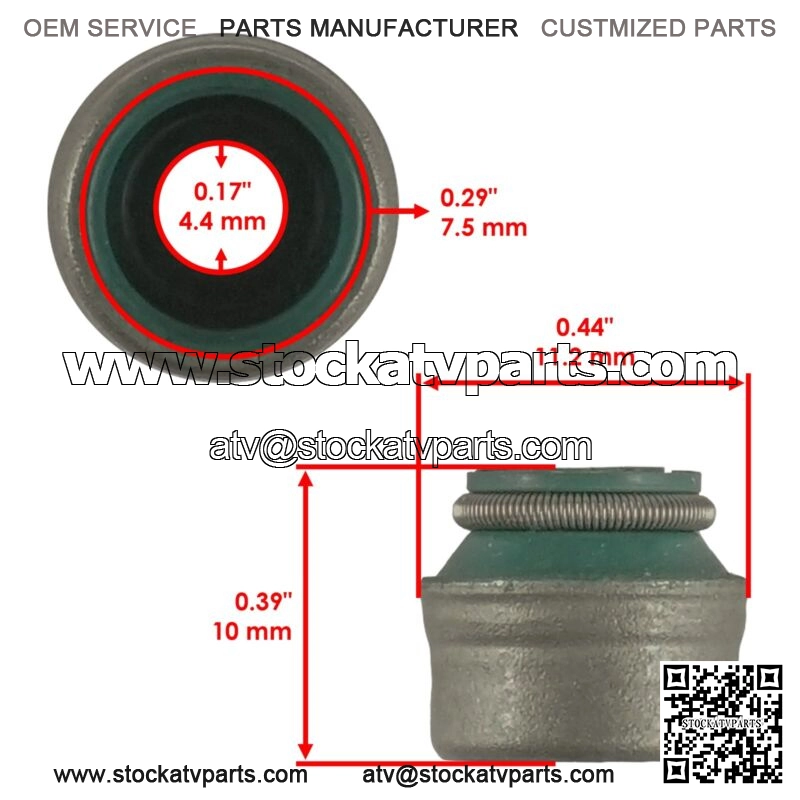

1 x Valve Stem Seal: 420230515
Length: 0.44″ | 11.2 mm
Width: 0.39″ | 10.0 mm
Inner Diameter: 0.17″ | 4.4 mm
Outer Diameter: 0.29″ | 7.5 mm

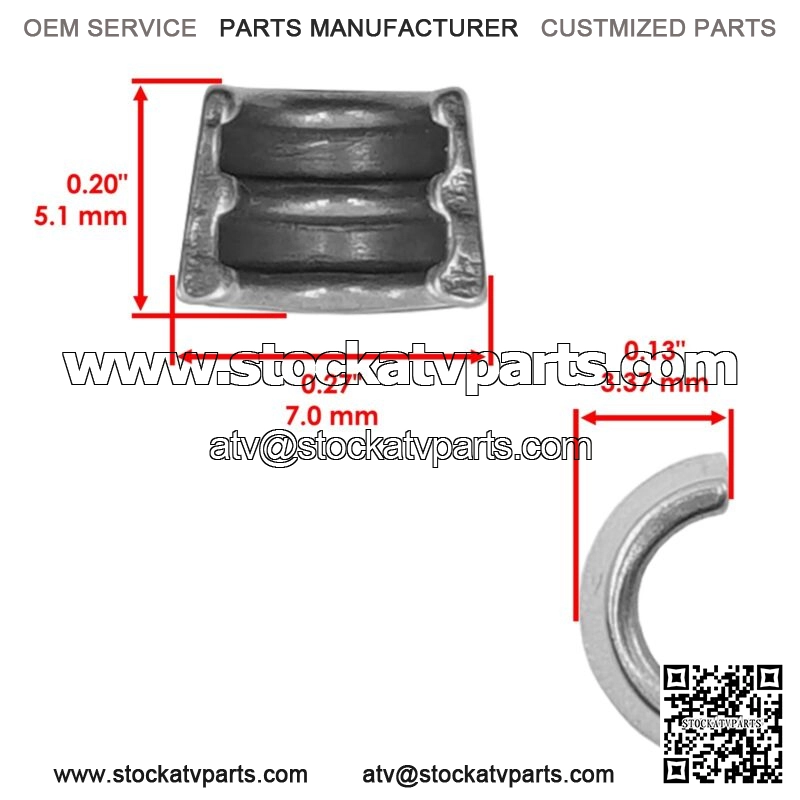

2 x Valve Cotter: 420254120
Width: 0.13 ” | 3.37 mm
Length: 0.27 ” | 7.0 mm
Height: 0.20 ” | 5.1 mm
**
