Product

Premium Quality Replacement Part
Intake Valve Kit for Suzuki DRZ400S 2000 2001 2002 2003 2004-2009 2011-2019
For Suzuki Models:
DRZ400S 2000-2009 2011-2019
Order Includes:
2 x Intake Valve: 12911-29F00
Intake Valve Length: 1.41″ | 36.0 mm
Intake Valve Diameter: 3.22″ | 82.0 mm

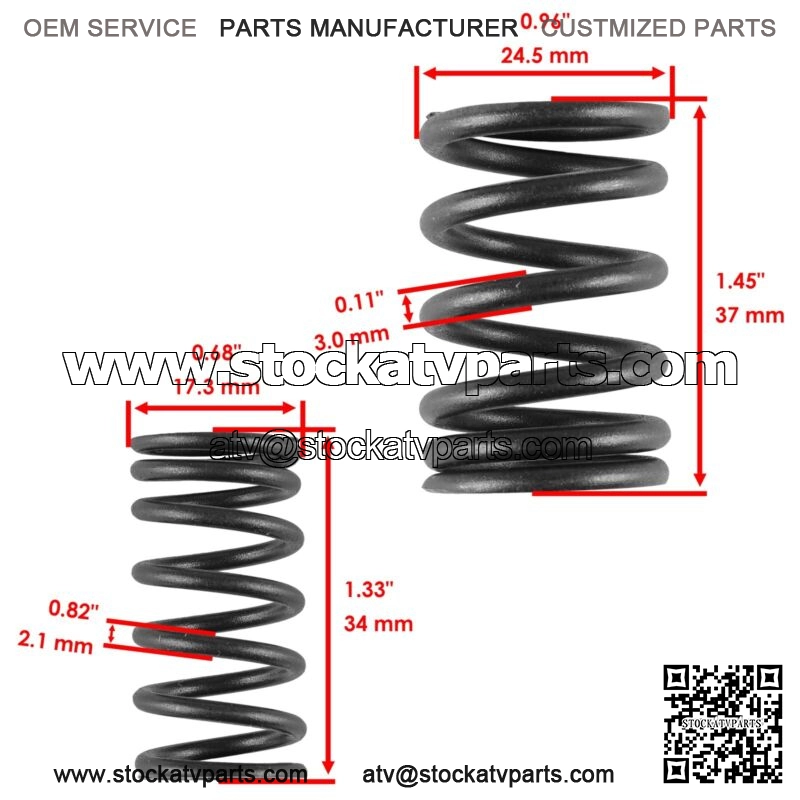

2 x Valve Spring Set: 12920-29F00
Outer Valve Spring Width: 0.96″ | 24.5 mm
Outer Valve Spring Height: 1.45″ | 37.0 mm
Outer Valve Spring Thickness: 0.11″ | 3.0 mm
Inner Valve Spring Width: 0.68″ | 17.3 mm
Inner Valve Spring Height: 1.33″ | 34.0 mm
Inner Valve Spring Thickness: 0.082″ | 2.1 mm

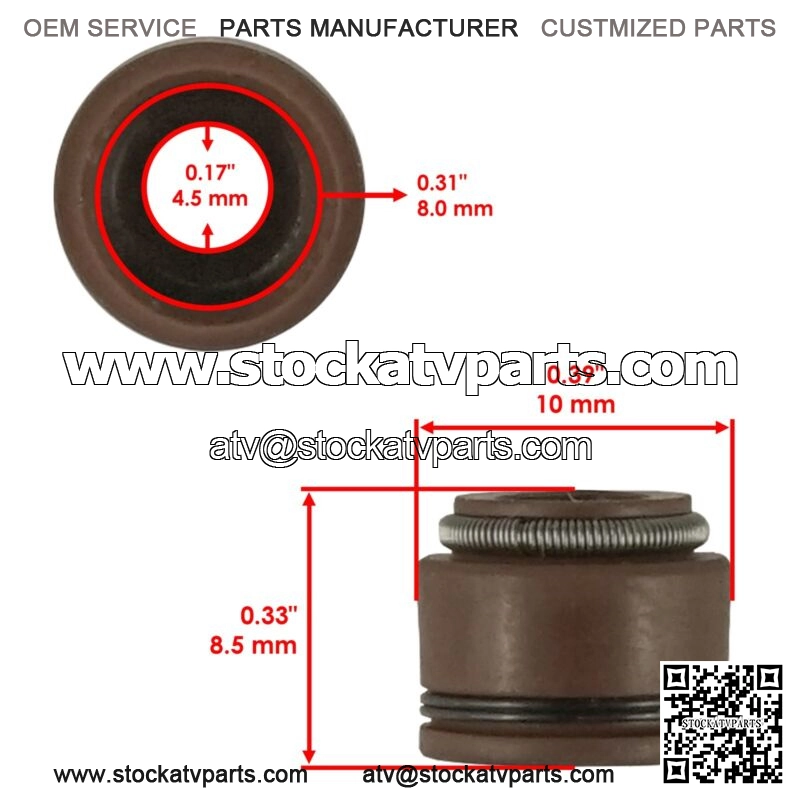

2 x Valve Stem Seal: 09289-05011
Length: 0.39″ | 10.0 mm
Width: 0.33″ | 8.5 mm
Inner Diameter: 0.17″ | 4.5 mm
Outer Diameter: 0.31″ | 8.0 mm
4 x Valve Cotter: 12932-24F00
Width: 0.15 ” | 4.0 mm
Length: 0.31 ” | 8.0 mm
Height: 0.25 ” | 6.4 mm
2 x Valve Tappet: 12891-02F00 12891-02F10
Height: 0.76″ | 19.5 mm
Inner Diameter: 1.0″ | 26.0 mm
Outer Diameter: 1.1″ | 28.0 mm
**
