Product

Premium Quality Replacement Part
Intake Valve Kit for Yamaha Grizzly 700 YFM700 4×4 2008 2009-2015 2019-2022
For Yamaha Models:
Grizzly 700 YFM700 4×4 2008-2015 2019-2022

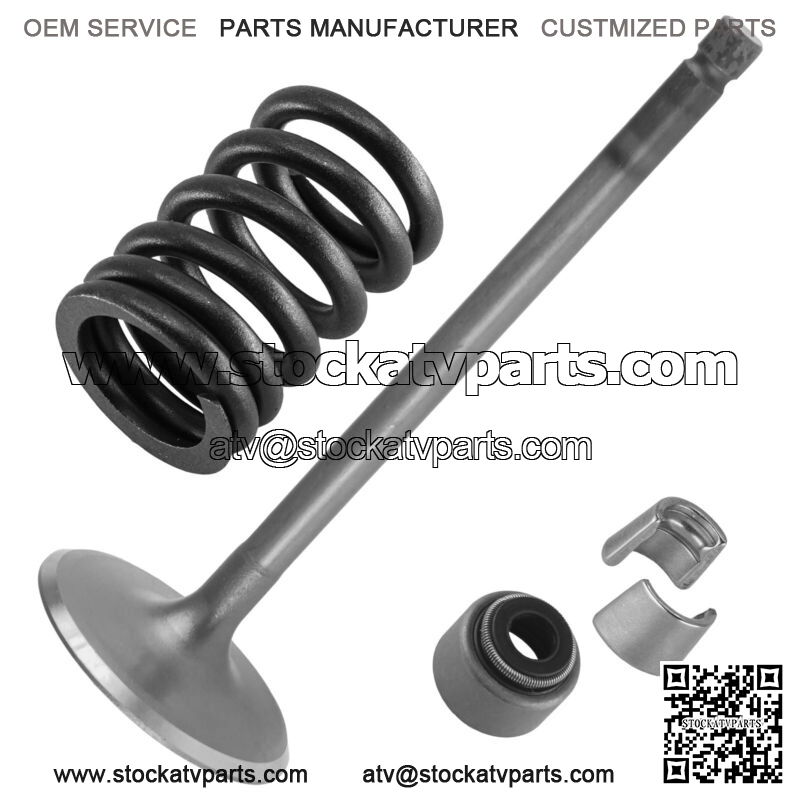

Order Includes:
1 x Intake Valve: 5VK-12111-00-00
Intake Valve Length: 1.49″ | 38.0 mm
Intake Valve Diameter: 4.01″ | 102.0 mm

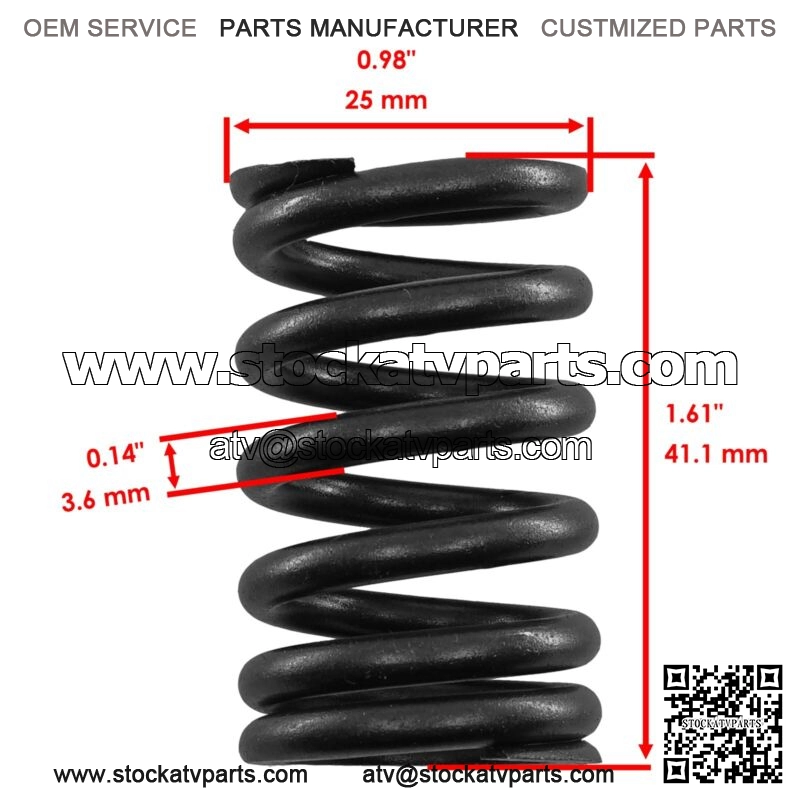

1 x Inner Valve Spring: 5VK-12113-00-00
Width: 0.98″ | 25.0 mm
Height: 1.61″ | 41.1 mm
Thickness: 0.14″ | 3.6 mm

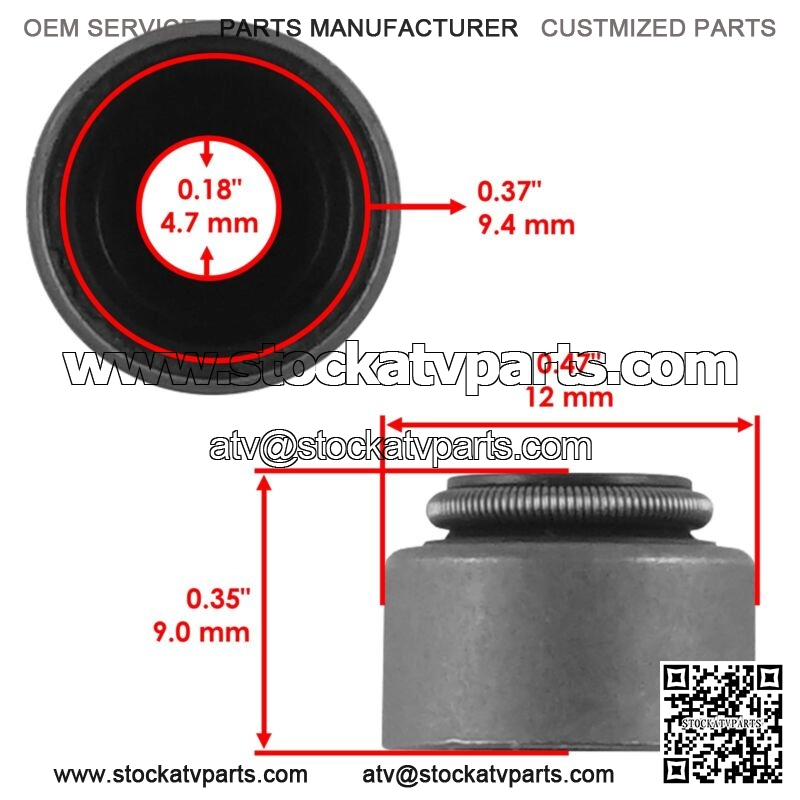

1 x Valve Stem Seal: 5H0-12119-00-00
Length: 0.47″ | 12.0 mm
Width: 0.35″ | 9.0 mm
Inner Diameter: 0.18″ | 4.7 mm
Outer Diameter: 0.37″ | 9.4 mm

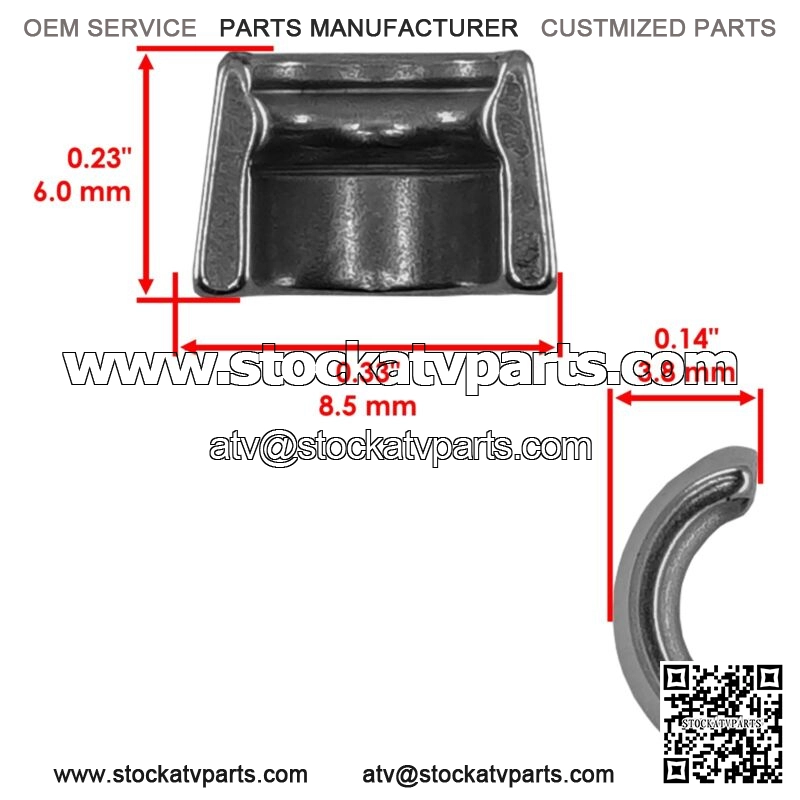

2 x Valve Cotter: 4G0-12118-00-00
Width: 0.14 ” | 3.8 mm
Length: 0.33 ” | 8.5 mm
Height: 0.23 ” | 6.0 mm
**
