Product

Premium Quality Replacement Part
Intake Valve Kit for Yamaha Raptor 350 2004 2005 2006 2007 2008 2009 2010-2013
For Yamaha Models:
Raptor 350 2004-2013

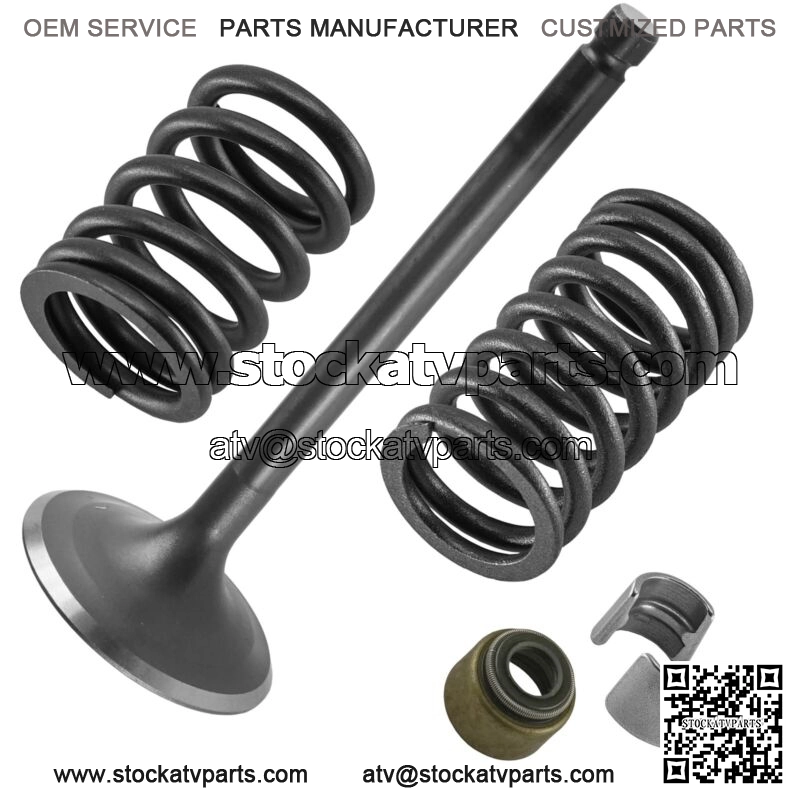

Order Includes:

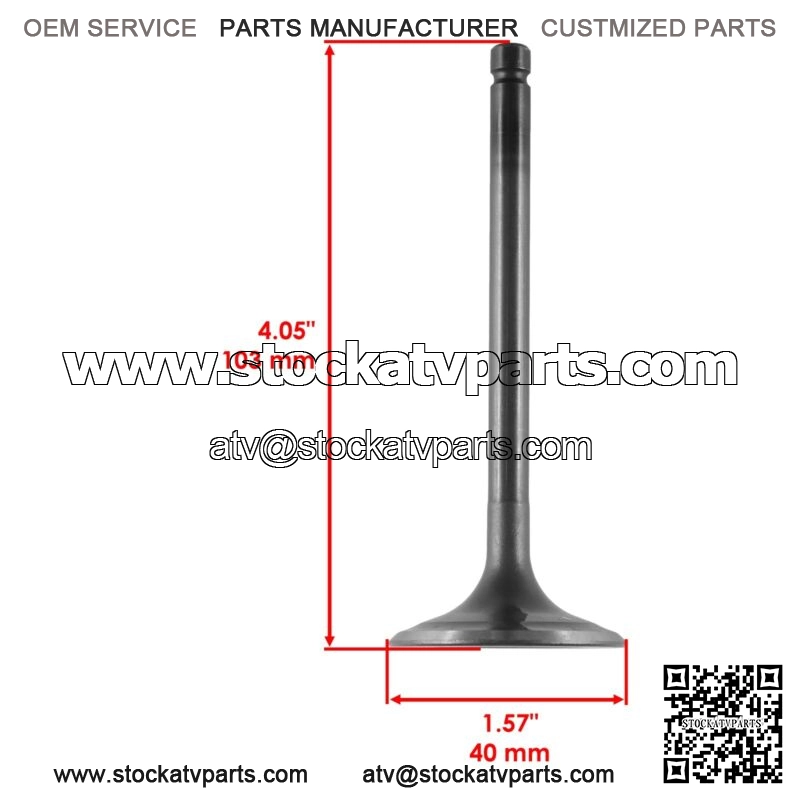

1 x Intake Valve: 1UY-12111-01-00 1UY-12111-00-00
Intake Valve Length: 1.57″ | 40.0 mm
Intake Valve Diameter: 4.05″ | 103.0 mm

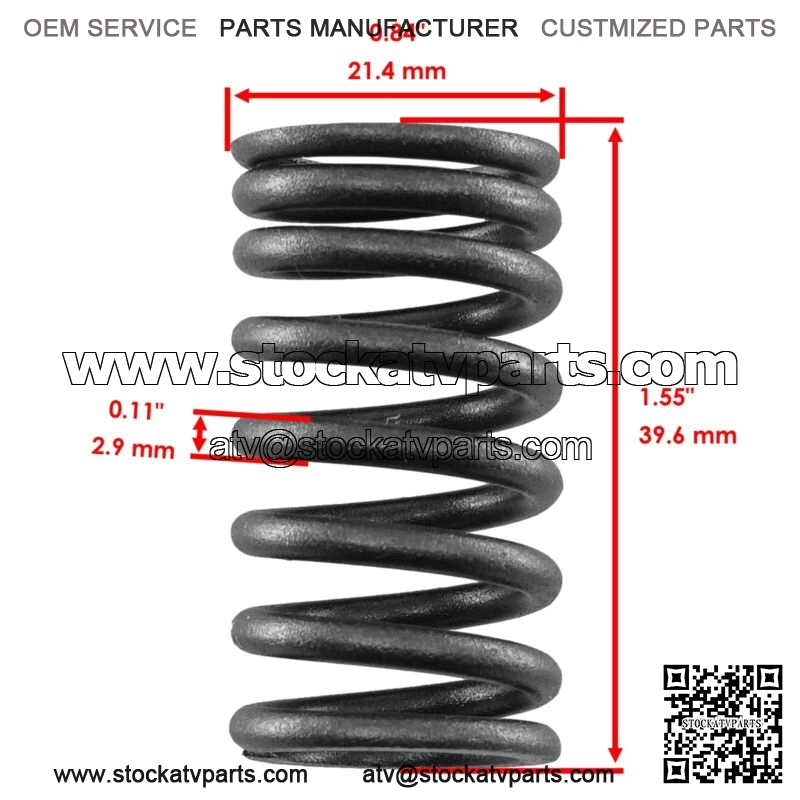

1 x Inner Valve Spring: 1UY-12113-01-00 22U-12113-00-00
Width: 0.84″ | 21.4 mm
Height: 1.55″ | 39.6 mm
Thickness: 0.11″ | 2.9 mm

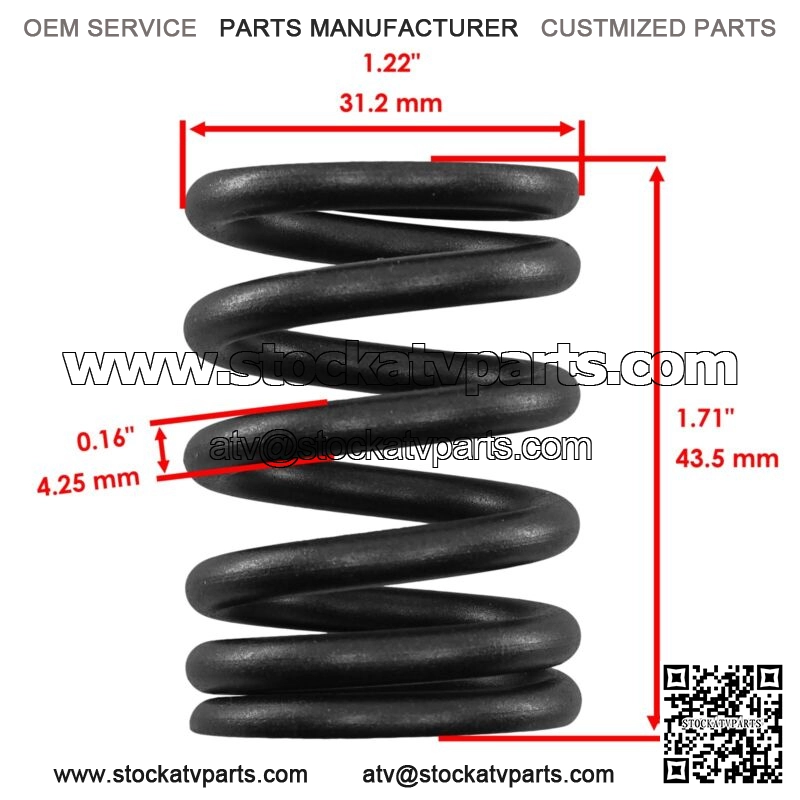

1 x Outer Valve Spring: 1UY-12114-01-00
Width: 1.22″ | 31.2 mm
Height: 1.71″ | 43.5 mm
Thickness: 0.16″ | 4.25 mm
1 x Outer Valve Spring: 1J7-12119-01-00 M01-12129-00-00
Length: 0.47″ | 12.0 mm
Width: 0.35″ | 9.0 mm
Inner Diameter: 0.18″ | 4.7 mm
Outer Diameter: 0.37″ | 9.4 mm
2 x Valve Stem Seal: 1J7-12118-00-00
Width: 0.16 ” | 4.2 mm
Length: 0.37 ” | 9.5 mm
Height: 0.27 ” | 7.0 mm
**
