Product

Premium Quality Replacement Part
Intake Valve Kit for Yamaha TT225 TT225S 1986-1987 / 5H0-12111-02-00
For Yamaha Models:
TT225 TT225S 1986-1987
Order Includes:
1 x Intake Valve: 5H0-12111-02-00 5H0-12111-00-00 5H0-12111-01-00
Intake Valve Length: 1.33″ | 34.0 mm
Intake Valve Diameter: 3.70″ | 94.0 mm

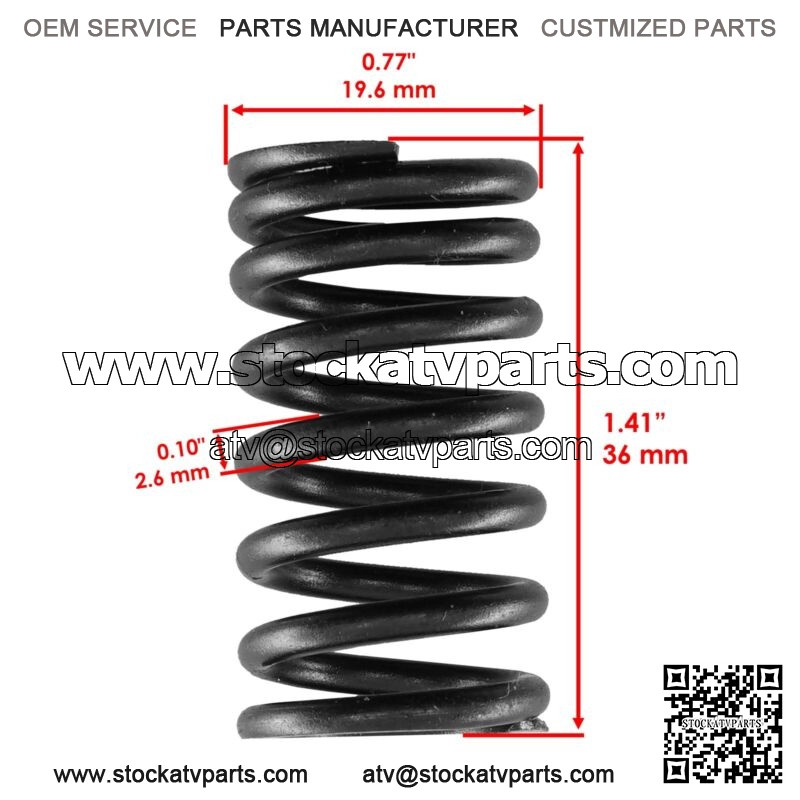

1 x Inner Valve Spring: 11H-12113-00-00
Width: 0.77″ | 19.6 mm
Height: 1.41″ | 36.0 mm
Thickness: 0.10″ | 2.6 mm

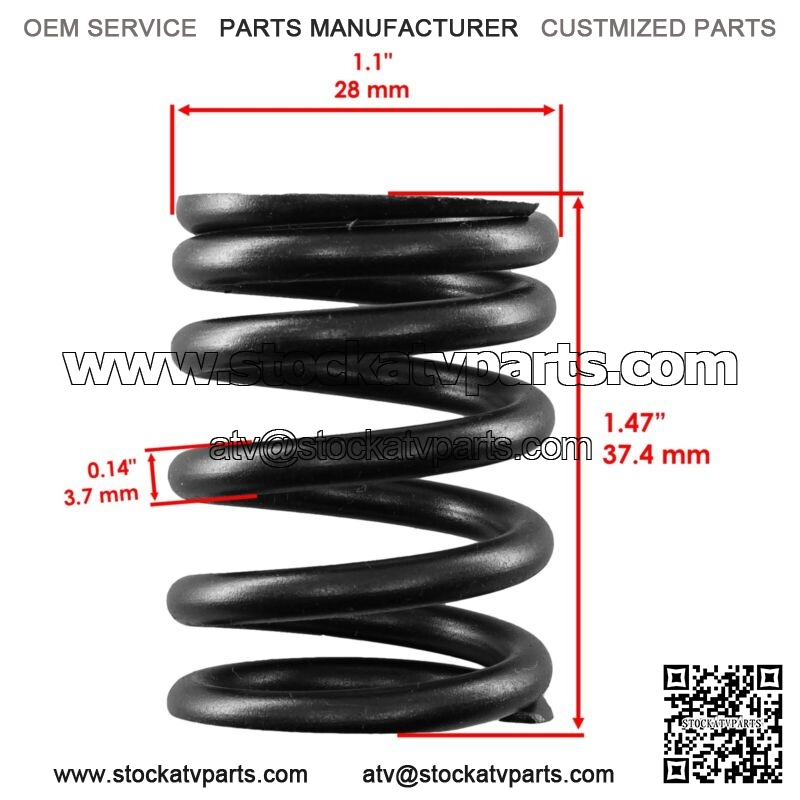

1 x Outer Valve Spring: 11H-12114-00-00
Width: 1.1″ | 28.0 mm
Height: 1.47″ | 37.4 mm
Thickness: 0.14″ | 3.7 mm
1 x Valve Stem Seal: 5H0-12119-00-00
Length: 0.47″ | 12.0 mm
Width: 0.35″ | 9.0 mm
Inner Diameter: 0.18″ | 4.7 mm
Outer Diameter: 0.37″ | 9.4 mm
2 x Valve Cotter: 4G0-12118-00-00
Width: 0.14 ” | 3.8 mm
Length: 0.33 ” | 8.5 mm
Height: 0.23 ” | 6.0 mm
**
