Product

Premium Quality Replacement Part
Front Right Knuckle Bearing And Seal KitFor Honda Models:Foreman TRX500FE 4×4 ES 2005-2011Order Includes:

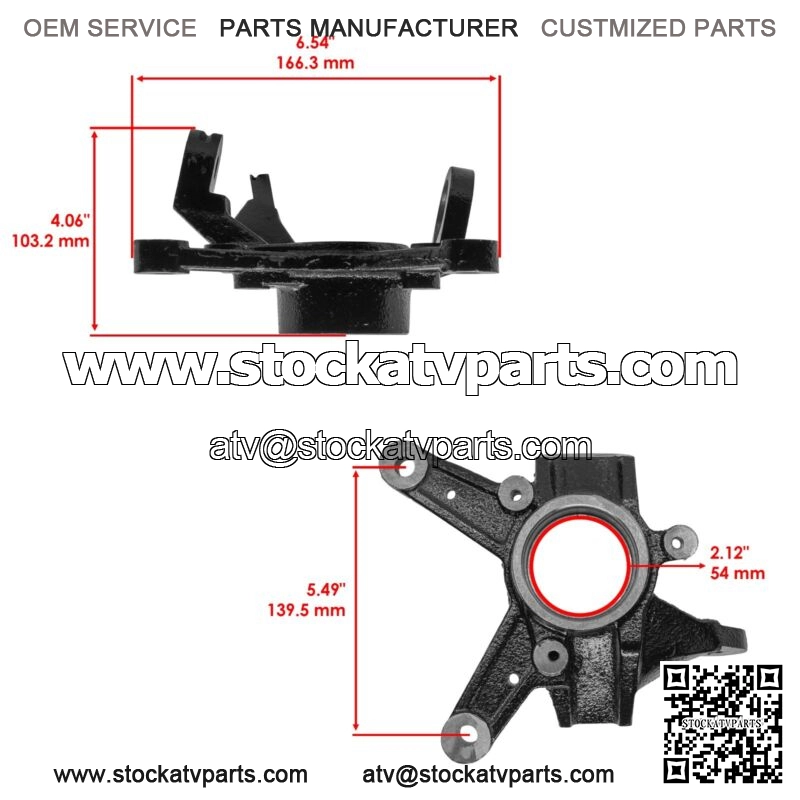

1x Front Right Knuckle Assembly : 51200-HP0-B00 , 51200-HP0-A00
Height : 103.2 mm | 4.06 ”
Length : 166.3 mm | 6.54 ”
Inner Diameter : 54 mm | 2.12 ”
Knuckle Hole Distance : 139.5 mm | 5.49 ”

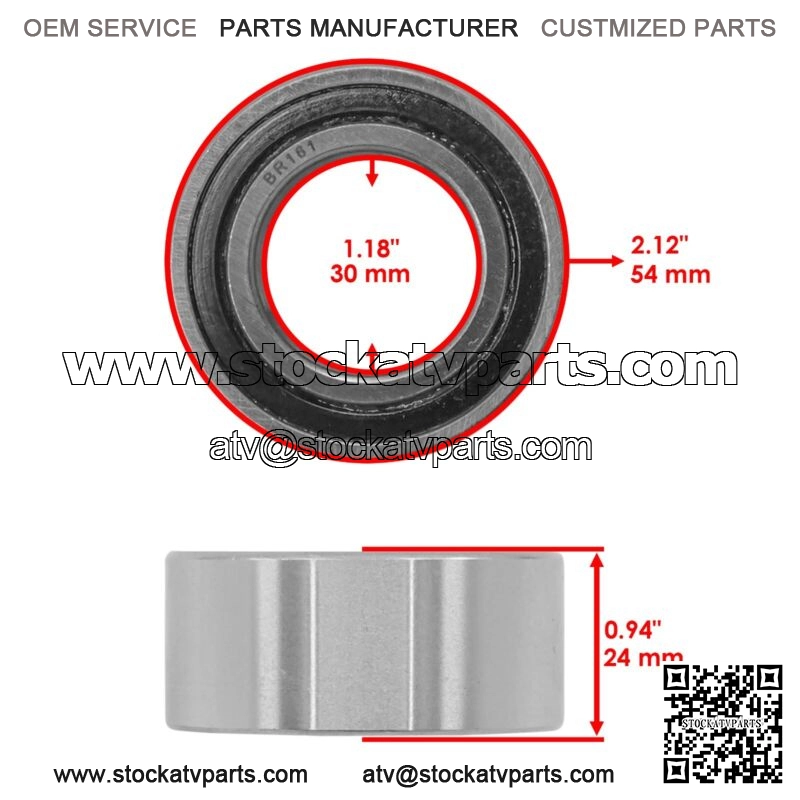

1x Bearing : 91051-HA7-651
Inner Diameter : 30 mm | 1.18 ”
Outer Diameter : 54 mm | 2.12 ”
Width : 24 mm | 0.94 ”
1x Dust Seal : 91256-HM7-003 , 91256-HP0-A00 , 91256-HP0-A01
Inner Diamater : 36.10 mm | 1.42 ”
Outer Diameter : 55.18 mm | 2.17 ”
Width : 6.0 mm | 0.23 ”

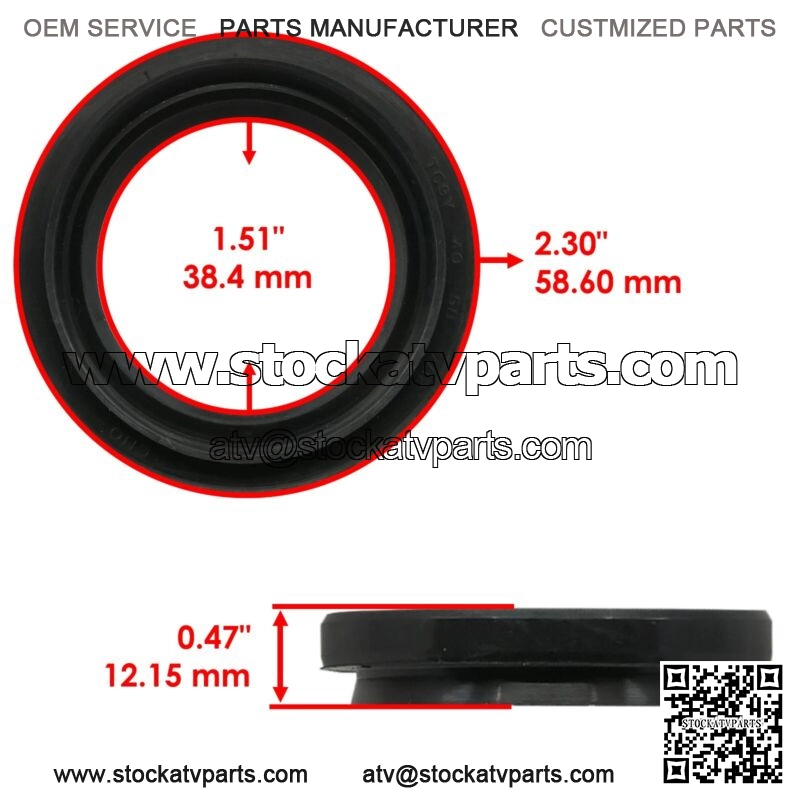

1x Dust Seal : 91209-HA7-771, 91209-HA7-772, 91209-HA7-773, 91209-HN2-003, 91209-HN5-671
Inner Diameter : 38.4 mm | 1.51 ”
Outer Diameter : 58.60 mm | 2.30 ”
Width : 12.15 mm | 0.47 ”
1x Ball Joint : 51375-HP5-601, 51355-HN0-A01Height : 70 mm | 2.75 ”
Length : 34 mm | 1.33 ”
Thread Size : 11.5 mm | 0.45 ”
**
