Primary Drive Clutch Rebuild Kit for Polaris Sportsman 800 EFI 2007 / 1322698

SKU LHQPJ.07324 5020422, 5438247 5430702 5430945, 5439254 5431936, 7512266, 7541906 3235320, 3576504 3514314, 5210752, 3576510, 1322698 1322522, 1321622 Category Tag
Spread the love
Share on facebook
Share on twitter
Share on linkedin
Share on whatsapp
Share on telegram
Share on tumblr
Share on pinterest

Premium Quality Replacement Part
Primary Drive Clutch Rebuild Kit
For Polaris Models:
Sportsman 800 EFI 2007
Order Includes:
3 x Clutch Weight : 5632286
Length : 60 mm – 2.36″
Width : 11.90 mm – 0.46″
Weight Code: 20-62F
1 x Clutch Spring : 7043199
Length : 70 mm – 2.75″
Width : 51.1 mm – 1.09″
Item Thickness : 4.6 mm – 0.18″
3 x Roller Bushing : 1321622
Outer Diameter : 14.3 mm – 0.56″
Inner Diameter : 9.5 mm – 0.37″
Height : 14 mm – 0.54″
3 x Roller Pin : 5020422
Length : 25 mm – 0.98″
Outer Diameter : 9.5 mm – 0.37″
6 x Roller Washer : 5430945 5430702 5438247
Outer Diameter : 14.6 mm – 0.57″
Inner Diameter : 9.6 mm – 0.37″
Thickness : 1.5 mm – 0.059″

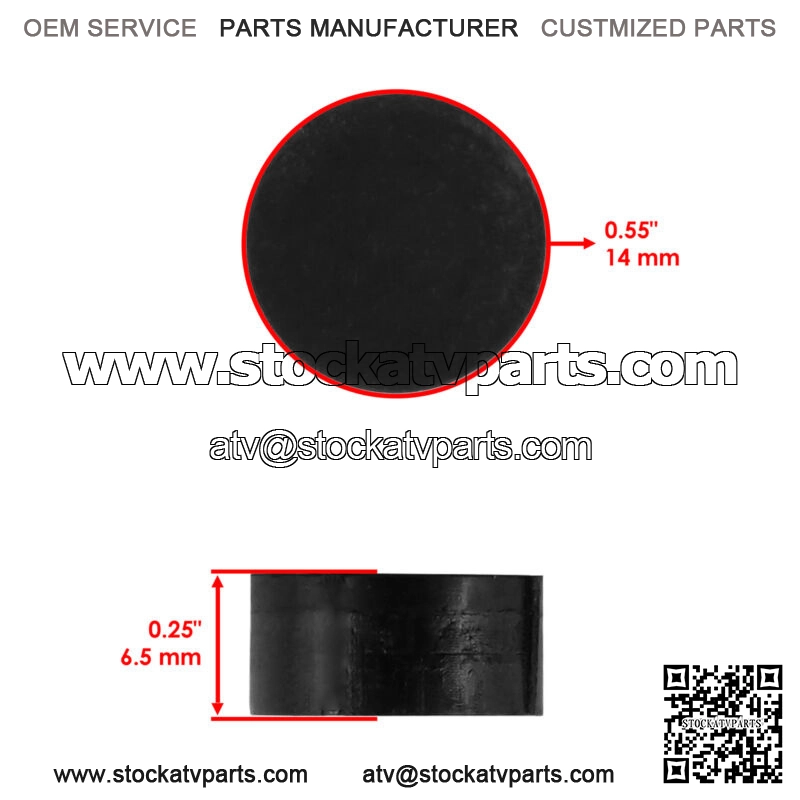

6 x Button : 5431936 5439254
Outer Diameter : 14 mm – 0.55″
Width : 6.5 mm – 0.25″
3 x Shoulder Bolt : 7512266
Length : 63.8 mm – 2.51″M5x1.0
3 x Nut : 7541906 3235320
Inner Diameter : 4 mm – 0.15″
Height : 6.1 mm – 0.24″M5x1.0
1 x Bushing : 3576504 3514314
Outer Diameter : 19.4 mm – 0.76″
Inner Diameter : 11.09 mm – 0.43″
Width : 12.75 mm – 0.5″
1 x Bushing : 5430261
Outer Diameter : 33 mm – 1.29″
Inner Diameter : 29 mm – 1.14″
Width : 13 mm – 0.51″
1 x Spacer : 5210752
Outer Diameter : 44.35 mm – 0.17″
Inner Diameter : 34 mm – 1.33″
Thickness : 0.6 mm – 0.023″
1 x Spacer : 5242981
Outer Diameter : 44.35 mm – 0.17″
Inner Diameter : 34 mm – 1.33″
Thickness : 0.7 mm – 0.027″
1 x Bearing Cover :3576510
Outer Diameter : 33 mm – 1.29″
Inner Diameter : 29 mm – 1.14″
Height : 13 mm – 0.51″
1 x Bolt : 7518197 7519287
Height : 170 mm – 6.69″
Thrend Spec : 7/16-20
