Product

Premium Quality Replacement Part
Primary Drive Clutch Rebuild Kit
For Polaris Models:
Sportsman 450 HO EPS 2019-2022
Sportsman 450 HO EPS Utility 2020-2024
Sportsman 450 HO EPS 50S 2023-2024
Sportsman 570 EFI 2019-2024
Sportsman 570 EPS ZUG 2019-2024
Sportsman 570 EPS Utility 2021-2022
Sportsman Touring 570 EPS SP Tractor 2019-2023
Sportsman 570 X2 EU/ZUG 2019-2023
Sportsman 570 Premium 2020-2022
Sportsman 570 Euro 6X6 2019-2023

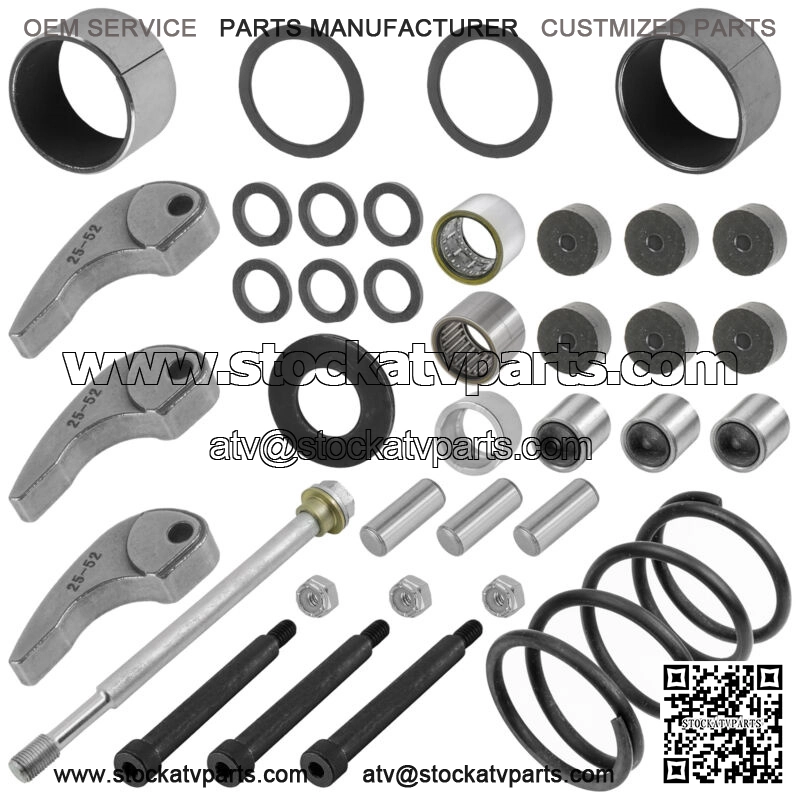

Order Includes:

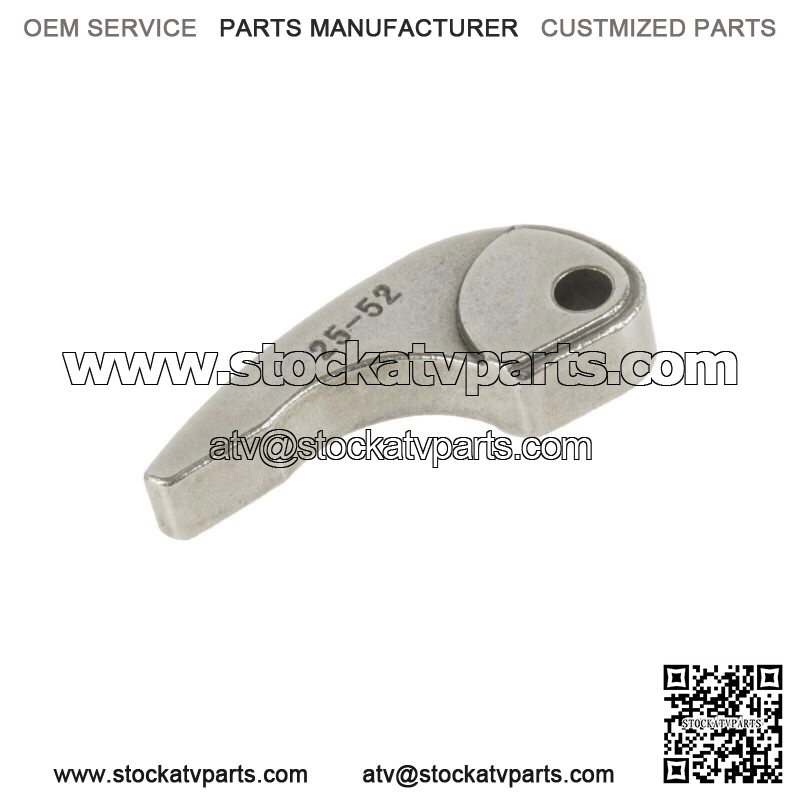

3 x Clutch Weight : 5632409
Weight Code: 25-52G

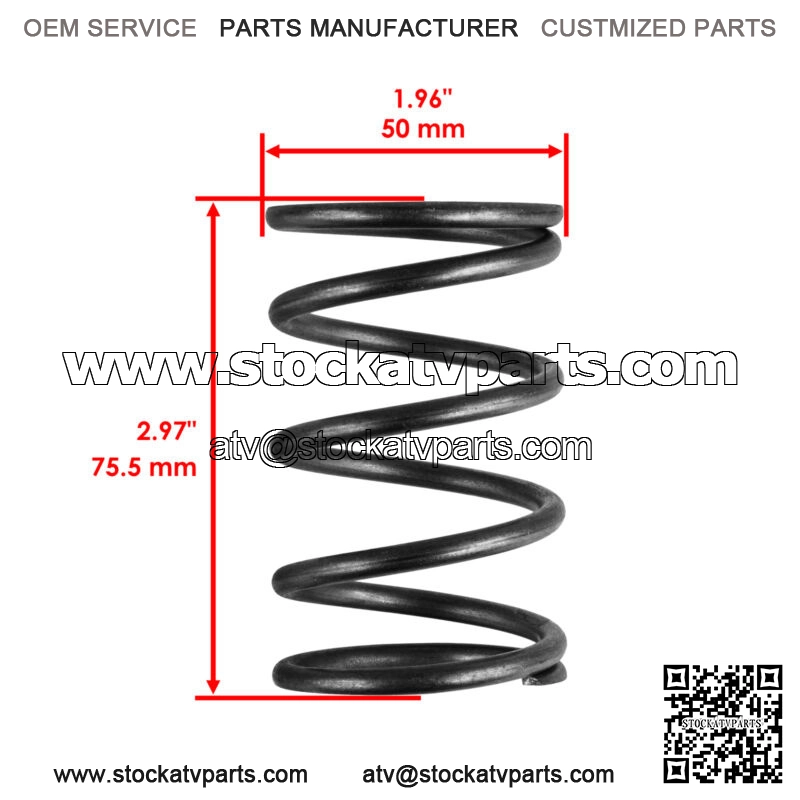

1 x Clutch Spring : 7043594
Length : 75.5 mm – 2.97″
Width : 50 mm – 1.96″35-240
3 x Roller : 1321457 5020433
Outer Diameter : 14.3 mm – 0.56″
Inner Diameter : 9.5 mm – 0.37″
Width : 9 mm – 0.35″

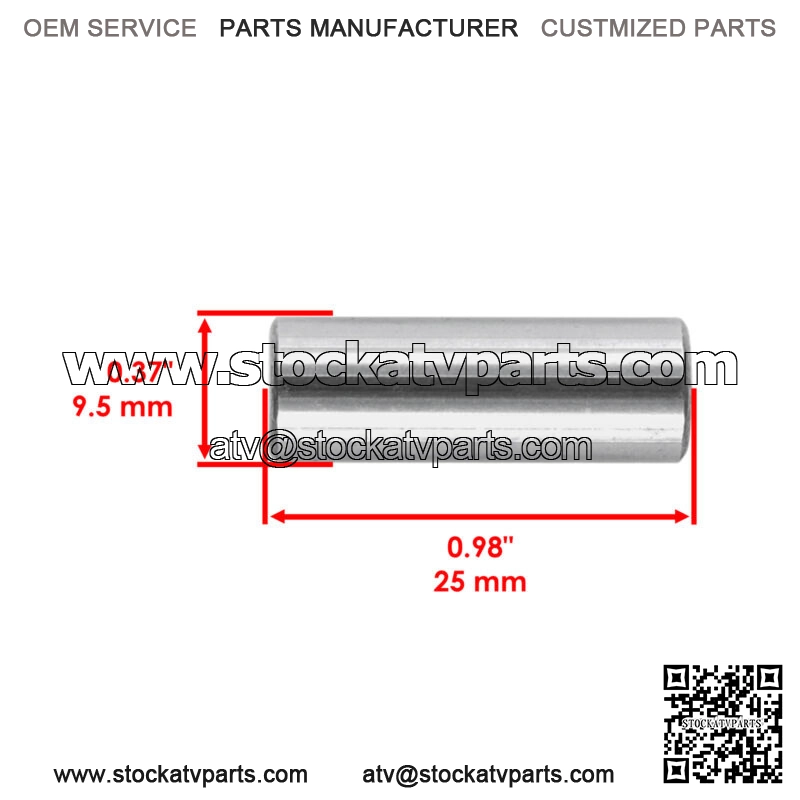

3 x Roller Pin : 5020422
Length : 25 mm – 0.98″
Outer Diameter : 9.5 mm – 0.37″
6 x Roller Washer : 5438247
Outer Diameter : 14.6 mm – 0.57″
Inner Diameter : 9.6 mm – 0.37″
Thickness : 1.5 mm – 0.059″
6 x Button : 5431936 5439254
Outer Diameter : 14 mm – 0.55″Width : 6.5 mm – 0.25″
3 x Shoulder Bolt : 7518197 7519287 7575202 5210748 7512266
Length : 63.8 mm – 2.51″M5x1.0
3 x Nut : 7541906 3235320
Inner Diameter : 4 mm – 0.15″
Height : 6.1 mm – 0.24″M5x1.0
2 x Washer : 7556335
Outer Diameter : 43 mm – 1.69″
Inner Diameter : 34 mm – 1.33″
Thickness : 1.1 mm – 0.043″

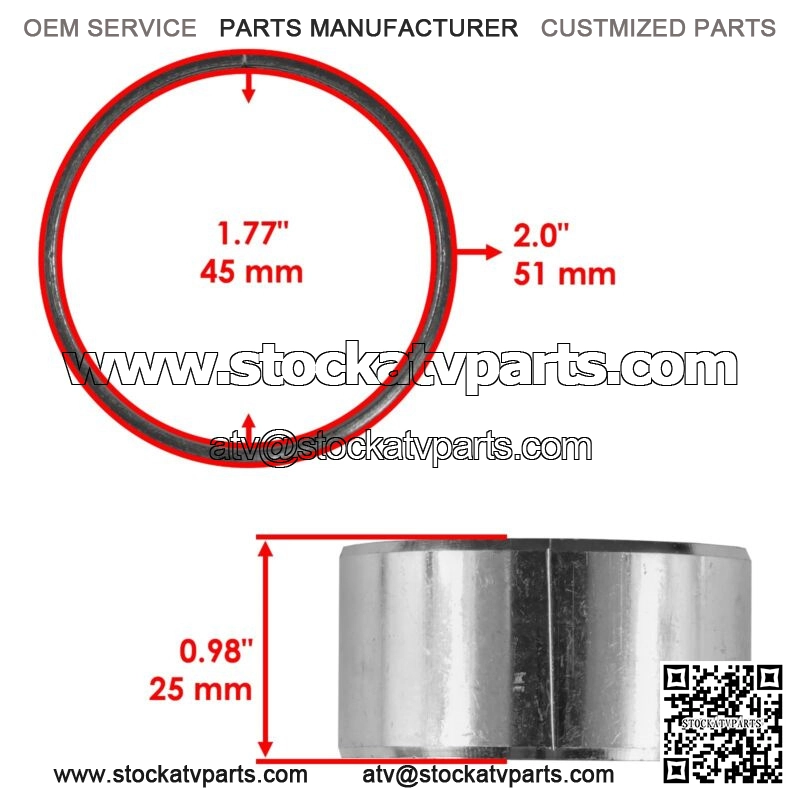

1 x DU Bushing : 3514492
Outer Diameter : 51 mm – 2.0″
Inner Diameter : 45 mm – 1.77″
Width : 25 mm – 0.98″
1 x Bearing Cover : 3514684
Outer Diameter : 33 mm – 1.29″
Inner Diameter : 29 mm – 1.14″
Width : 20 mm – 0.78″
1 x Clutch Spacer : 5634082
Outer Diameter : 44.4 mm – 1.74″
Inner Diameter : 32.6 mm – 1.28″
Width : 26.4 mm – 1.03″
1 x Needle Bearing (Non EBC) : 3514609
Outer Diameter : 44.5 mm – 1.75″
Inner Diameter : 35 mm – 1.33″
Width : 31.6 mm – 1.24″
1 x One Way Bearing | 1521172
Outer Diameter : 44.30 mm – 1.74″
Width : 31.70 mm – 1.24″
