Product

Specification:

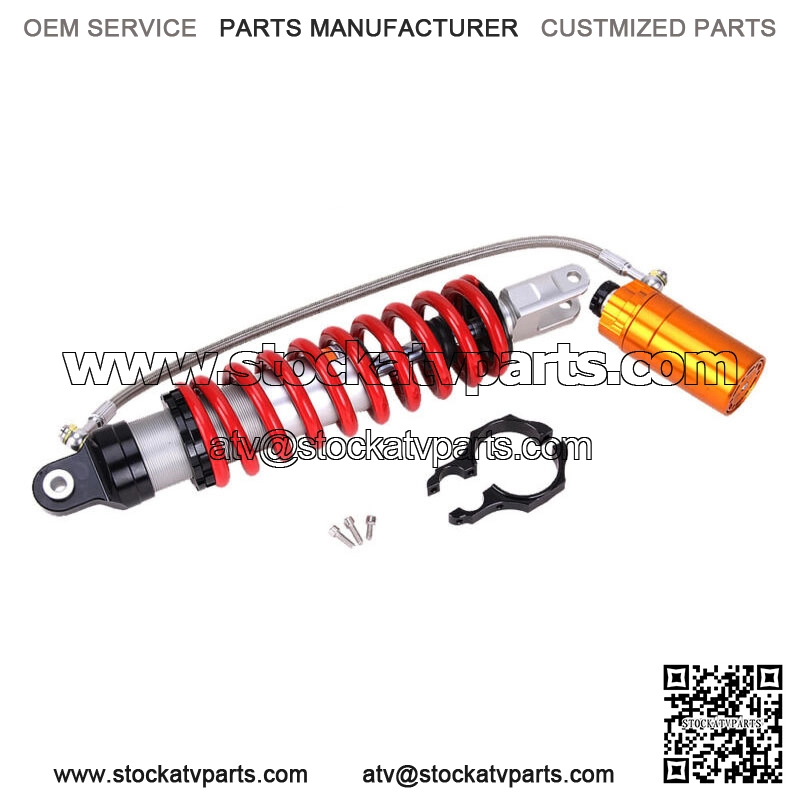

Item Type: Air Rear Shocks Suspension Absorbers
Material: Solid steel and aluminium alloy
Color: Red, Gold, Silver
Eyelet to Eyelet Length: 395mm
Eye Diameter: 10mm
Spring thickness: 11mm
Max Load:100kg-300kg
Size: Please check the attached picture of other size detail and the length is the eyelet to eyelet length.
Features:
Beefed up upper and lower eyelets and caps made of aircraft grade aluminum
Heavy duty thicker gauge main springs increases the max loading to 1000lbs/pair
High quality reservoir oil seals
Pre-filled with high pressure nitrogen
Mechanical and Nitro adjustable
Constant rate springs
Air and oil dampening
Fitment:
For Honda Sportrax TRX400EX (All Years)
For Honda TRX450R (All Years)
For Honda TRX450ER (All Years)
For Yamaha YFZ450
For Suzuki Z400 QuadSport LTZ400 ATV
Note:
Please check the size measurement chart carefully before purchasing
Please allow 1-2mm for variance due to manual measurement
Installation instruction is not included
If you have questions, please feel free to contact us, thank you!
Package Included:
1 * Rear Air Shocks Suspension Absorbers (As the picture)
