Rear Brake Disc w/Bolt & Flange for Honda Fourtrax 400EX TRX400EX 1999-2008Fits Following Honda Models:

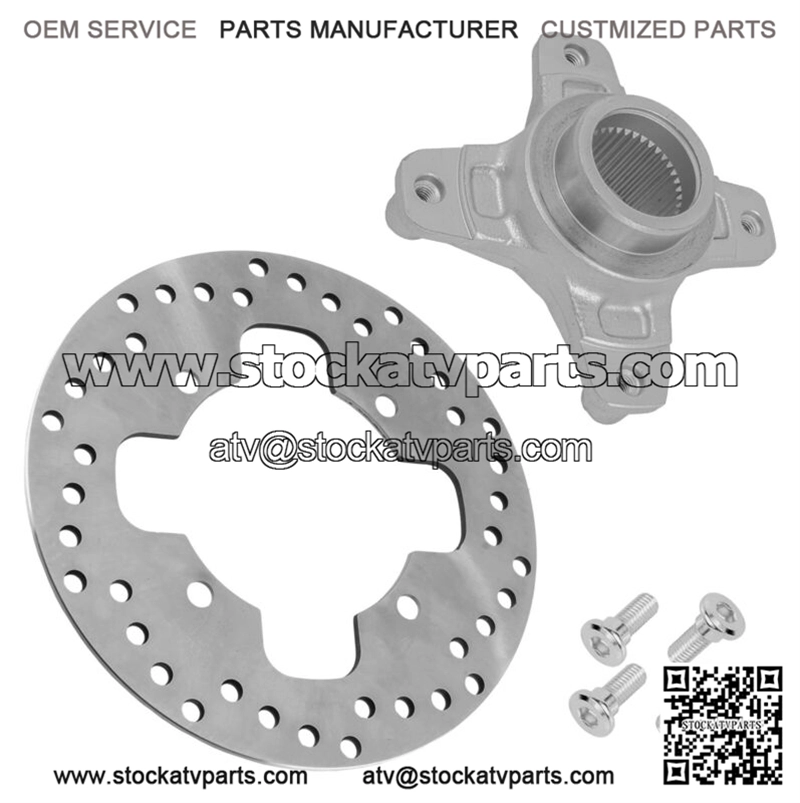

Fourtrax 400EX TRX400EX 1999-2008Order Includes:
1 x Brake Disc | 43251-HN1-003
4 x Bolt | 90105-MK5-000 90105-MK5-010
1 x Disc Flange | 43120-HN1-A20 43120-HN1-000Dimensions & Measurements :

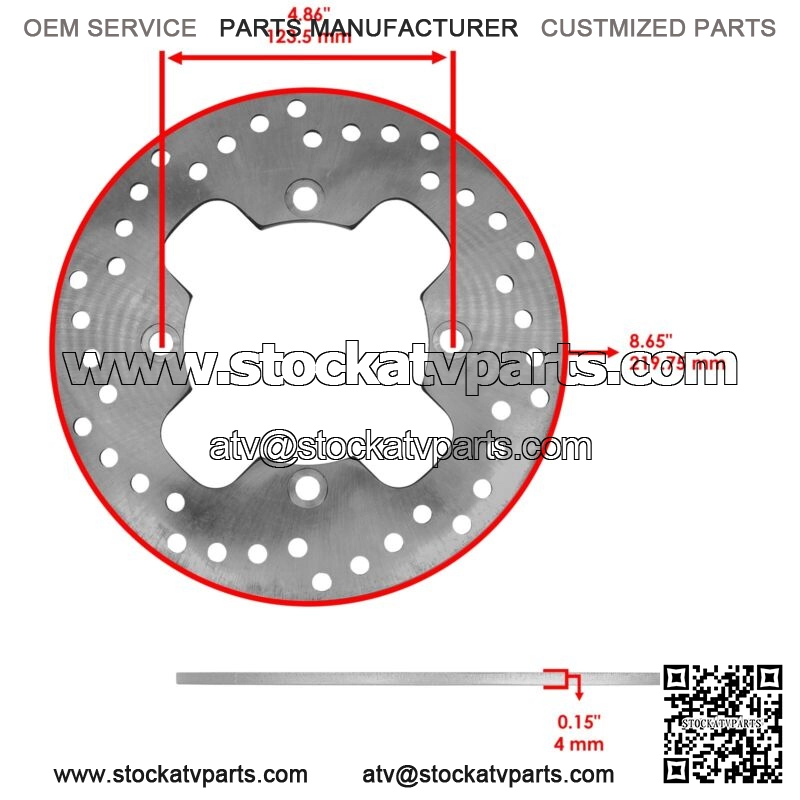

Brake Disc
Outer Diameter : 219.75mm | 8.65″
Mounting Hole Distance : 123.5mm | 4.86″
Width : 4mm | 0.15″

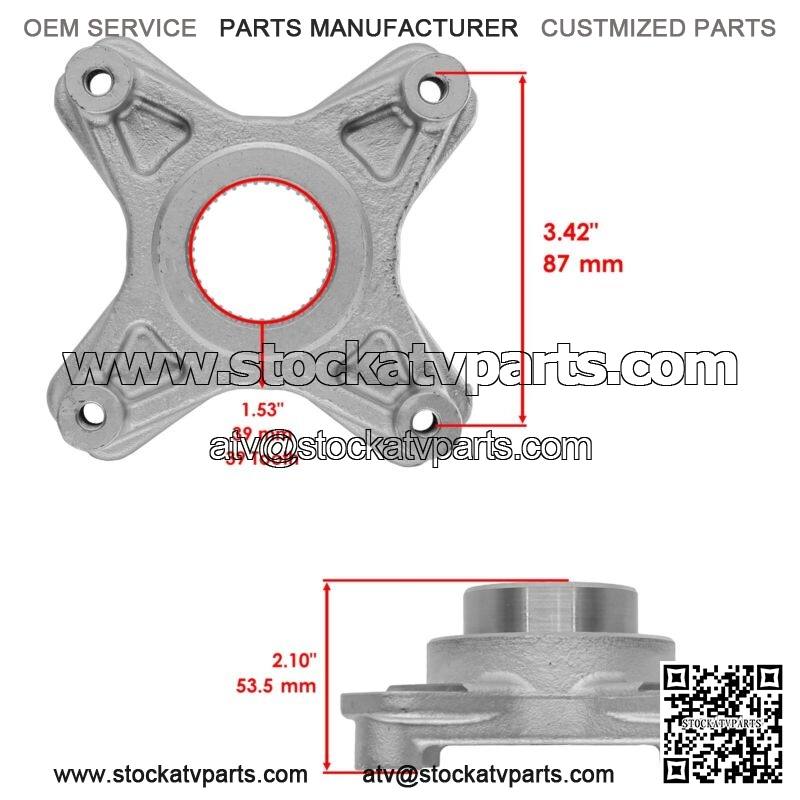

Disc Flange
Inner Diameter : 39mm | 1.53″ | 39 Tooth
Mounting Hole Distance : 87mm | 3.42″
Width : 53.5mm | 2.10″

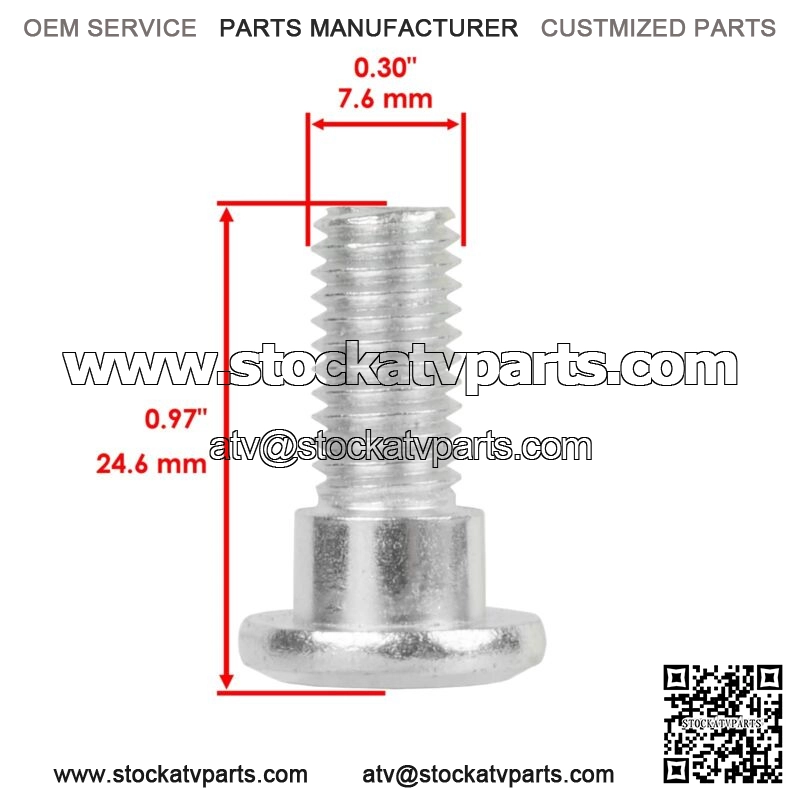

Bolt
Height : 24.6mm | 0.97″
Length : 7.6mm | 0.30″
**
