Product: Rear Differential Bearing & Seal Kit for Can-Am Commander 1000 (2014-2015) – All Models

Premium Quality Replacement Part
Rear Differential Bearing & Seal & O Ring
Compatible with Can Am Models :
Commander 1000 STD DPS XT XT P LTD 2014-2015
Commander 1000R EFI 2018-2020
Commander 800 STD DPS XT 2014-2015
Commander 800R EFI 2018-2020
Commander MAX 1000 DPS XT 2014-2015
Commander MAX 1000 LTD 2015
Commander MAX 1000R EFI 2018-2020
Commander MAX 800R EFI 2018-2020
Defender HD10 6X6 2020-2022
Defender HD10 LTD 6X6 CAB 2022
Defender HD10 XT 6X6 2022
Outlander MAX 1000 6X6 EFI XT 2022
Outlander MAX 650 6X6 EFI 2022-2023
Traxter HD10 6X6 2022
Differential Part Numbers : 705502517, 705501804, 705502096, 705502331

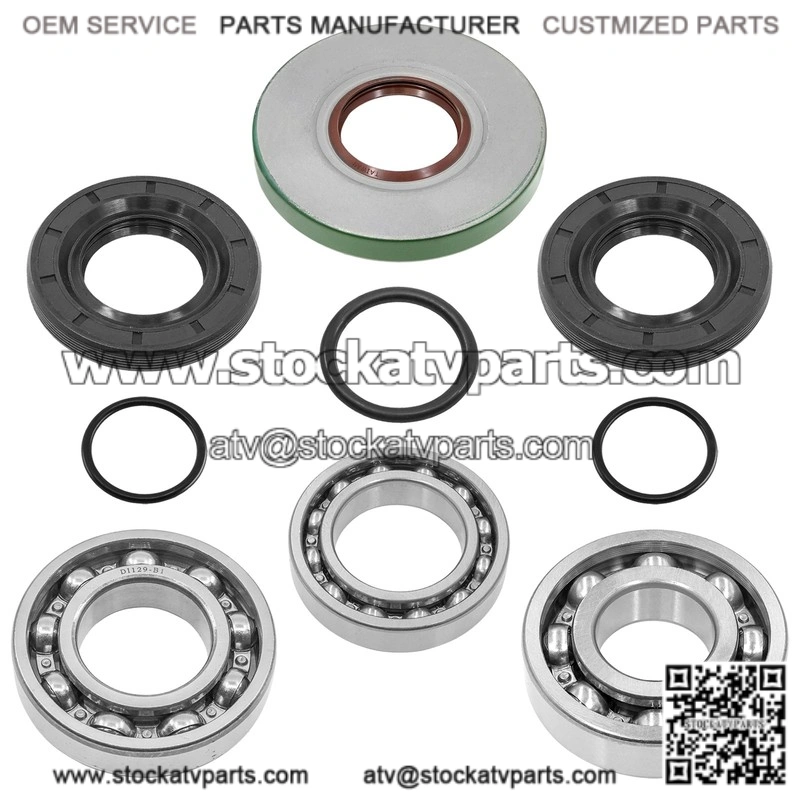

Order Includes :
1x O Ring: 705501883
Inner Diameter : 15.5 mm – 0.61 in
Outer Diameter : 20 mm – 0.78 in
Width : 2 mm – 0.07 in
2x O Ring: 705501880
Inner Diameter : 7.5 mm – 0.29 in
Outer Diameter : 11 mm – 0.43 in
Width : 1.4 mm – 0.05 in
1x Seal: 705501878

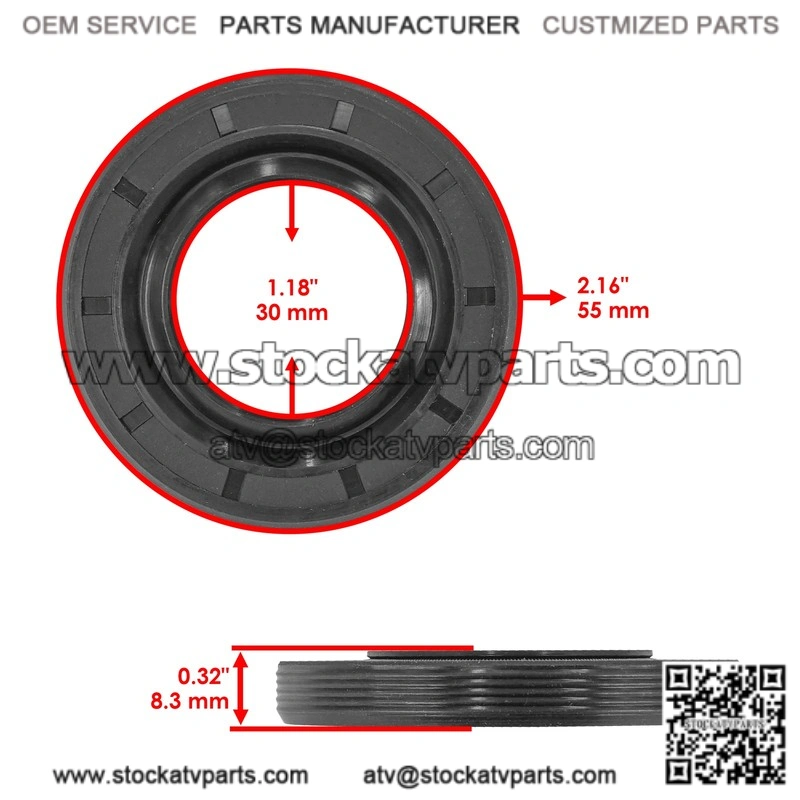

2x Seal: 705502110, 705501879
Inner Diameter : 30 mm – 1.18 in
Outer Diameter : 55 mm – 2.16 in
Width : 8.3 mm – 0.32 in
1x Bearing: 705501875
Inner Diameter : 39.5 mm – 1.55 in
Outer Diameter : 79.8 mm – 3.13 in
Width : 18 mm – 0.70 in

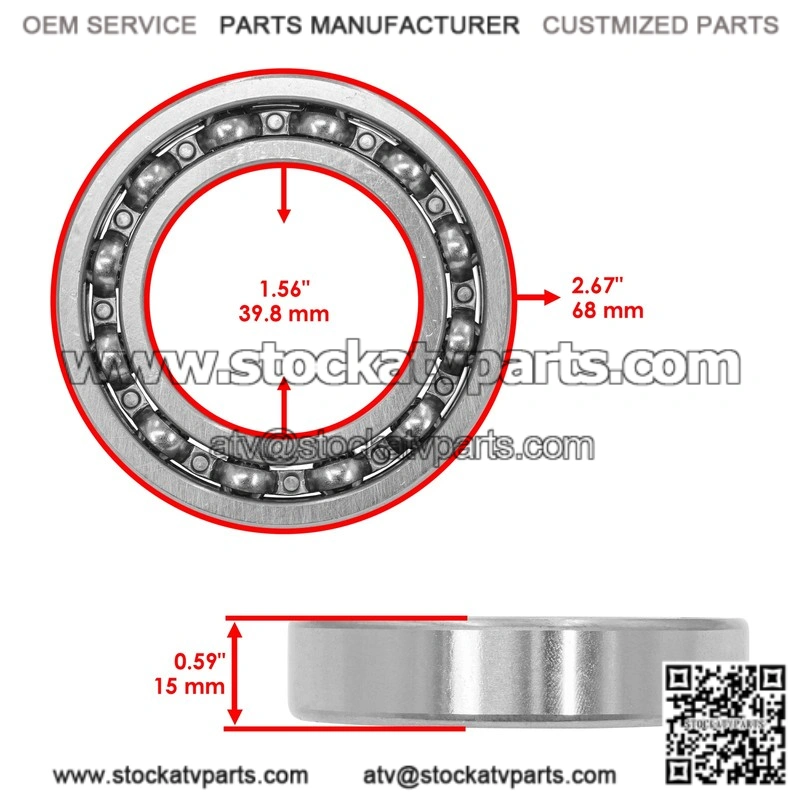

1x Bearing: 705501876
Inner Diameter : 39.8 mm – 1.56 in
Outer Diameter : 68 mm – 2.67 in
Width : 15 mm – 0.59 in

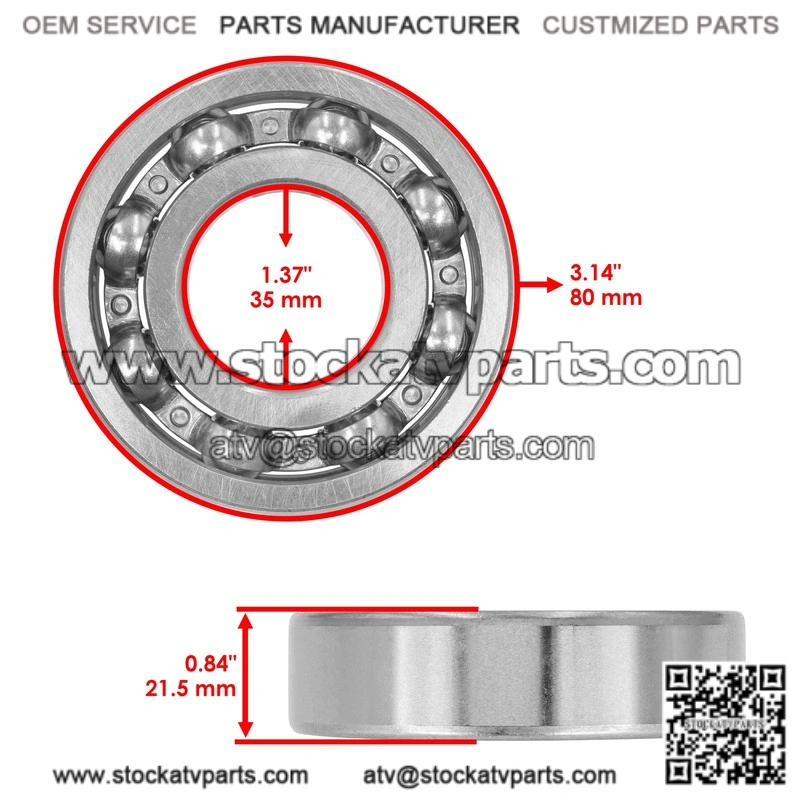

1x Bearing:705501877
Inner Diameter : 35 mm – 1.37 in
Outer Diameter : 80 mm – 3.14 in
Width : 21.5 mm – 0.84 in
