Product: Rear Differential Seal & O Ring Kit For Honda Rancher 420 TRX420FM 4×4 2007-2013

Premium Quality Replacement Part
Rear Differential Seal & O Ring Kit For Honda Rancher 420 TRX420FM 4×4 2007-2013For Honda Models:Rancher 420 TRX420FM 4×4 2007-2013

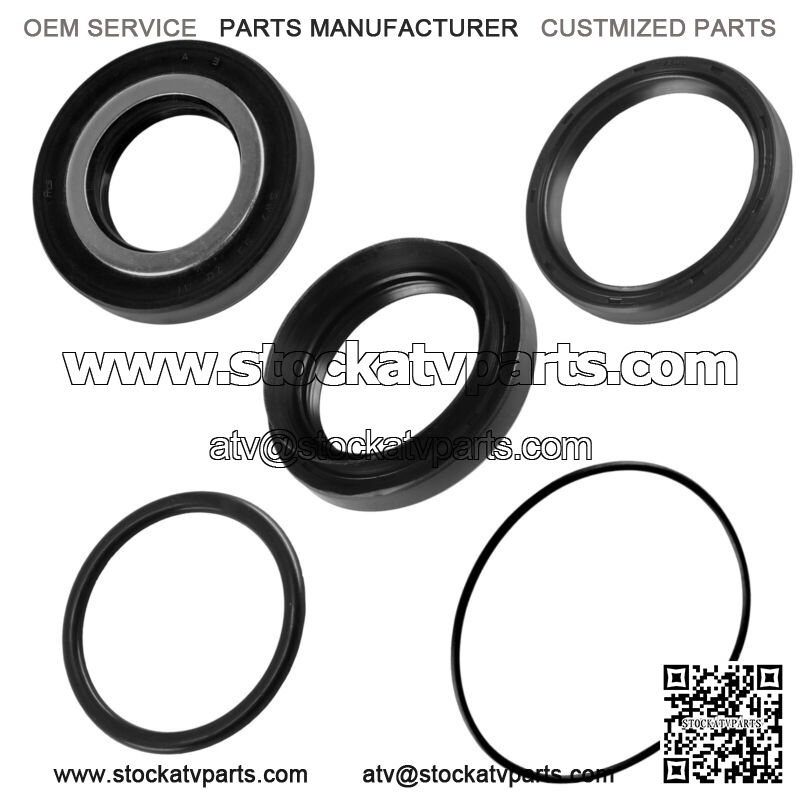

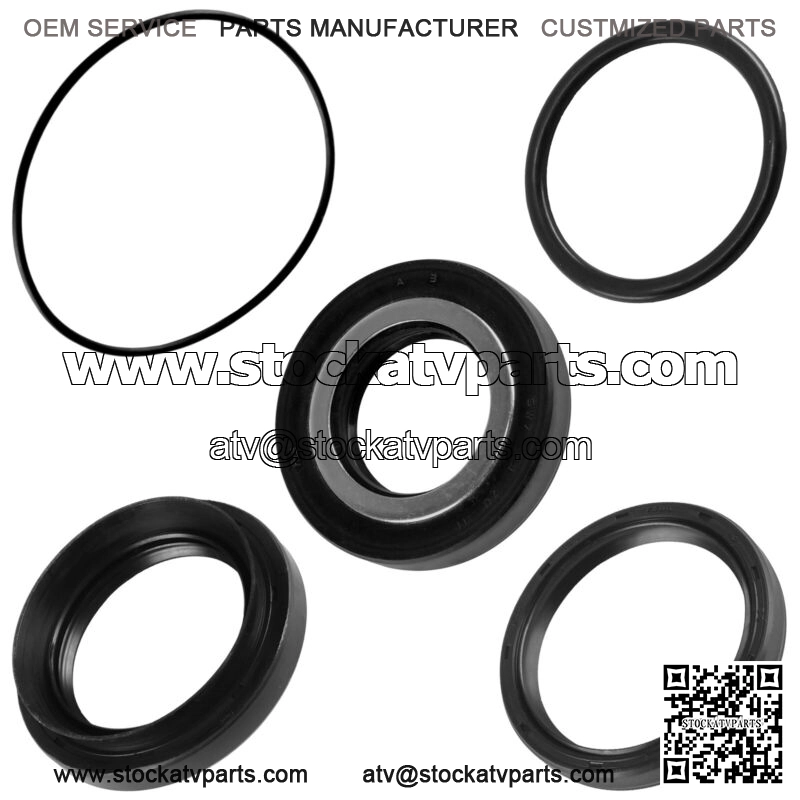

Order Includes:
1 x O-RING (30.8MM) | 91302-001-020
1 x O-RING (75X3) | 91320-HM7-702 91320-HM7-004
1 x OIL SEAL (39X70X11) | 91251-HP5-601
1 x OIL SEAL (44X63X8) | 91255-HP5-601
1 x OIL SEAL (42X51X7) | 91271-HC4-004 91271-ME5-004
Dimensions & Measurements:

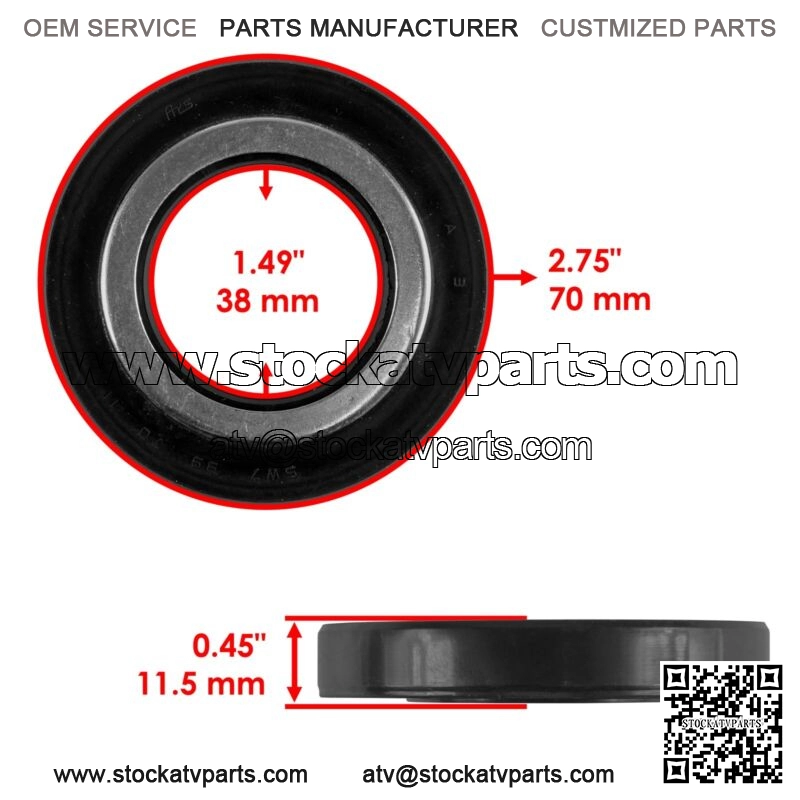

OIL SEAL (39X70X11)
Inner Diameter: 38mm | 1.49″
Outer Diameter : 70mm | 2.75″
Thickness: 11.5mm | 0.45″

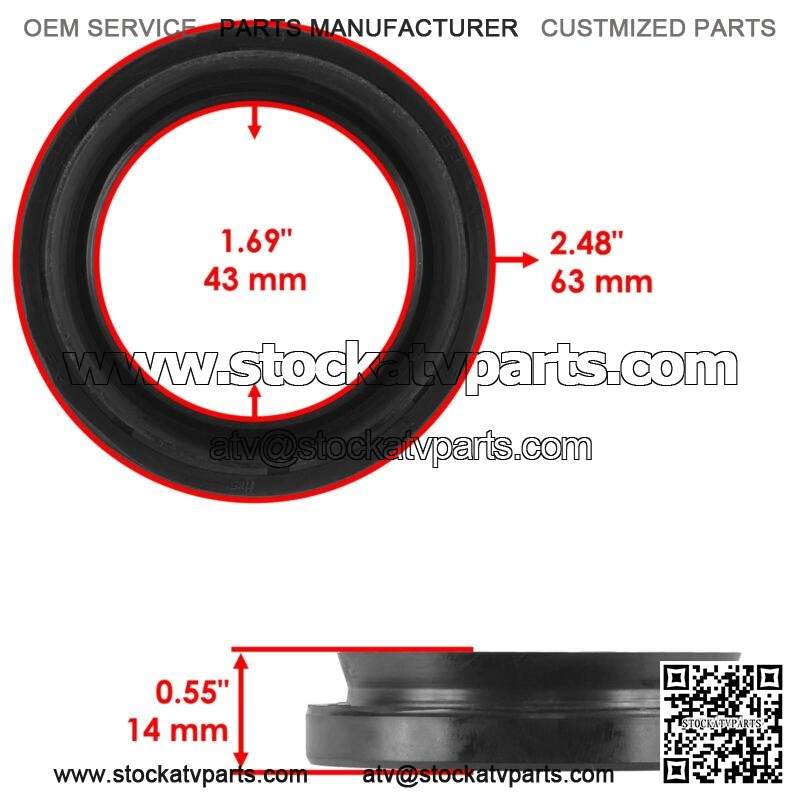

OIL SEAL (39X70X11)
Inner Diameter: 43mm | 1.69″
Outer Diameter : 63mm | 2.48″
Thickness: 14mm | 0.55″

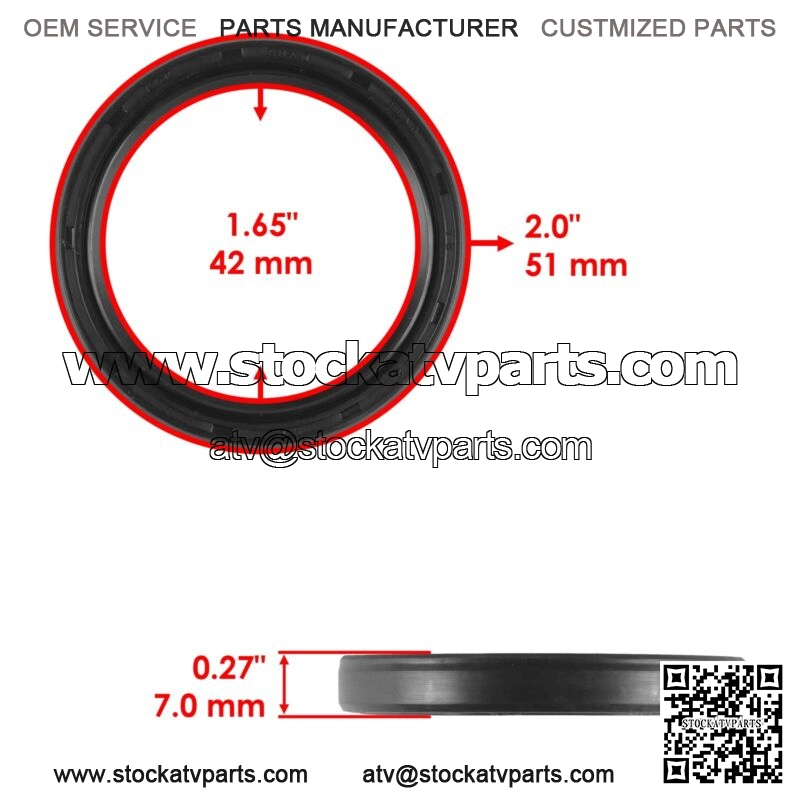

OIL SEAL (42X51X7)
Inner Diameter: 42mm | 1.65″
Outer Diameter : 51mm | 2″
Thickness: 7mm | 0.27″
Fit Differential Part Number : 41300-HN2-000 41300-HP0-B80 41300-HP0-A00
**
