Product: Rear Left or Right Carrier Bushing Shaft Cap for Polaris Ranger Crew 1000 2019

Premium Quality Replacement Part
Rear Wheel Bearing Left Right Carrier Bushing w/ Pivot Shaft & Cap
For Polaris Models:Ranger Crew 1000 2019

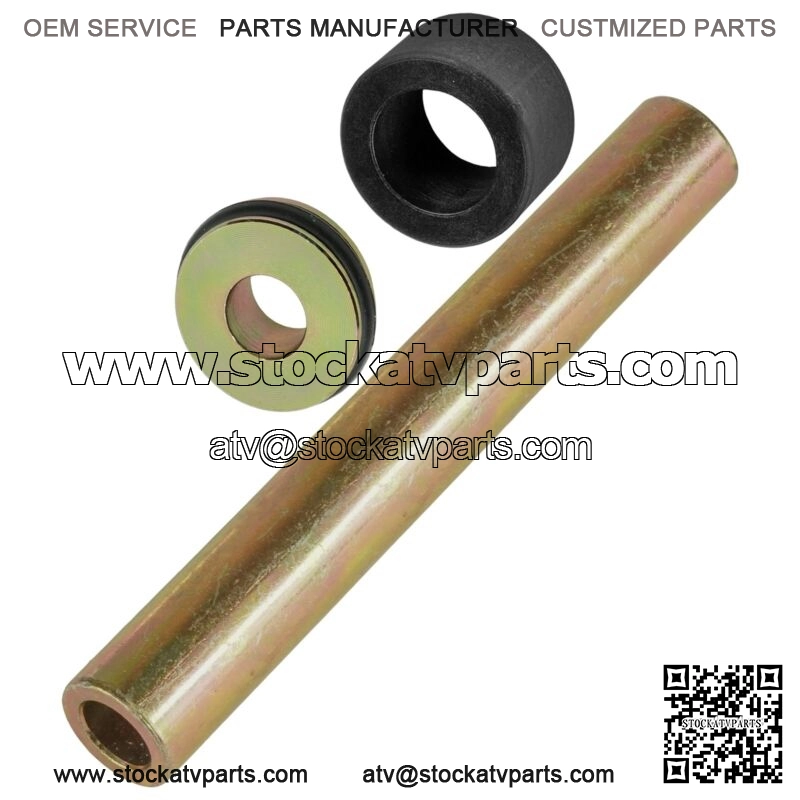

Order Includes:

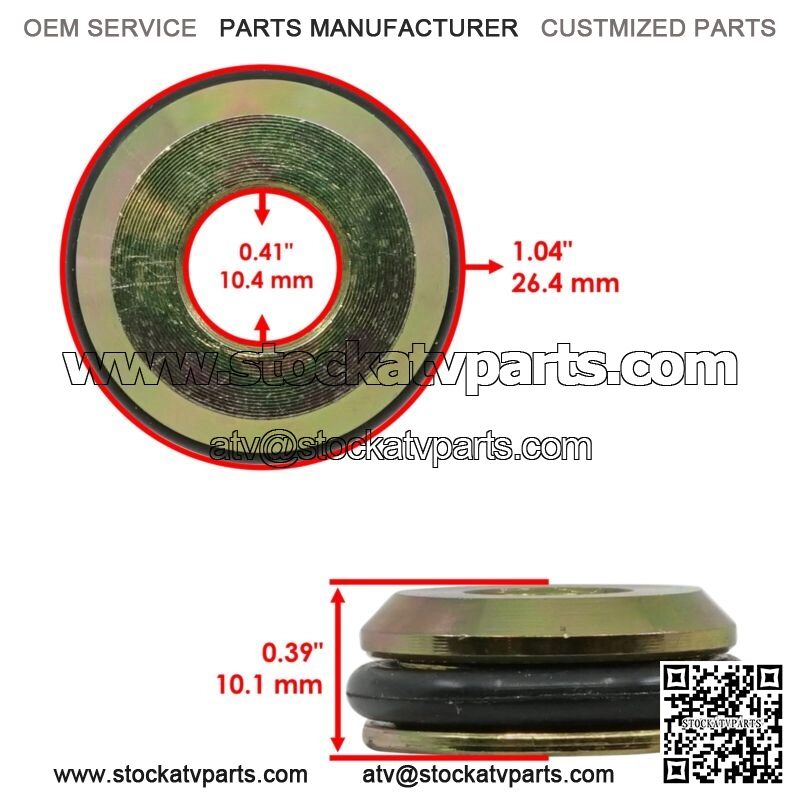

1 x Sealed Pivot Cap | 1543612
Width : 10.1mm | 0.39″
Inner Diameter : 10.4mm | 0.41″
Outer Diameter : 26.4mm | 1.04″

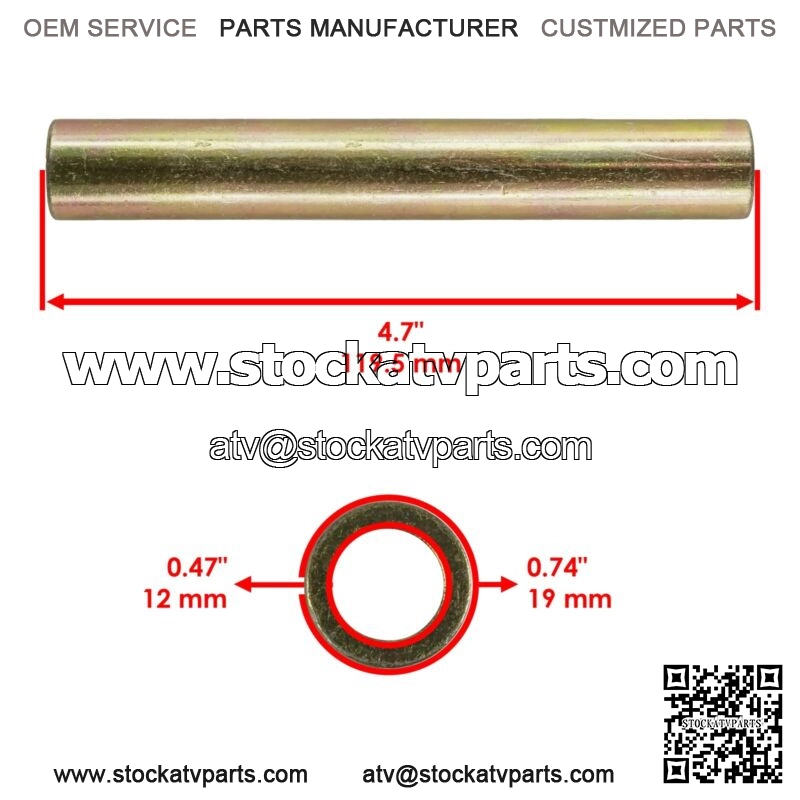

1 x Pivot Shaft | 5139991
Length : 119.5mm | 4.7″
Inner Diameter : 12mm | 0.47″
Outer Diameter : 19mm | 0.74″
1 x Bushing | 5452233
Width : 15.5mm | 0.61″
Inner Diameter : 16.5mm | 0.64″
Outer Diameter : 26mm | 1.02″

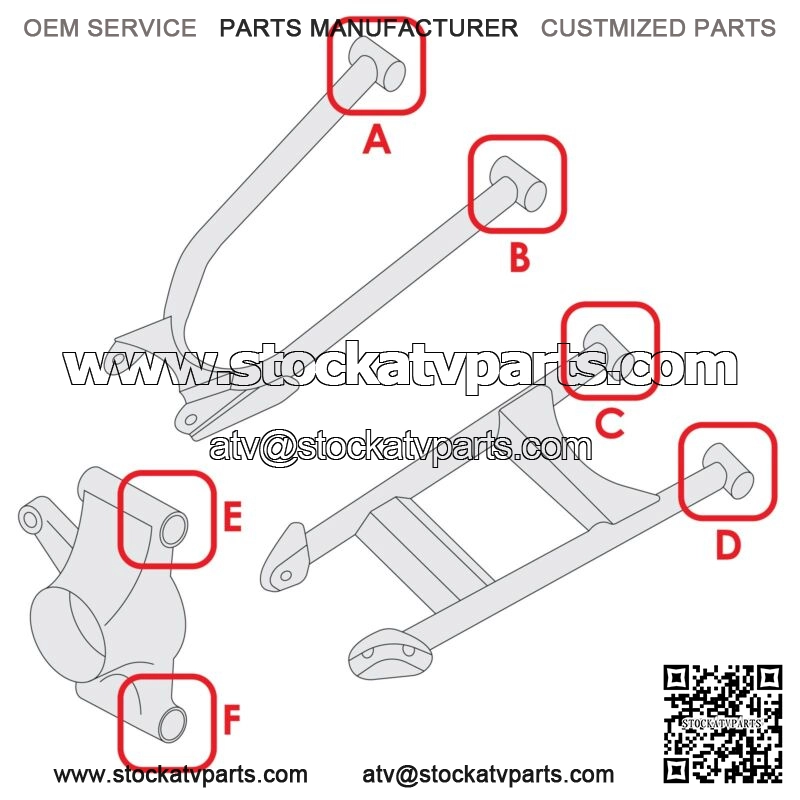

Note : Installs On Location ( F ) In Second Picture
Rear Wheel Bearing Left Carrier Part Number : 5140866Rear Wheel Bearing Right Carrier Part Number : 5140866Rear Lower Left A Arm Part Number : 1022802-458Rear Lower Right A Arm Part Number : 1022803-458
**
