Water Pump Mechanical Seal Kit for Suzuki GSX-S750 GSXS750 GSX-S750Z 2015 – 2022

SKU SB.00242 17470-02F10 17470-02F11, 17418-33400 17418-33401 / 17435-33400, 17400-35F30 17400-35F31, 17461-48G00 17461-48G00-000 Category Tag
Spread the love

Premium Quality Replacement Part
Water Pump Mechanical Seal w/ Oil Seal, Gasket and O-Rings
For Suzuki Models:GSX-S750 2015-2022GSX-S750Z 2016-2022
Order Includes:
1x

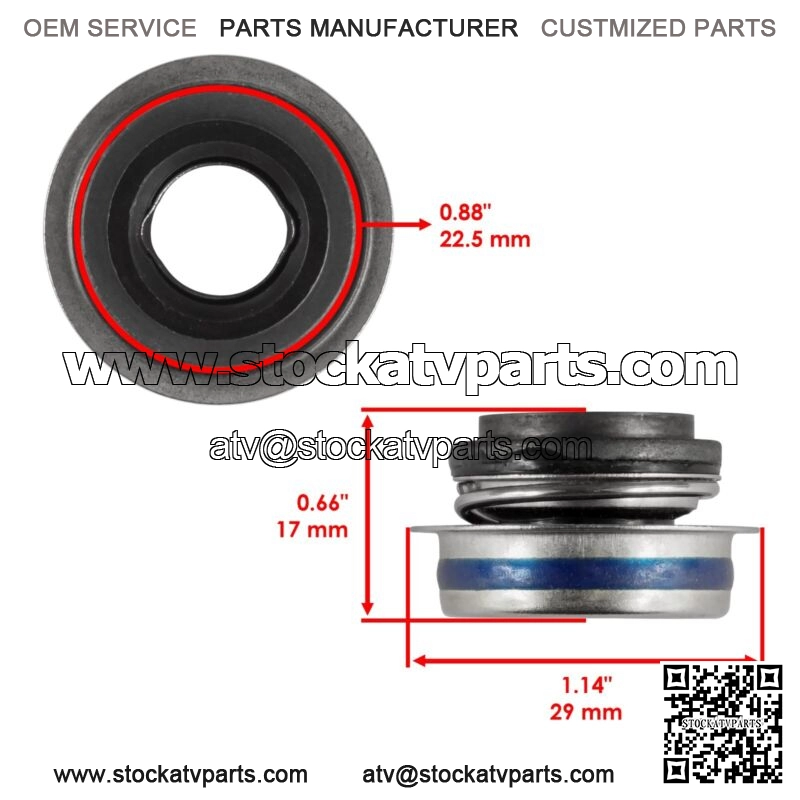

Water Pump Mechanical Seal: 17470-02F10, 17470-02F11Diameter : 22.5mm | 0.88″
Height : 17mm | 0.66″
Length : 29mm | 1.14″
1x

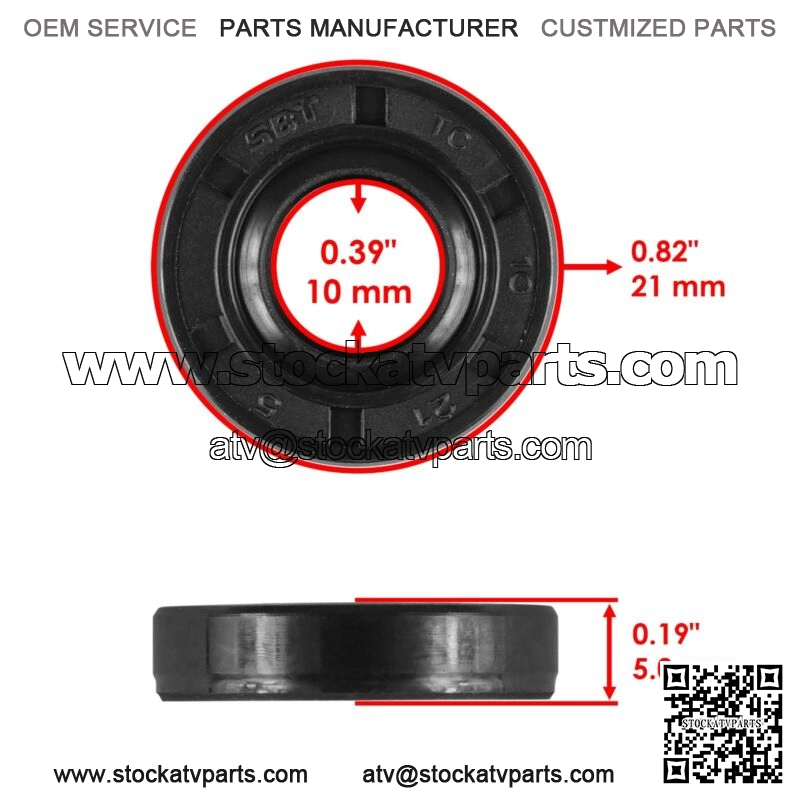

Oil Seal: 17461-48G00, 17461-48G00-000Inner Diameter : 10mm | 0.39″
Outer Diameter : 21mm | 0.82″
Width : 5.0mm | 0.19″
1x

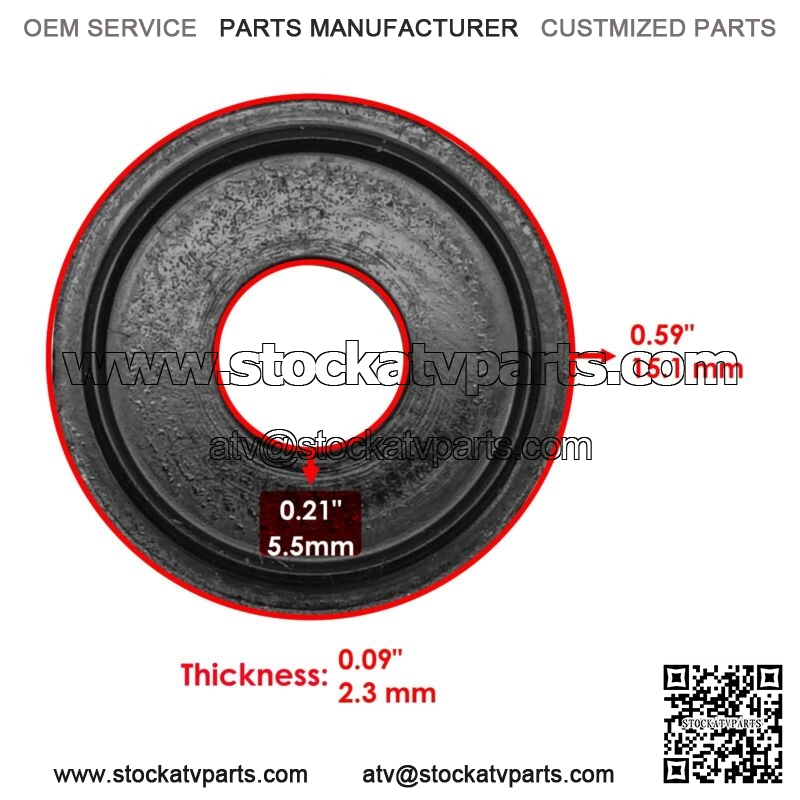

Impeller Gasket | 09168-06025, 09168-06016Inner Diameter : 6mmOuter Diameter : 15mmWidth : 2.2mm
2x
O-Ring | 17418-33400, 17418-33401, 17435-33400
**
