Product: Wet Clutch Drum Housing w/Bearing & Seal for Yamaha Grizzly 660 YFM660 2002-2006

PREMIUM REPLACEMENT PART
We strongly suggest comparing the posted picture to your faulty unit!
For Yamaha Models:
GRIZZLY 660 YFM660F 2002-2004GRIZZLY 660 YFM660FA 4X4 2005-2008GRIZZLY 660 YFM660FAH HARDWOODS HUNTER EDITION 2006GRIZZLY 660 YFM660FAHD 4×4 DUCKS UNLIMITED EDITION 2006 GRIZZLY 660 YFM660FH HUNTER EDITION 2002GRIZZLY 660 YFM660FHW WETLANDS HUNTER EDITION 2003-2005

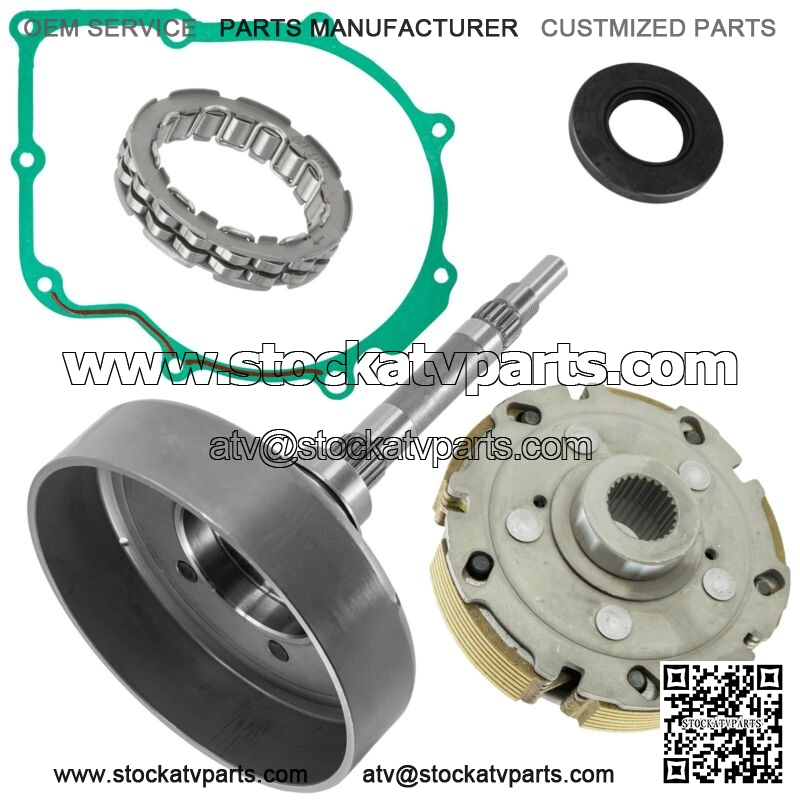

Order Includes:
1 x Oil Seal |
93102-35004-00 2MB-E511B-00-00
1 x Centrifugal Drum Housing |
5KM-16611-10-00 5KM-16611-00-00
1 x Clutch Hub One Way Bearing |
4SH-16664-00-00
1 x Centrifugal Wet Clutch |
5KM-16620-00-00
1 x Wet Clutch Gasket |
5KM-15463-00-00
Dimensions & Measurements :
Oil Seal
Inner Diameter :
32.7mm | 1.28″
Outer Diameter :
66mm | 2.59″
Width :
8mm | 0.31″

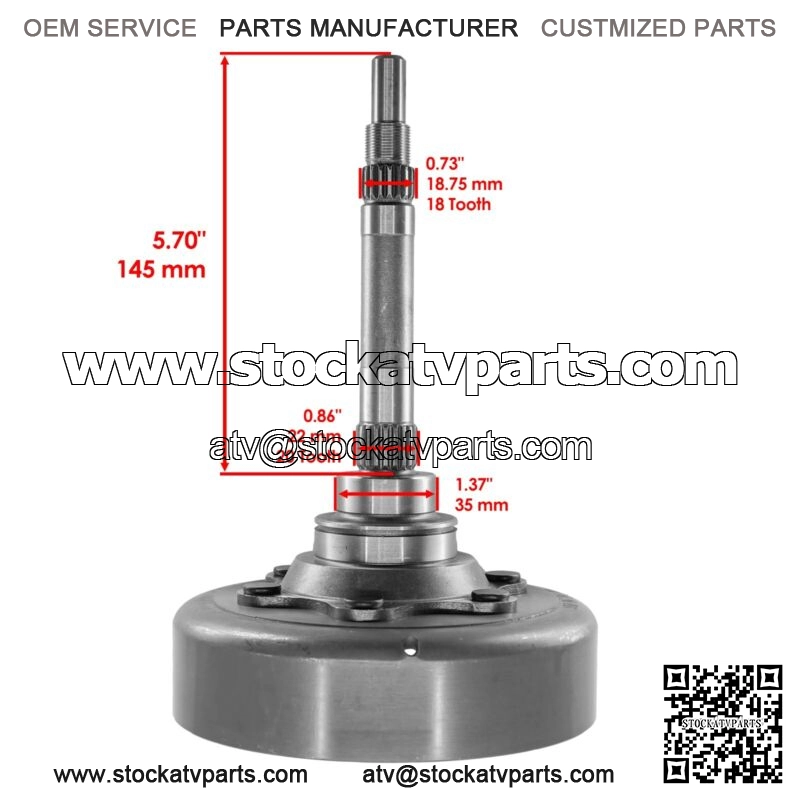

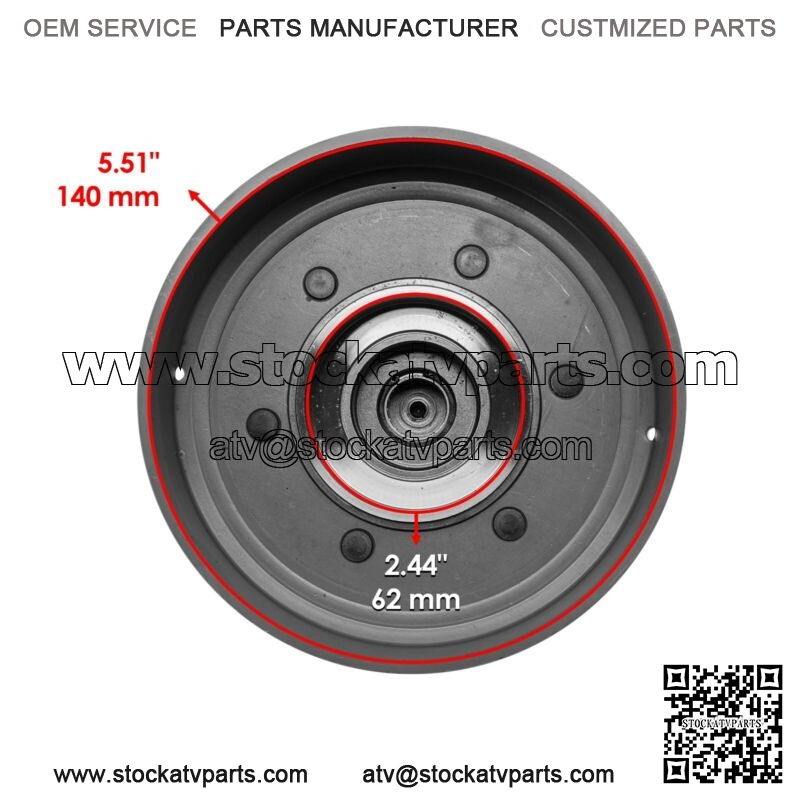

Centrifugal Drum Housing
Inner Diameter :
62mm | 2.44″
Outer Diameter :
140mm | 5.51″
Height :
145mm | 5.70″
Length :
35mm | 1.37″

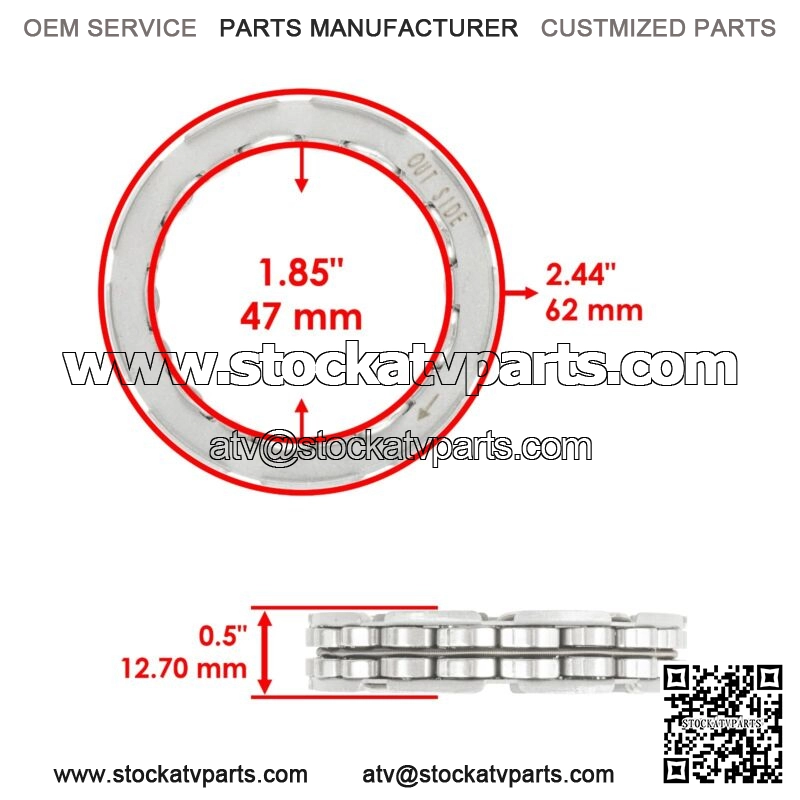

Clutch Hub One Way Bearing
Inner Diameter :
47mm | 1.85″
Outer Diameter :
62mm | 2.44″
Width :
12.70mm | 0.5″
Centrifugal Wet Clutch
Inner Diameter :
26mm | 1.02″
Outer Diameter :
138.2mm | 5.44″
Width :
52mm | 2.04″
